Space Cubicles

Description

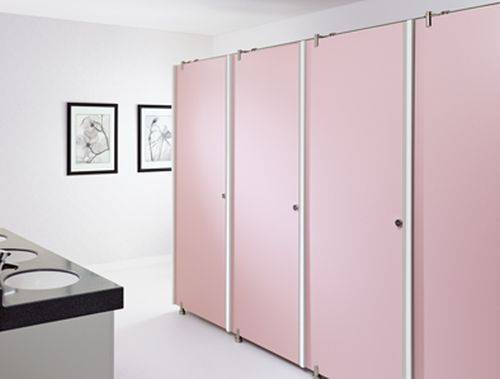

Frameless cubicles with no pilasters. Available in four material options.

General information

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Cubicles

Specification data - Panel cubicle systems

Product Reference

Space ColourCoat

Polyurethane coated MDF panels.

Space HPL

High pressure laminate covered chipboard panels.

Space MFC

Melamine faced chipboard panels.

Space SGL

Solid grade laminate panels.

Size

-

Height

Standard height 2150 mm from FFL to top of headrail.

Colour

-

Panels

Consult Venesta Washroom Systems for details of colour range.

Doors

Consult Venesta Washroom Systems for details of colour range.

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

General:

  • Pedestals: Stainless steel with brushed finish. ± 8 mm adjustment.
  • Floor clearance 50 mm.
  • Partition to wall fixings: Aluminium gravity channel with brushed stainless steel effect.
  • Headrail: Tubular stainless steel fixed above panels to accommodate door pivots and clamp fixings.

Ironmongery:

  • Hinges: Brushed stainless steel top and bottom door pivot.
  • Bolt: Lever-operated indicator bolt with circular face plate and emergency release. Brushed stainless steel.

Product Options

Product reference:

– Space ColourCoat:

  • Board/ panel: 720 kg/m³ MDF, sprayed with one coat of primer and finished with pigmented polyurethane lacquer.
  • Thickness: Partitions, 18 mm.
  • Edge treatment: As main board.
  • Height (maximum): To 1500 mm deep, 2765 mm; 1501–1800 mm deep, 2450 mm.
  • Depth (maximum): 1800 mm.

– Space HPL:

  • Board/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).
  • Thickness: Partitions, 18 mm.
  • Edge treatment: 1 mm thick matching PVC.
  • Height (maximum): 2620 mm from FFL to top of headrail.
  • Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Space MFC:

  • Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.
  • Thickness: Partitions, 18 mm.
  • Edge treatment: 1 mm thick matching PVC.
  • Height (maximum): 2820 mm.
  • Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Space SGL:

  • Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.
  • Thickness: 13 mm.
  • Edge treatment: All edges radiused and polished (black).
  • Height (maximum): 2600 mm from FFL to top of headrail.
  • Depth (maximum): 2000 mm from face of back wall or rear ducting.
