Cycle shelter.

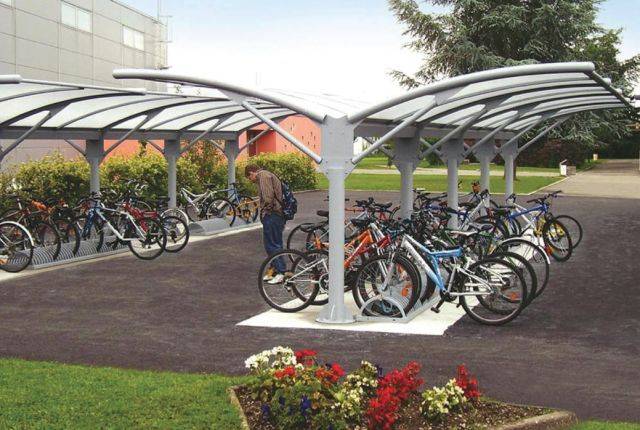

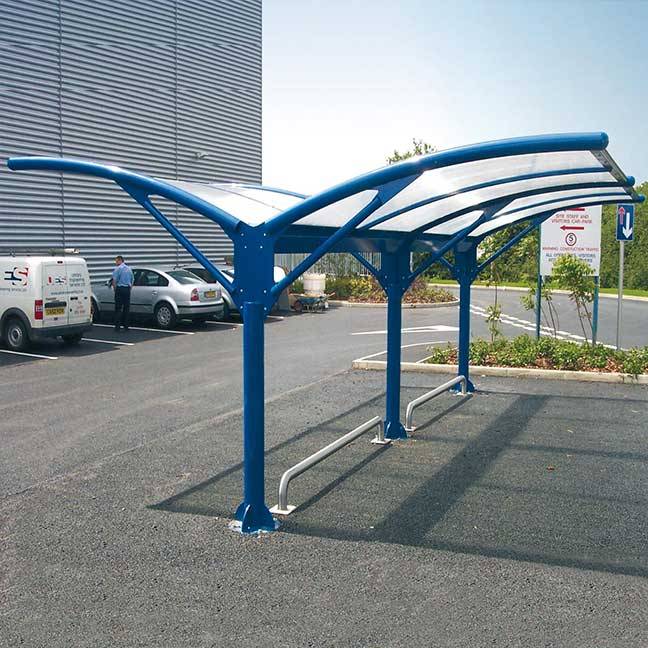

Cycle shelter, from Metalco's Stile collection.
This product is constructed from a steel modular structure with tubular steel supports and is reinforced by 10 mm steel plates and a cover in thick polycarbonate sheet. The structure can be single or double sided and is fixed to the ground through a galvanised steel plate with zinced steel anchors (on request), or alternatively with bolts (not supplied).
The structure is supported with a security tension rod manufactured from drawn steel. Rainwater is collected in the gutter profile (positioned at the back of the single-sided structure, and in the middle of the double-sided structure), and carried through the channels directly into the supports.
Material | Frame: Powder-coated steel Top: Thick polycarbonate sheet |
Uniclass 2015 | |
CAWS | B91/340 Cycle shelter |
Product Reference | Space Bici |
Colour/ Finish | Various available. Consult manufacturer and insert requirements. |
Type | Double sided2058 x 4854 x 3000 mm (h x w x d). Single sided2058 x 2750 x 3000 mm (h x w x d). |
Fixings | AnchorsBolts |
Standard product features | Material:
|
