Application

For wall and floor applications above ground level.

Can be used in conjunction with:

  • SovDrain Sealing Rope – for joint sealing.
  • SovDrain Sealing Tape – for joint sealing.
  • SovDrain Corner Strip – for floor and wall juncture sealing.

Description

A robust, low profile drainage membrane specifically that minimises wall and floor level changes whilst still providing an effective damp proof membrane with air gap beneath


Features and benefits:

  • Allows for a fast track application of a floor membrane.
  • Typically finished with either a SBR Bonding Agent modified screed (minimum 65 mm) or a floating floor.
  • Quick application to walls and floors.
  • Strong and pliable material.
  • Low stud membrane profile, where space is at a premium.
  • Cleaner with less disruption during installation.
  • Easily repaired if damaged during installation.
  • Minimal wet trades required (Only final skimming of plasterboards).
  • Highly resistant to degradation by all common chemicals.
  • Resistant to biological attack and does not sustain microbial development.
  • Resistant to root penetration.

General information

Material

High density polyethylene (HDPE)

Uniclass

Pr_25_57_51_74 Rubber studded sheetsPrimary

CAWS

J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane

J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane

Product range

SovDrain System

Specification data - Rubber studded sheets

Material

-

Studded layer

High-density polyethylene (HDPE).

Stud height

2.5 mm.

Sheet thickness

0.5 mm.

Colour

Translucent.

Performance characteristics

-

Fire performance

To DIN 4102, B2.

Roll size

1 x10 m.

2 x 20 m.

Environmental performance

Highly resistant to degradation by all common chemicals.

Guidance for specification option:

It is resistant to biological attack and does not sustain microbial development. It is compatible with drinking water.

Root protection

Resistant to root penetration.

Literature

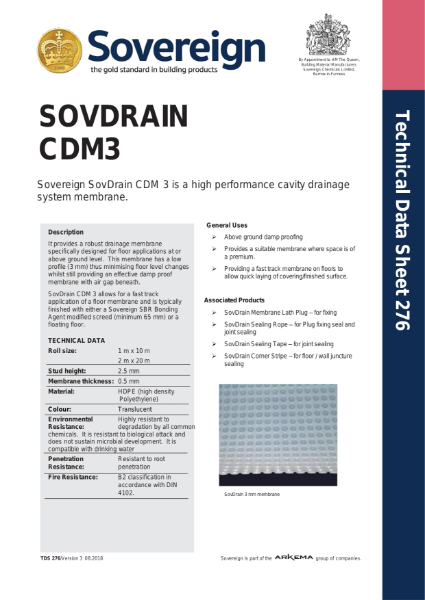

CDM3 TDS
