Soundis Dry Screed Panel ULTRA Span Board - Floor Panel

Verified by manufacturer 2 months ago

Dry ScreedPanel ULTRA 18 – 18 mm

Soundis Variant:
Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • Acclaim Accreditation

    Certificate type

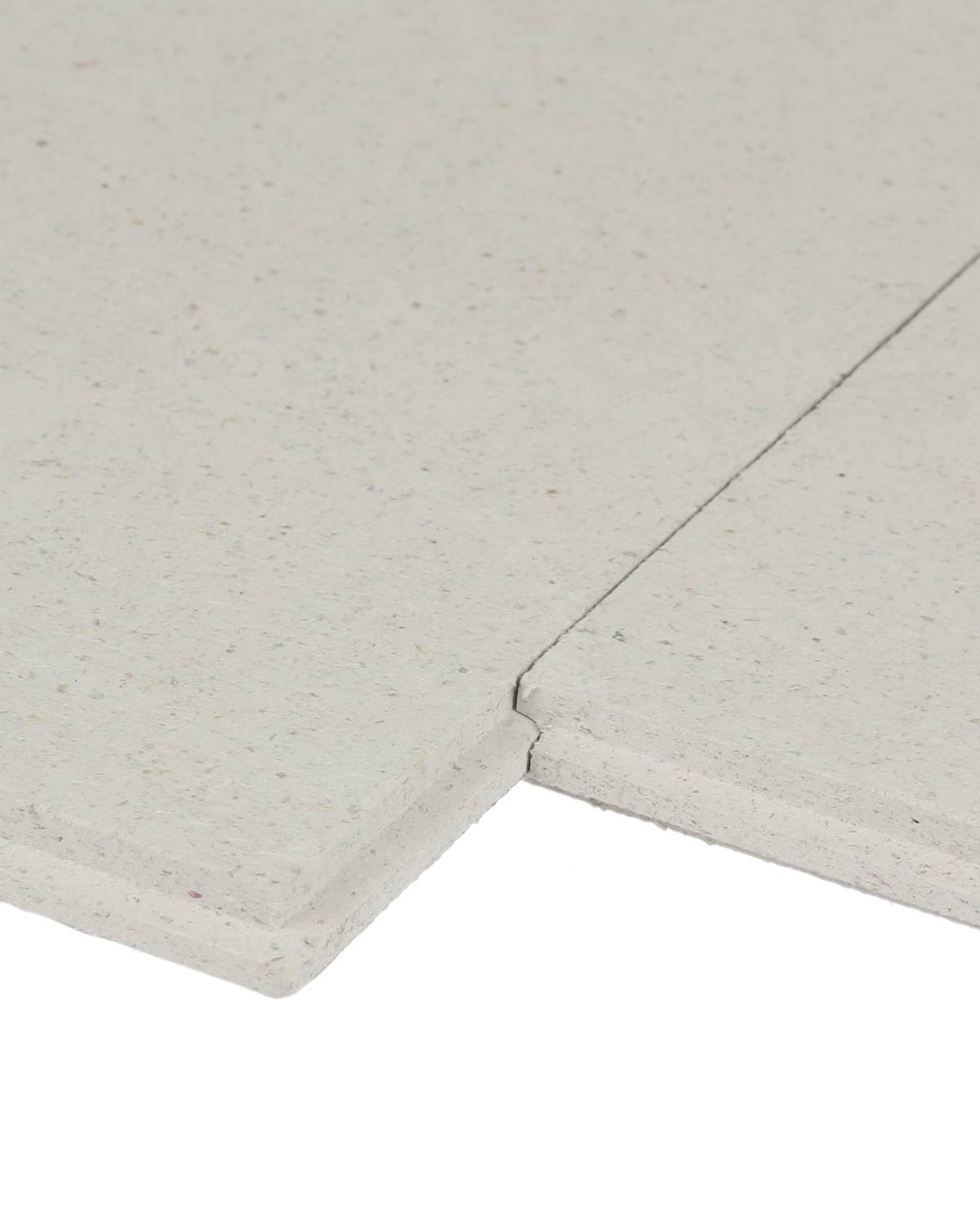

Interlocking reinforced cement fibre floor panel.

Jump to:
+44 (0)330 056 3195 Website

Application

Interlocking reinforced cement fibre floor panel.


Due to its high density and inherent strength, is suitable for use as an overlay and for spanning between bearers such as joists and battens for raised floor applications. It can also be used with an acoustic cradle and batten system, incorporating UFH where necessary.

Description

Highly conductive structural floorboard. The board's rapid heat transfer characteristics enables a underfloor heating system to operate more efficiently, providing a long term saving in running costs.


Features and benefits:

  • High acoustic and fire performance.
  • Low thermal resistance – good for UFH applications.
  • High density.
  • Tongue and groove edge detail.
  • Impervious to water.
  • Suitable for concrete, steel and timber floors.
  • Directly accepts all types of floor coverings, including tiles.


For more dteails contact manufacturer

General information

Color

Grey

Finish

Smooth

Material

Gypsum

Shape

Rectangle

Length

1200 mm

Width

600 mm

Height

18 mm

25 mm

28 mm

30 mm

Uniclass

Pr_25_71_35_30 Fibre-reinforced gypsum floor boardsPrimary

CAWS

K11/295 Floating floor system

K11/60 Board

K11/115 Battened plywood floating floor

K20/20 Battened timber board floating floor

K11/275 Acoustic separating floor system

K20/150 Battened timber board floating floor

Specification data - Fibre-reinforced gypsum floor boards

Thickness

18 mm.

Edges

Tongued and grooved.

Weight

26.1 kg/m².

Guidance for specification option:

18.79 kg/board.

Flanking strip

Soundis thermoedge perimeter edge strips.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

CHAS

CHAS

CHAS

Constructionline Gold

Constructionline Gold

Constructionline Gold Member

smas WORKSAFE

smas WORKSAFE

SMAS

 Acclaim Accreditation

Acclaim Accreditation

SSIP Acclaim

Literature

Soundis-Dry-ScreedPanel-ULTRA-Datasheet

Soundis-Dry-ScreedPanel-ULTRA-Datasheet

Case studies

Soundis Acoustic Overlay Flooring - Dry Screed Board 33mm at Chessington World of Adventures, London

Soundis Acoustic Overlay Flooring - Dry Screed Board 33mm at Chessington World of Adventures, London

Soundis Dry Screed Acoustic Flooring at 83 East Street, Surrey

Soundis Dry Screed Acoustic Flooring at 83 East Street, Surrey

Soundis Dry Screed Acoustic Flooring at Premier Inn, Lewisham, London

Soundis Dry Screed Acoustic Flooring at Premier Inn, Lewisham, London
