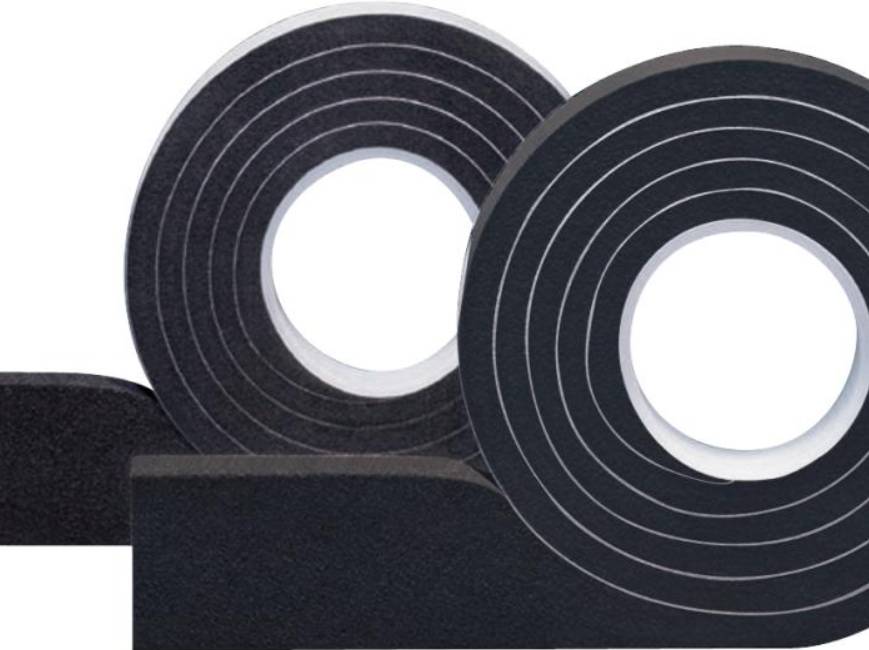

Soudaband 600 BG1 - Sealing Tape
Verified by manufacturer 22 days ago
Self adhesive pre-compressed sealing tape.
Application
- Sealing of (connection) joints around windows and doors.
- Permanently elastic sealing of connection and expansion joints in masonry, prefab elements, concrete, sandwich panels, roof constructions, etc.
- Sealing between metal components.
- Acoustic insulation of joints.
- Connections in timber-frame houses.
- Connections in prefab houses, container units and caravans.
- Sealing of connection joints on corrugated and profile sheets.
Description
Soudaband 600 BG1 is an impregnated, pre-compressed joint sealing tape with one adhesive side, suitable for various movement joints and (window) connections which meets class BG1 (acc. to DIN 18542) and is driving raintight up to at least 600 Pa. It is vapor permeable, UV-resistant, permanently elastic and has excellent thermal and acoustic properties. Soudaband 600 BG1 can be installed directly exposed to the weather, requires no further finishing. Soudaband 600 BG1 can be used as a primary sealing barrier.
Features and benefits:
- Class BG1 according to DIN 18542/2009.
- Driving rain tight: 600 Pa.
- Vapour diffusion permeable.
- Seals against wind, dust, driving rain (depending on compression rate).
- Permanently elastic with long term life expectancy.
- Adapts to imperfections and joint movements.
- UV-resistant.
- Building material class (fire resistant): B1 according to DIN 4102.
- Thermal and acoustic insulation.
- EC-1R PLUS label: very low emission.
General information
Color | Black |
Material | Polyurethane (PUR) |
Shape | Other Guidance for specification option: Roll. |
Uniclass | |
CAWS | H43/160 Profiled plastics sheet H31/160 Profiled plastics sheet H43/120 Metal insulating sandwich panel H43/10 Metal insulating sandwich panel H31/10 Metal H31/120 Metal L20/80 Sealant joints L20/820 Sealant joints L10/810 Sealant joints H11/110 Curtain walling H11/772 Curtain walling joint assembly sealants L10/75 Sealant joints |
Specification data - Polymer-based adhesive sealant tapes
Material | Impregnated open cell polyurethane foam. |
Bond | Self-adhesive backing. |
Fire performance | |
Reaction to fire | To DIN 4102, B1. |
Air permeability | Air and water vapour tight. |
Size | 30 mm wide. |
Colour | Black. |
Classification | To DIN 18542:2020, BG1. |
Air permeability | To EN 12114, a ≤0.1 m³/[h.m.(daPa)n]. |
WaterImpermeability | To EN 1027, ≥600 Pa. |
Thermal conductivity (to EN 12667) | To EN 12667, ≤0.046 W/m.K. |
Water vapour permeability | To EN ISO 12572, ≤0.5 m at 30 mm width. |
Water vapour diffusion resistance | To EN ISO 12572, ≤100 µ. |
Temperature resistance | To DIN 18542, -20°C to 80°C. |
Application temperature | -1°C to 35°C. |
Sustainability data
Country of product manufacture | France |
Material | Polyurethane (PUR) |
Manufacturing plant location |
Literature

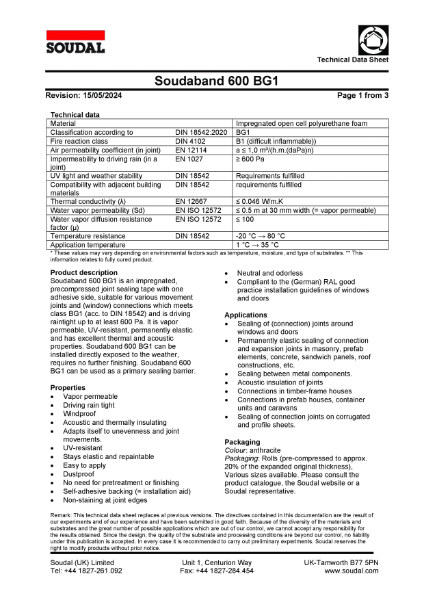

Technical Data Sheet - Soudaband 600 BG1
Soudaband Pre -Compressed Tape Brochure
