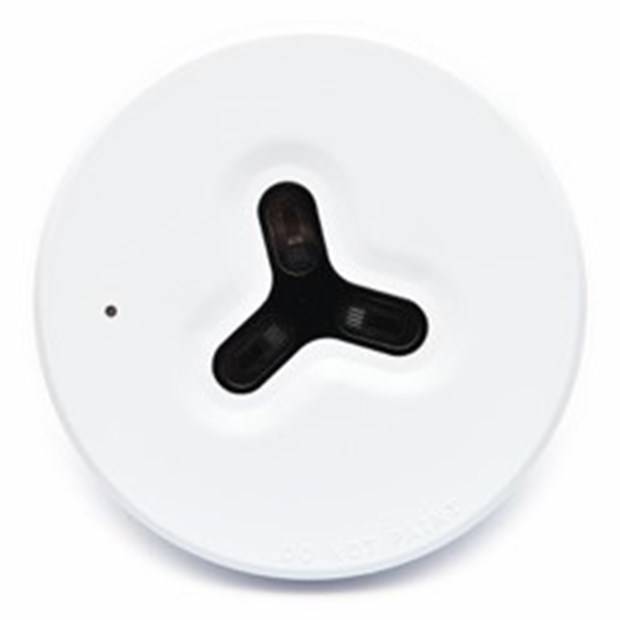

Soteria® Dimension Optical Smoke Detector - Smoke Detector
Verified by manufacturer 2 days ago
Certificate of constancy of performance
Certificate type
Certificate of constancy of performance
Certificate type
LPCB Certification
Certificate type
Flush mounted optical smoke detector.
Application
Flush mounted on ceilings.
Description
The design of the Soteria® Dimension Optical Detector differs from standard fire detectors, having no chamber and being flush mounted.
Features and benefits:
- Low profile design.
- Utilises digital CoreProtocol communications.
- Compatible with Discovery and XP95 systems*.
- Integrated switchable isolator as standard.
- 8-way DIL switch addressing.
- Drift compensation.
- FasTest® for quicker testing.
- Tricoloured LED status indicator.
- Polycarbonate moulding for colour stability and strength.
- Comprehensively tested to exceed EN 54-7 standard.
- Locking mechanism (grub screw).
- *Note: Not all features may be available when Soteria devices are connected to an XP95 or Discovery fire control panel.
General information
Color | White |
Finish | Gloss |
Material | Polycarbonate Stainless steel |
Shape | Circle |
Length | 140 mm |
Width | 140 mm |
Height | 38.2 mm Guidance for specification option: Detector. 71 mm Guidance for specification option: Detector with backbox. |
Warranty description | Ten year |
Uniclass | |
CAWS | W90/328 Point smoke detectors |
SKU Code | FL5100-600APO |
Specification data - Point smoke detectors
Classification data | |
Standard | To EN 54-7 and EN 54-17. |
Third-party certification | CPR, LPCB, VdS, BOSEC. |
Detector type | Optical. |
Power source | Loop. |
Colour | White. |
Weight | 146 g. |
Materials | Polycarbonate housing with nickel plated stainless steel terminals. |
Diameter | 140 mm. |
Depth | 38.2 mm. |
Detector | Photo-electric light scattering. Manufacturer guidanceDetection principle. |
Ingress protection (IP) rating | IP55. Guidance for specification option: Rating not EN 54 approved. |
Voltage | 17–35 V d.c. Manufacturer guidanceSupply voltage (Vmin-Vmax). |
Indicator colour | Tricoloured LED status indicator. Guidance for specification option: Alarm: Continuous Red. Fault: Flashing Yellow. Isolated: Continuous Yellow. Manufacturer guidanceStatus indicator. |
Operating temperature | -20°C to +55°C. |
RelativeHumidity | 0% to 95% (no condensation or icing). |
Alarm | Alarm level analogue value: 55. |
Accessories | Not required. FL5000-200APO Soteria Dimension Backbox. Guidance for specification option: Depth with backbox: 71 mm. Weight with backbox: 273 g. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Polycarbonate Stainless steel |
Recyclability | WEEE Product |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
Certificate of constancy of performance
2531-CPR-CSP10950
Certificate of constancy of performance
8504-UKCA-CPR-UKCSP10195
LPCB Certification
LPCB 010bk Issue 05
