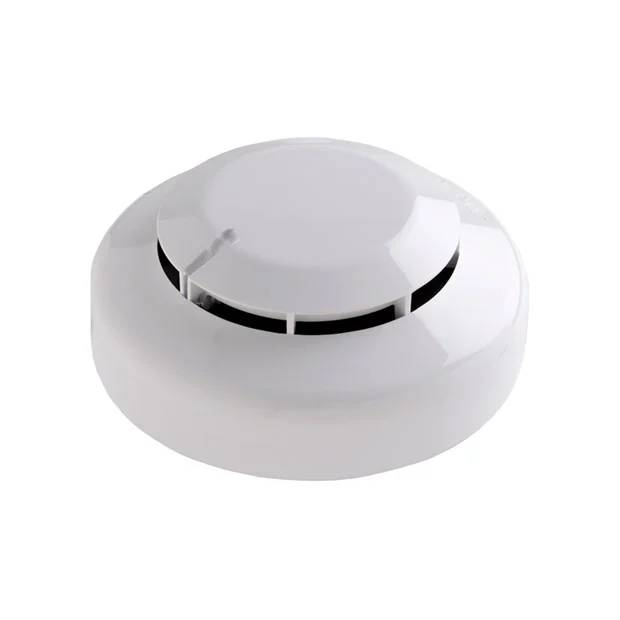

Soteria® Optical Smoke Detector - Smoke Detector
Verified by manufacturer 2 days ago
Certificate of constancy of performance
Certificate type
Certificate of constancy of performance
Certificate type
LPCB Certification
Certificate type
Optical smoke detector.
Application
- Bedrooms.
- Cafes.
- Escape routes.
- Hotels.
- Restaurants.
- Retail.
- B&Bs/ guest houses.
- Offices.
- University campuses.
Description
The Soteria® Optical Smoke Detector uses new optical sensing technology, PureLight®, to detect smoke particles entering the chamber. PureLight marks a new stage in the development of Apollo optical technology and aims to reduce the possibility of false alarms whilst increasing the reliability of detection of a real fire.
Features and benefits:
- Available with integrated switchable isolator.
- Drift compensation.
- Tricoloured LED status indicator.
- FasTest® for quicker testing of detectors.
- Universal XPERT card addressing.
- Locking mechanism (grub screw).
General information
Color | White |
Finish | Gloss |
Material | Polycarbonate Stainless steel |
Shape | Circle |
Length | 100 mm |
Width | 100 mm |
Height | 36 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | W90/328 Point smoke detectors |
SKU Code | SA5100-600APO |
Specification data - Point smoke detectors
Classification data | |
Standard | To EN 54-7 and EN 54-17. |
Third-party certification | SBSC, BOSEC, FG, LPCB, VdS, CPR. |
Detector type | Optical. |
Power source | Loop powered. |
Colour | White. |
Weight | 96 g. |
Materials | Polycarbonate and nickel plated stainless steel. |
Diameter | 100 mm. |
Depth | 36 mm. |
Detector | Photo-electric light scattering. |
Ingress protection (IP) rating | IP44. |
Voltage | 17–35 V d.c. Manufacturer guidanceSupply voltage (Vmin–Vmax). |
Indicator colour | Tricoloured LED status indicator. Guidance for specification option: Alarm: Red. Fault: Flashing yellow. Isolate: Yellow. Poll: Green. |
Operating temperature | -40 to +70°C. |
RelativeHumidity | 0% to 95% (no condensation or icing). |
Alarm | Alarm level analogue value: 55. |
Accessories | Not required. XPERT 8 Base. |
Sustainability data
Material | Polycarbonate Stainless steel |
Product certifications
Certificate of constancy of performance
2531-CPR-CSP10983
Certificate of constancy of performance
8504-UKCA-CPR-UKCSP10223
LPCB Certification
LPBC 010bc Issue 09
Literature
Soteria Optical Smoke Detector
