Sopro DM 610 Drainage Mortar

Application

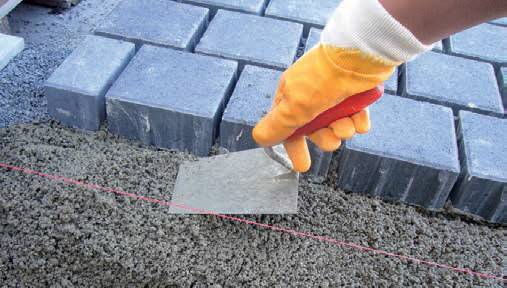

Used to lay natural stone and concrete tiles as well as natural stone and concrete paving units outdoors.

Description

A trass cement-bound premixed dry mortar used as a pervious bedding mortar to support segmental pavements. The specially graded material, with up to 8 mm aggregate size, produces a highly pervious mortar bed. This provides reliable protection against water-induced damage, for example; microstructural failure due to volume increase of freezing water. It exhibits very good workability and is suitable for normal loadings.


Features and benefits:

  • Very high water permeability.
  • Prevents frost damage.
  • For bonded construction, upwards of 20 mm coat thickness for direct application to substrate.
  • For indoor and outdoor use.
  • Walkable: After approximately 24 hours.
  • Low-chromate to Regulation (EC) No 1907/2006, Annex XVII.

General information

Color

Grey

Uniclass 2015

Pr_20_31_53_11 Cement-gauged mortarsPrimary

CAWS

M40/10 Natural stone covering to

M40/115 Natural stone covering to

Product range

Streetscape Products

Specification data - Cement-gauged mortars Enhanced data

Colour

Grey.

Reaction to fire classification

Class A1.

CoverageArea

16 kg/m² per cm coat thickness (approximately).

Compressive strength - 28 days

25 N/mm² (approximately).

Flexural strength

Tensile

4 N/mm² (approximately).

After 28 days.

Loading

After approximately seven days.
