Sopravap Stick Alu S 16

Third party certifications:

QA Certificate
Certificate type

Styrene-butadiene-styrene (SBS) modified bitumen self-adhesive vapour control layer membrane with composite aluminium reinforcement.

Jump to:

Application

For use as a self-adhesive vapour control layer for steel, timber and concrete decks.

Roll sizes of 14 x 1.08 m or 20 x 1.08 m available - consult manufacturer for details.

Description

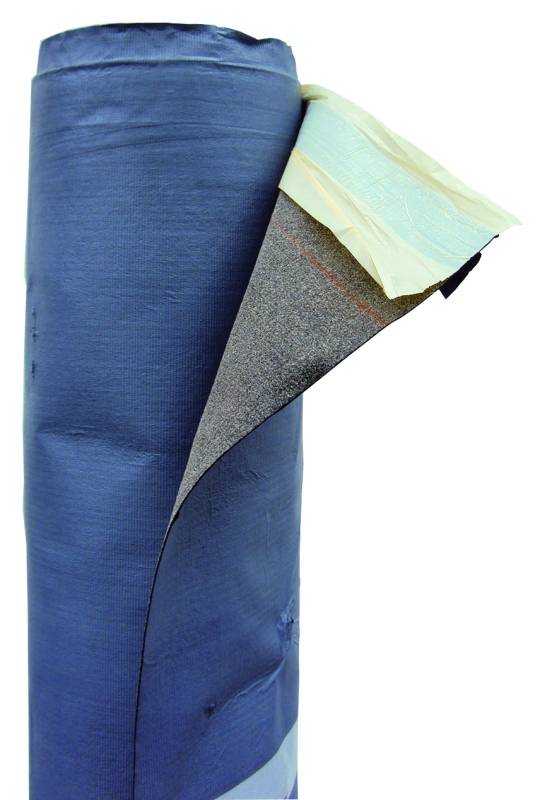

A self-adhesive styrene-butadiene-styrene (SBS) modified bitumen membrane with an aluminium foil and non-woven polyester reinforcement. The upper surface has a sand finish and the lower surface is protected by a silicone release film.

The substrate should be primed with Elastocol 503 or Elastocol 600 - consult manufacturer for information.

Features and benefits:

Self-adhesive.

Cold applied.

Flame-free application.

Laid directly on to the deck.

CE marked to BS EN 13970.

Applications:

For use as a self-adhesive vapour control layer for steel, timber and concrete decks.

Roll sizes of 14 x 1.08 m or 20 x 1.08 m available - consult manufacturer for details.

General information

Finish	Upper side: Sand Lower side: Silicone release film
Material	SBS (styrene-butadiene-styrene) modified bitumen with composite glass grid/ aluminium reinforcement
Uniclass 2015	Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS	J41/10 Built-up reinforced bitumen membrane warm deck roof covering J41/12 Built-up reinforced bitumen membrane cold deck roof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering J41/395 Air and vapour control layer

Specification data - Reinforced bitumen roofing sheets

Product Reference	Sopravap Stick Alu S 16

Standard product features

Material:

SBS (styrene-butadiene-styrene) modified bitumen with composite glass grid/ aluminium reinforcement.

Finish:

Upper side: Sand.

Lower side: Silicone release film.

Thickness:

1.6 mm (±5%).

Technical properties:

Reaction to fire: Class E.

Watertightness: Conforms.

Tensile force (to BS EN 12311-1): 900 N/ 50 mm.

Resistance to impact: 150 mm.

Shear resistance of joints: ≥500 N/ 50 mm.

Elongation at maximum tensile force (to BS EN 12311-1): 3%.

Resistance to tearing (nail shank, to BS EN 12310-1): 200 N.

Flexibility at low temperature (to BS EN 1109): -20°C.

Flow resistance at elevated temperature (to BS EN 1110): 100°C.

Dangerous substances: Complies (does not contain asbestos or tar constituents).
