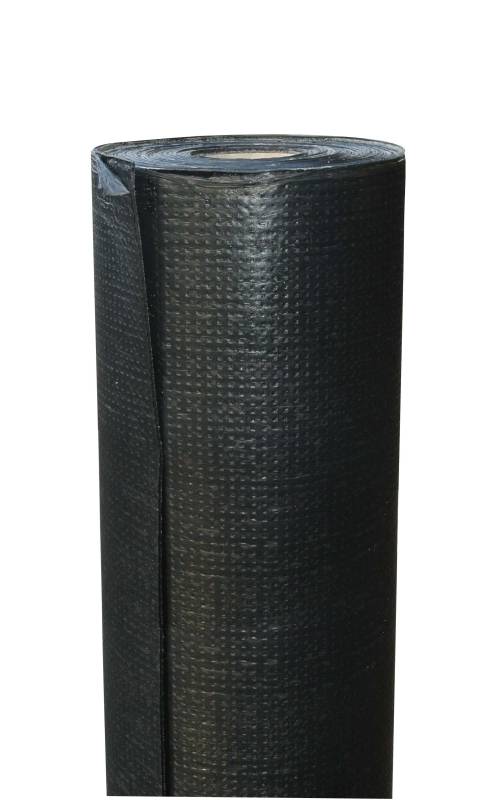

Sopravap Alu KSD

Sopravap Alu KSD

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Soprema UK

Styrene-butadiene-styrene (SBS) modified bitumen self-adhesive vapour control layer membrane with composite polyester reinforcement.

Jump to:
+44 (0)330 058 0668 www.soprema.co.uk
Application

For metal and timber deck applications with high moisture production.

Description

Membrane composed of styrene-butadiene-styrene (SBS) modified bitumen with a composite polyester reinforcement. The upper surface has a composite aluminium facing and the lower surface is protected by a silicone release film.

The substrate should be primed with Elastocol 503 or Elastocol 600 - consult manufacturer for information.

Features and benefits:

  • High vapour resistance.
  • Cold applied.
  • CE marked to BS EN 13970.

Applications:

For metal and timber deck applications with high moisture production.

General information

Finish

Upper side: Composite aluminium

Lower side: Silicone release film

Material

SBS (styrene-butadiene-styrene) modified bitumen with composite aluminium reinforcement

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/12 Built-up reinforced bitumen membrane cold deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

J41/395 Air and vapour control layer

Specification data - Reinforced bitumen roofing sheets

Product Reference

Sopravap Alu KSD

Standard product features

Material:

SBS (styrene-butadiene-styrene) modified bitumen with composite aluminium reinforcement.

Finish:

  • Upper side: Composite aluminium.
  • Lower side: Silicone release film.

Colour:

Black.

Roll size (w x l):

1.08 x 20 m.

Thickness:

1.1 mm.

Technical properties:

  • Tensile force (to BS EN 12311-1): Longitudinal: 500 N/ 50 mm; transversal: 300 N/ 50 mm.
  • Elongation at maximum tensile force (to BS EN 12311-1): 2%.
  • Flexibility at low temperature (to BS EN 1109): -30°C.
  • Flow resistance at elevated temperature (to BS EN 1110): 110°C.
  • Water vapour diffusion-equivalent (to BS EN 1931): 1500 m.

Third party certifications
  • DoP: Certificate: WPBDE215
