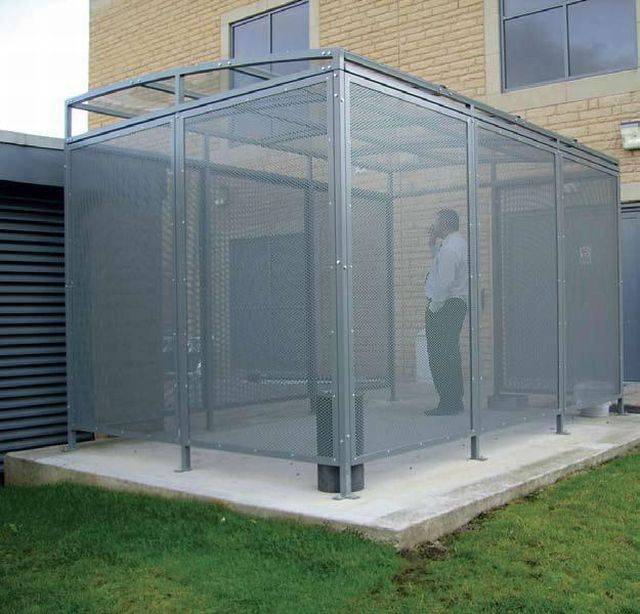

Smoking Shelter
Description

Marshalls smoking shelters provide adequate provision for smokers and meet all current legislative requirements. The standard shelter is fully compliant with regulations featuring 50% open space to allow dispersion of smoke with a free flow of fresh air. The shelter is of robust construction, featuring fracture and shatter-proof cladding options. The main framework is constructed from carbon steel in a choice of finishes. Roofing is 5 mm PET which is fire resistant and can be cleaned using chemical cleaners. Side cladding consists of 2 mm perforated steel. Optional seating and litter bins can be supplied on request.

General information

Uniclass 2015

Pr_20_65_78_77 Semi-closed sheltersPrimary

CAWS

B91/390 Smoking shelter

Specification data - Semi-closed shelters

Product Reference

Smoking Shelter

Frame finish

-

Type

Galvanized

Galvanized and powder coated

Zinc rich primer and powder coated

Colour

Not required

BS 00 A 05

Light grey.

BS 04 E 53

Poppy red.

BS 14 C 39

Brown.

BS 14 C 39

Brown.

BS 18 B 25

Dark grey.

BS 18 E 53

Blue.

RAL 9005

Black.

RAL 9016

White.

Cladding

-

Roof

PET, Clear

PET, Opal

PET, Smoked grey

Side

2 mm perforated steel

Finish

Plastisol, colour BS 00E55

White.

Plastisol, colour BS 04E53

Poppy red.

Plastisol, colour BS 08B29

Vandyke brown.

Plastisol, colour BS 10A05

Goosewing grey.

Plastisol, colour BS 12B21

Moorland green.

Plastisol, colour BS 18B25

Merlin grey.

Plastisol, colour BS 18E53

Solent blue.

Plastisol, colour RAL 6002

Heritage green.

Fixing

Base plate

Root fixing

Surface mounted

Other requirements

None

Litter bins

Seating

Standard product features

Length:

Standard shelter: 3750 mm.

Height x width:

2204/ 2405 x 2500 mm.

Frame:

Structural grade carbon steel.

Product Options

Cladding:

- Roof:

Polyethylene Terephthalate (PET), available in three finishes.

- Side:

2 mm perforated steel, plastisol finished in a range of eight colours.
