Application

  • Mental health facilities.
  • Secure units.
  • Utility companies - pumping and sub stations.
  • NHS Trusts.
  • Prison and probation facilities.
  • Education facilities.

Description

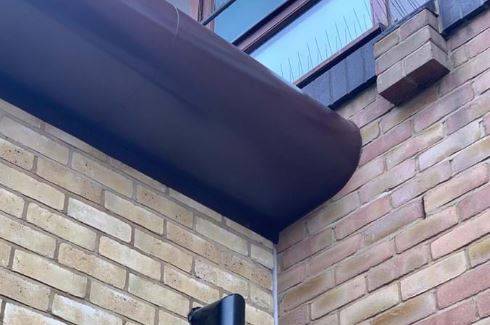

Skyline bullnose profile which offers a contemporary fascia profile appearance which can be designed to meet any project requirement.

The anti-climb product is a curved aluminium profile which can be fitted to low roof pitches and wall areas to prevent people from climbing onto them. The curved profiles are non-threatening and non-obtrusive in appearance and can be powder-coated in any RAL colour (the standard range of colours are produced with a 30% gloss finish unless otherwise stated) - consult literature for details.

Comprising of specially engineered support brackets and pre-formed curved barrier sections, each project has a bespoke design that can be fitted over virtually any gutter profile, or can include an integrated guttering system built in.

Manufactured using lightweight, durable and non-corroding aluminium. It is also entirely weatherproof with a life expectancy of 40 years in rural and suburban areas, and 25 years in industrial or marine areas. The product is 100% recyclable.

Features and benefits:

  • Colour co-ordinated.
  • Professionally installed.
  • Functional but not obtrusive.
  • Bespoke manufacture.
  • Any size installation.

Application:

  • Mental health facilities.
  • Secure units.
  • Utility companies - pumping and sub stations.
  • NHS Trusts.
  • Prison and probation facilities.
  • Education facilities.

General information
Specification data - Metal finishing trims
Product Reference

Skyline Anti-Climb Barrier

Colour/ Finish

Plain mill finish

RAL 1011m Brown Beige

Polyester powder-coated.

RAL 1013m Pearl White

Polyester powder-coated.

RAL 1021m Cadmium Yellow

Polyester powder-coated.

RAL 2002m Vermilion

Polyester powder-coated.

RAL 3003m Ruby Red

Polyester powder-coated.

RAL 3005m Wine Red

Polyester powder-coated.

RAL 5003m Sapphire Blue

Polyester powder-coated.

RAL 5010m Flower Blue

Polyester powder-coated.

RAL 6005m Moss Green

Polyester powder-coated.

RAL 6018m Yellow Green

Polyester powder-coated.

RAL 7005m Mouse Grey

Polyester powder-coated.

RAL 7006m Beige Grey

Polyester powder-coated.

RAL 7012m Basalt Grey

Polyester powder-coated; also available in a textured finish.

RAL 7015m Slate Grey

Polyester powder-coated; also available in a textured finish.

RAL 7016m Anthracite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7024m Graphite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7036m Platinum Grey

Polyester powder-coated.

RAL 7037m Dusty Grey

Polyester powder-coated.

RAL 7038m Agate Grey

Polyester powder-coated; also available in a textured finish.

RAL 8017m Chocolate Brown

Polyester powder-coated.

RAL 8019m Grey brown

Polyester powder-coated.

RAL 9006m Metallic Silver

Polyester powder-coated.

RAL 9006g Metallic Silver (80% Gloss)

Polyester powder-coated.

RAL 9016m White

Polyester powder-coated; also available in a textured finish.

RAL 9017m Black (60% Gloss)

Textured Black

Bespoke, RAL or BS

Polyester powder-coated. Consult literature for details and insert requirements.

Accessories

Not required

Closer pieces

Two part angles

Standard product features

Technical characteristics:

  • Material/ grade: 2.03 mm-thick aluminium manufactured from 1050 AH 14.
  • Size: 575 mm wide (supplied in 1.25 m lengths, site cut to suit).
  • Gauge: 2 mm.

Fixing:

  • Fixed via galvanized steel brackets and galvanized steel closer angle to external rafter arms all fixed to special brackets. All as per Alumasc`s standard Fixing details and Detailed fixing requirements.
  • All angles to be supplied in two pieces, successful contractor to site cut or trim and make good all angles to suit as required.
  • Installation to be carried out by an AWMS recommended installer.

Product Options

Colour/ Finish:

Polyester powder coated to BS EN 12206-1: 2004. Coating to have BBA certificate.

Literature
Similar products from Alumasc Water Management Solutions
