Application

Suitable for applications where a dry lining board with vapour resistance is required.

Description

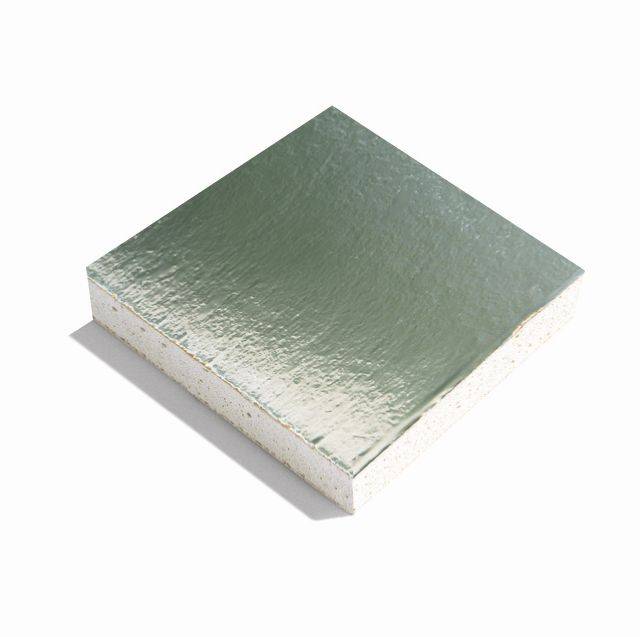

GTEC Standard Board with an additional laminated vapour control layer. The GTEC vapour board has the same physical property as the standard board, but has a silver, metallized polyester film back liner which enhances the vapour resistance of the product. GTEC Vapour can be jointed and finished with GTEC Jointing Systems. The boards must be primed with GTEC Universal Sealer prior to being decorated.

Features and benefits:

  • The board complies with BS EN 520:2004+A1:2009 type A and BS EN 14190.
  • Single-fix operation of plasterboard with a built-in vapour control layer.

Application:

Suitable for applications where a dry lining board with vapour resistance is required.

General information
Material

Aerated calcium sulfate di-hydrate, enclosed inside liners made from recycled wastepaper with bound edges. Core and papers are bonded with starch

Uniclass 2015 Vapour check gypsum plasterboards (Pr_25_71_52_94)
Specification data
Product Reference

Siniat GTEC Vapour Board

Thickness

9.5 mm

12.5 mm

15 mm

Edges

Square

Tapered

Standard product features

Colour:

Ivory on the front, and a silver, metallized polyester film back liner which enhances the vapour resistance.

Material:

Aerated calcium sulfate di-hydrate, enclosed inside liners made from recycled wastepaper with bound edges. Core and papers are bonded with starch.

Edges:

Tapered down the long edges. Edges are adhered together.

Board size/ weight:

  • 2400 x 1200 x 9.5 mm: 17.3 kg.
  • 2400 x 1200 x 12.5 mm: 23.0 kg.
  • 2400 x 1200 x 15.0 mm: 28.8 kg.

Jointing finishing and painting:

The board should be jointed and finished with GTEC Jointing Systems. Boards are suitable for gypsum finishing plasters manufactured to BS EN 13279-1:2008. The boards must be primed with GTEC Universal Sealer prior to being decorated.

Fixing:

GTEC self-drilling or GTEC high-thread screws required.

Technical characteristics:

  • Fire, acoustic and duty performance: dependent on the whole system. See Siniat Drywall Manual for Siniat system performances.
  • Reaction to fire: Euroclass B-s1, d0.
  • Moisture content: <2%.
  • Mass: 6.0 kg/m² for 9.5 mm board; 8.0 kg/m² for 12.5 mm board; 10.0 kg/m² for 15 mm board.
  • Thermal conductivity, λR: 0.19 W/m·K.
  • Thermal resistance, R: 9.5 mm: 0.050 m²K/W; 12.5 mm: 0.066 m²K/W; 15 mm: 0.079 m²K/W.
  • Water vapour resistance factor: µ = 930.
  • Water vapour resistance: 58.5 MN·s/g.

- Flexural strength (to BS EN 520):

  • 9.5 mm board: longitudinal breaking load: ≥400 N, transversal breaking load: ≥160 N.
  • 12.5 mm board: longitudinal breaking load: ≥550 N, transversal breaking load: ≥210 N.
  • 15 mm board: longitudinal breaking load: ≥650 N, transversal breaking load: ≥250 N.
