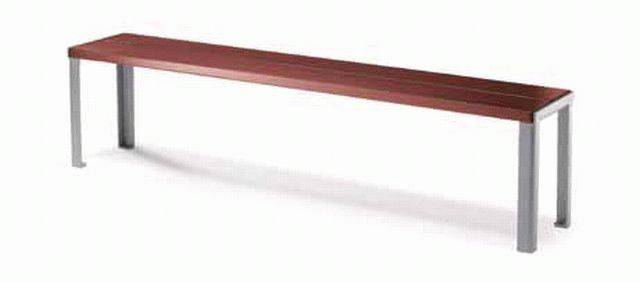

Sineu Graff Optima Bench
Description

A contemporary hardwood slatted bench, with 50 mm wide steel angle end frames and legs.

Features:

  • Frame constructed from zinc plated and polyester powder coated steel.
  • Seating slats manufactured from hardwood from renewable sources, treated with a solvent-free, mahogany-coloured protective finish.
  • Part of the Sineu Graff Optima, Outdoor Living Rooms range of seats and benches.

General information
Features

Frame constructed from zinc plated and polyester powder coated steel

Seating slats manufactured from hardwood from renewable sources, treated with a solvent-free, mahogany-coloured protective finish

Part of the Sineu Graff Optima, Outdoor Living Rooms range of seats and benches

Uniclass 2015
Pr_40_50_12_07 BenchesPrimary
CAWS

Q50/220 Benches

Q50/30 Street furniture

Specification data - Benches
Product Reference

10.3060 EM, Sineu Graff Optima Bench

Colour

RAL ___

Optional.

Sable 100 Black

Optional.

Sable 500 Green

Optional.

Sable 650 Brown

Optional.

Sable 700 Blue

Optional.

Sable 900 Grey

Standard.

Fixing

Free standing

Ground fixed

Surface mounted and secured with Type DT fixings

Surface mounted and secured with Type T fixings

Standard product features

Length:

  • 1812 mm.

Overall depth:

  • 565 mm.

Height:

  • 450 mm.

Weight:

  • 20 kg.

Product Options

Colour:

  • Frames are available in a range of high gloss RAL colours and matt textured Sable colours: RAL 1018, Zinc Yellow/ RAL 1023, Traffic Yellow/ RAL 1028, Melon Yellow/ RAL 3000, Flame Red/ RAL 3003, Ruby Red/ RAL 3009, Oxide Red/ RAL 3020, Traffic Red/ RAL 4002, Red Violet/ RAL 4003, Heather Violet/ RAL 5002, Ultramarine Blue/ RAL 5015, Sky Blue/ RAL 5019, Capri Blue/ RAL 5021, Water Blue/ RAL 5022, Night Blue/ RAL 6004, Blue Green/ RAL 6005, Moss Green/ RAL 6009, Fir Green/ RAL 6010, Grass Green/ RAL 6012, Black Green/ RAL 6018, Yellow Green/ RAL 6019, Pastel Green/ RAL 6024, Traffic Green/ RAL 6026, Opal Green/ RAL 6028, Pine Green/ RAL 7005, Mouse Grey/ RAL 7012, Basalt Grey/ RAL 7016, Anthracite Grey/ RAL 7021, Black Grey/ RAL 7024, Graphite Grey/ RAL 8001, Ochre Brown/ RAL 9006, White Aluminium/ RAL 9007, Grey Aluminium/ RAL 9017, Traffic Black/ RAL 9010, Pure White/ RAL 9016, Traffic White.

Fixing:

- Free standing:

  • Designed to be lifted in place.

- Ground (root) fixed:

  • The seat legs are designed to be situated directly into concrete.

- Surface mounting (base plate):

  • A positive bolting system should be selected by the installer based on the type and condition of the substrate, taking into account any applicable close edges and thicknesses.
  • Fixing Type DT: Bolt fixing through mounting block, which is supplied as an additional item.
  • Fixing Type T: Seat is bolted to insitu concrete.
