SikaTack® Panel-50
Application

For professional use only. Suitable for the structural bonding of SikaTack® Panel-50 is suitable for structural joints in ventilated facades and cladded interior walls between the vertically installed substructure and the facade panel that will be subjected to dynamic and static stresses andeven elevated facade temperatures. Suitable substrates are anodized and coated aluminum,glass, metal composite, high pressure laminate and ceramic materials. This product is suitable for experienced professional users only. Tests with actual substrates and conditions have to be performed to ensure adhesion and material compatibility

Can also be used on substrates with other panel types - consult manufacturer for information.

Description

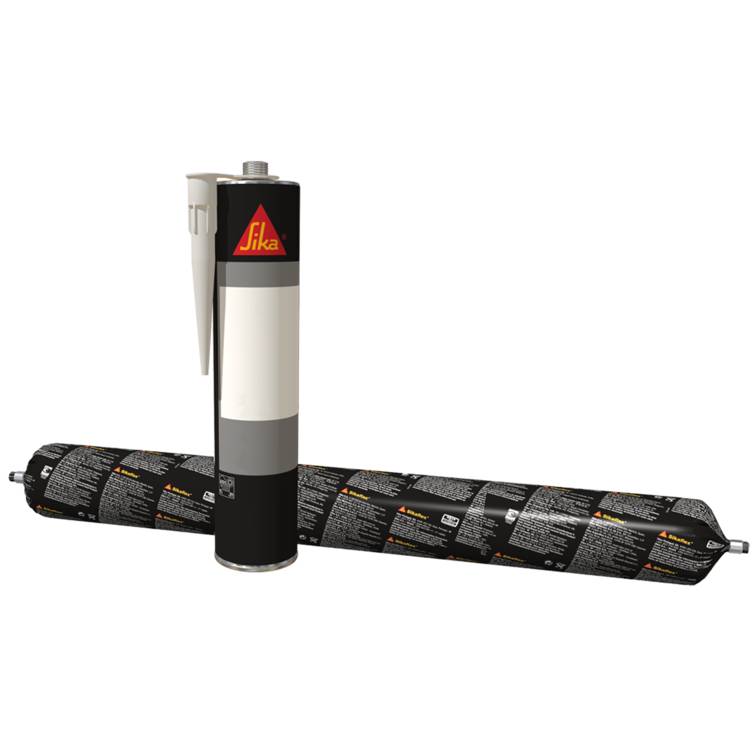

SikaTack® Panel-50 is a 1-component silicone of paste-like consistency for structuraljoints in ventilated facades and interior wall cladding

Features and benefits:

  • One-part adhesive, ready to use.
  • Withstands high dynamic and static stressesand elevated facade temperatures.
  • Approved for permanent deadload transfer.
  • Vibration and movement absorbing fixing system.
  • Provides design opportunities for facades.
  • Uniform load-transfer (with no stress points).
  • Weather resistant.
  • Bonds well to a wide variety of substrates.

Applications:

For professional use only. Suitable for the structural bonding of SikaTack® Panel-50 is suitable for structural joints in ventilated facades and cladded interior walls between the vertically installed substructure and the facade panel that will be subjected to dynamic and static stresses andeven elevated facade temperatures. Suitable substrates are anodized and coated aluminum,glass, metal composite, high pressure laminate and ceramic materials. This product is suitable for experienced professional users only. Tests with actual substrates and conditions have to be performed to ensure adhesion and material compatibility

Can also be used on substrates with other panel types - consult manufacturer for information.

System Components:

  • SikaTack® Panel-50 Adhesive: One-part neutral cure silicone adhesive, combining high mechanical strength with elastomeric properties.
  • Sika® Primer-210: A low viscosity liquid primer for the bond surface of cementitious panels. Apply with Sika Powerclean aid sponges.
  • Sika® Aktivator-205: A pre-treatment alcohol solution containing a bond activating substance for non-porous surfaces (e.g. aluminium rails). Apply with a lint-free paper towel.
  • SikaTack® Panel Primer: A moisture-curing liquid primer for the bond surface of non-porous components (e.g. aluminium rails). Apply with a foam applicator.
  • SikaTack® Panel Fixing Tape: Holds the panels in place during the adhesive cure process. It has a pressure sensitive adhesive on both sides and offers very high peel and shear properties.

Consult manufacturer for information if bonding to timber, in soffit application, or regarding suitable preparation and application methods for this product.

General information
Uniclass 2015
Pr_20_31_02_62 Polyurethane (PUR) adhesivesPrimary
CAWS

E40/530 Sealant

H20/10 Sheet cladding

H20/150 Sheet cladding

H20/155 Sheet cladding

H30/10 Fibre cement

H30/110 Fibre cement

H30/120 Fibre cement

H31/10 Metal

H31/110 Metal

H31/120 Metal

H32/110 GRP

H32/111 PVC-U

H32/115 Polycarbonate

H32/120 Plastics

H41/655 Sealant jointing proprietary system

H42/661 Sealant joints

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

H43/30 Profiled plastic sheet

H92/732 Adhesives

L30/50 Purpose-made balustrades

L30/510 Wood balustrades

L30/515 Wood balustrades

L30/550 Purpose-made balustrades

Specification data - Polyurethane (PUR) adhesives
Product Reference

SikaTack® Panel-50

Standard product features

Technical characteristics:

- SikaTack® Panel-50 Adhesive:

  • Density: 1.4 kg/L.
  • Shore A-hardness: 30 (approximately).
  • Chemical base: One-component silicone.
  • Service temperature: -40 to 150°C.
  • Application temperature: Ambient\ 5–40°C.
  • Tensile strength: 2.2 N/mm² (approximately).
  • Elongation at break: 450% (approximately).
  • Colour: Grey.
  • Non-sag properties: 1 mm.
  • Thermal resistance: 180°C (four hours), 200°C (one hour).
  • Chemical resistance: Resistant to fresh water, seawater, aqueous cleaning solutions, temporarily resistant to fuels, mineral oils, vegetable and animal fats and oils; not resistant to organic acids, alcohol, concentrated mineral acids, caustic solutions and solvents.

- Sika® Primer-210:

  • Density: 1.0 kg/L (approximately).
  • Chemical base: Solvent based Epoxy solution.
  • Application temperature: 5–35°C.
  • Colour: Colourless/ slightly yellow.
  • Flash point: -4°C.
  • Flash off time: 10 minutes.

- Sika® Aktivator-205:

  • Density: ~0.80 kg/L.
  • Chemical base: Solvent based adhesion promoter.
  • Application temperature: 5–40°C.
  • Colour: Colourless, cear.
  • Flash Point: 12°C.
  • Application: Wipe on with lint free paper towel.
  • Flash off time: 10 minutes (minimum) 2 hours (maximum).

- SikaTack® Panel Primer:

  • Density: ~1.0 kg/L.
  • Chemical base: Solvent-based epoxy solution.
  • Application temperature: 5–35°C.
  • Colour: Black.
  • Solid Content:~32%.
  • Application: Brush, felt or foam applicator.
  • Flash off time: ≥15°C (10 minutes)/ <15°C (30 minutes).

- SikaTack® Panel Fixing Tape:

  • Chemical base: Closed cell polyethylene foam core with pressure sensitive adhesive.
  • Application temperature: 5–35°C.
  • Colour: Anthracite.
  • Resistance to shear: 1kg/ 25 x 25 mm (approximately).
