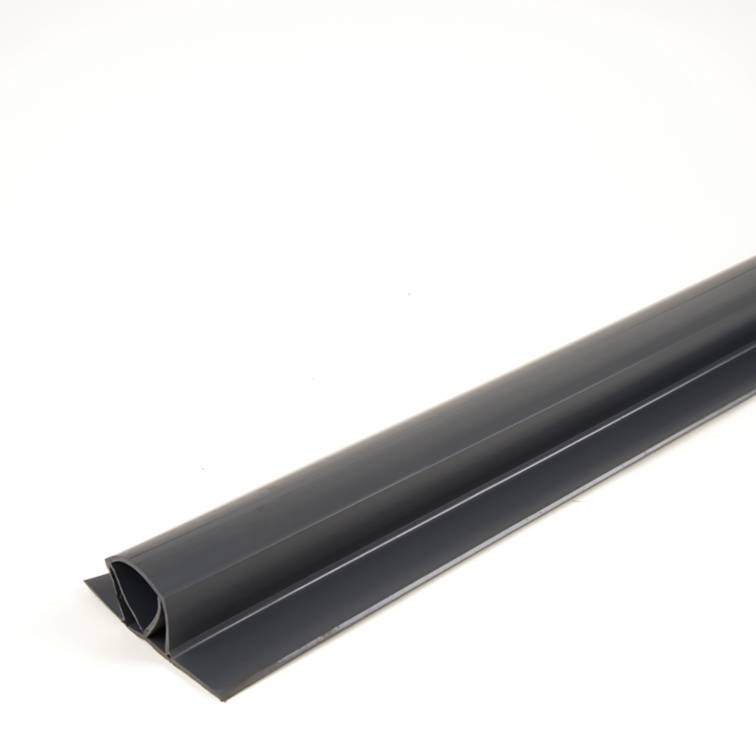

SikaRoof® Batten Profile
Verified by manufacturer 6 months ago
SikaRoof® Batten Profile is a PVC extruded profile for use with Sikaplan® SGK membranes to replicate lead batten roll roofing systems.
Application
For use with adhered Sikaplan® SGK roof waterproofing systems.
Installed in accordance with Sika Limited application instructions, Technical guidance and Product Data Sheet.
Description
SikaRoof® Batten Profile is a polyvinyl chloride (PVC) extruded profile for welding to PVC sheet waterproofing membranes to replicate lead batten roll roofing systems.
USES
SikaRoof® Batten Profile PVC creates an appearance of a lead batten roll roof. For use with Sikaplan® SGK membranes.
CHARACTERISTICS/ADVANTAGES
- Outstanding resistance to weathering, including permanent UV irradiation
- Ease of application
- Suitable for any roof slope
- Excellent weldability
- Recyclable
APPROVALS/STANDARDS
- Reaction to fire according to EN 13501-1
- Quality management system EN ISO 9001/14001
General information
Color | Grey |
Finish | Smooth |
Material | Polyvinyl chloride (PVC) |
Length | 3000 mm |
Width | 120 mm |
Height | 50 mm |
Warranty description | 15 year 20 year 25 year |
Uniclass | |
CAWS | J42/450 Standing seam profiles J42/130 Cold deck roof covering J42/120 Inverted roof covering J42/110 Warm deck roof covering J42/10 Warm deck roof covering |
Specification data - Membrane standing seam profiles
Profile | Batten roll.Guidance for specification option: Ancillary products: Jointing piece (Art. 110644). Compatible products: Sika-Trocal® Type SGK and Type SG PVC membrane. |
Colour | Lead grey.Guidance for specification option: Sika colour. 9500; approximate RAL colour 7012. |
End treatment | SikaRoof® Batten End Piece. |
Dimensions | 3000 x 120 x 50 mm. Guidance for specification option: Length x width x height. Thickness: 3 mm. Mass per unit area: 1300 g/m ±10%. |
Reaction to fire (to EN 13501-1) | Class E. |
