SikaGrout®-800 - High-Performance Cementitious Grout
Verified by manufacturer 1 day ago
A cementitious, high-performance, shrinkage-compensated engineering grout, containing supplementary cementitious materials (SCMs).
Application
For use in:
- Grouting heavy equipment or machine bases;
- Grouting under support base plates;
- Bedding joints in precast concrete sections;
- Sealing around penetrations;
- Steel reinforcement anchoring;
- Repairing concrete structures and components;
- Interior or exterior applications.
Description
SikaGrout®-800 is a cementitious, high-performance, shrinkage-compensated engineering grout. It contains supplementary cementitious materials (SCMs) and can reduce the carbon footprint when compared to a reference cementitious grout in a Life Cycle Assessment (LCA).
Features and benefits:
- Uses supplementary cementitious materials (SCMs) for improved sustainability.
- Application thickness range, 6 to 300 mm.
- Dust-reduced.
- Sulphate-resistant.
- High final strengths.
- Shrinkage-compensated both in plastic and hardening stage.
- Fluid consistency.
- No segregation or bleeding.
- Ready to use, just add water.
- Easy to mix and apply.
- Can be pumped or poured.
- Low permeability.
- Non-corrosive.
- Reaction to fire EuroClass A1.
Approvals/ standards:
- CE marking and declaration of performance based on EN 1504-3:2005 Products and systems for the protection and repair of concrete structures — Structural and non-structural repair.
- CE marking and declaration of performance based on EN 1504-6:2004 Products and systems for the protection and repair of concrete structures — Anchoring reinforcing steel bar.
Environmental information:
- Contributes towards satisfying Materials and Resources (MR) Credit: Building product disclosure and optimization — Environmental Product Declarations under LEED® v4.
- Contributes towards satisfying Materials and Resources (MR) Credit: Building Product Disclosure and Optimization — Sourcing of Raw Materials under LEED® v4.
- Contributes towards satisfying Materials and Resources (MR) Credit: Building Product Disclosure and Optimization — Material Ingredients under LEED® v4.
General information
Color | Grey |
Material | Cementitious |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | C41/530 Proprietary mortar repairs C41/530 Proprietary mortar repairs E60/325 Grouting |
Specification data - Cementitious grouts
Classification data | |
Colour | Grey. |
Layer thickness | Guidance for specification option: Insert requirements, 6–300 mm. |
Standards | CE marking and declaration of performance based on EN 1504-3:2005 Products and systems for the protection and repair of concrete structures — Structural and non-structural repair. CE marking and declaration of performance based on EN 1504-6:2004 Products and systems for the protection and repair of concrete structures — Anchoring reinforcing steel bar. |
Composition | Powder. Chemical base: sulphate-resistant and replacement cement, selected aggregates and additives. |
Chloride Ion content | To EN 1015-17, ≤0.05%. |
Compressive strength | To EN 12190, ~80 MPa (cured 28 days at 21°C). Guidance for specification option: ~30 MPa cured 24 hours at 21°C. ~55 MPa cured 7 days at 21°C. |
Modulus of elasticity | To EN 13412, ~32 GPa (cured 28 days at 21°C). |
Flexural strength | To EN 12190, ~10 MPa (conditioned for 28 days at 20°C). Guidance for specification option: ~6 MPa (conditioned for 24 hours at 20°C). ~8 MPa (conditioned for 7 days at 20°C). |
Tensile Adhesion | To EN 1542, ≥2.0 MPa. |
Shrinkage | To EN 12617-4, Linear: ≤0.7 mm/m after 91 days. Restrained shrinkage/ expansion to EN 12617-4, ≥2.0 MPa. |
Thermal compatibility | To EN 1770, ≥2.0 MPa (Part 1 - Freeze-Thaw). |
Carbonation resistance | To EN 13295, dk ≤ control concrete MC (0.45). |
Reaction to fire | To EN 1504-3, EuroClass A1. |
Density | Fresh mortar: 2.25 kg/L. |
Sustainability data
Material | Cementitious |
Literature

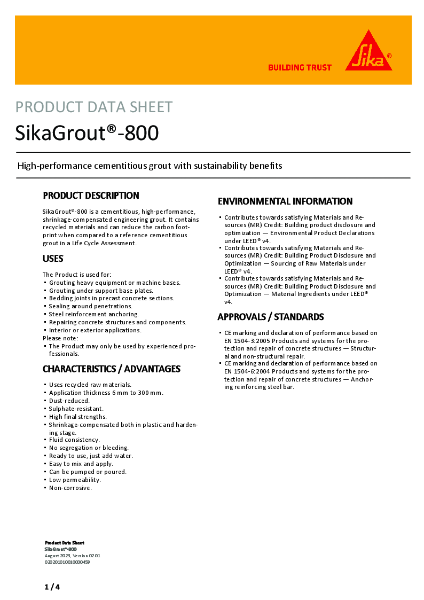

SikaGrout®-800 - Product Data Sheet
