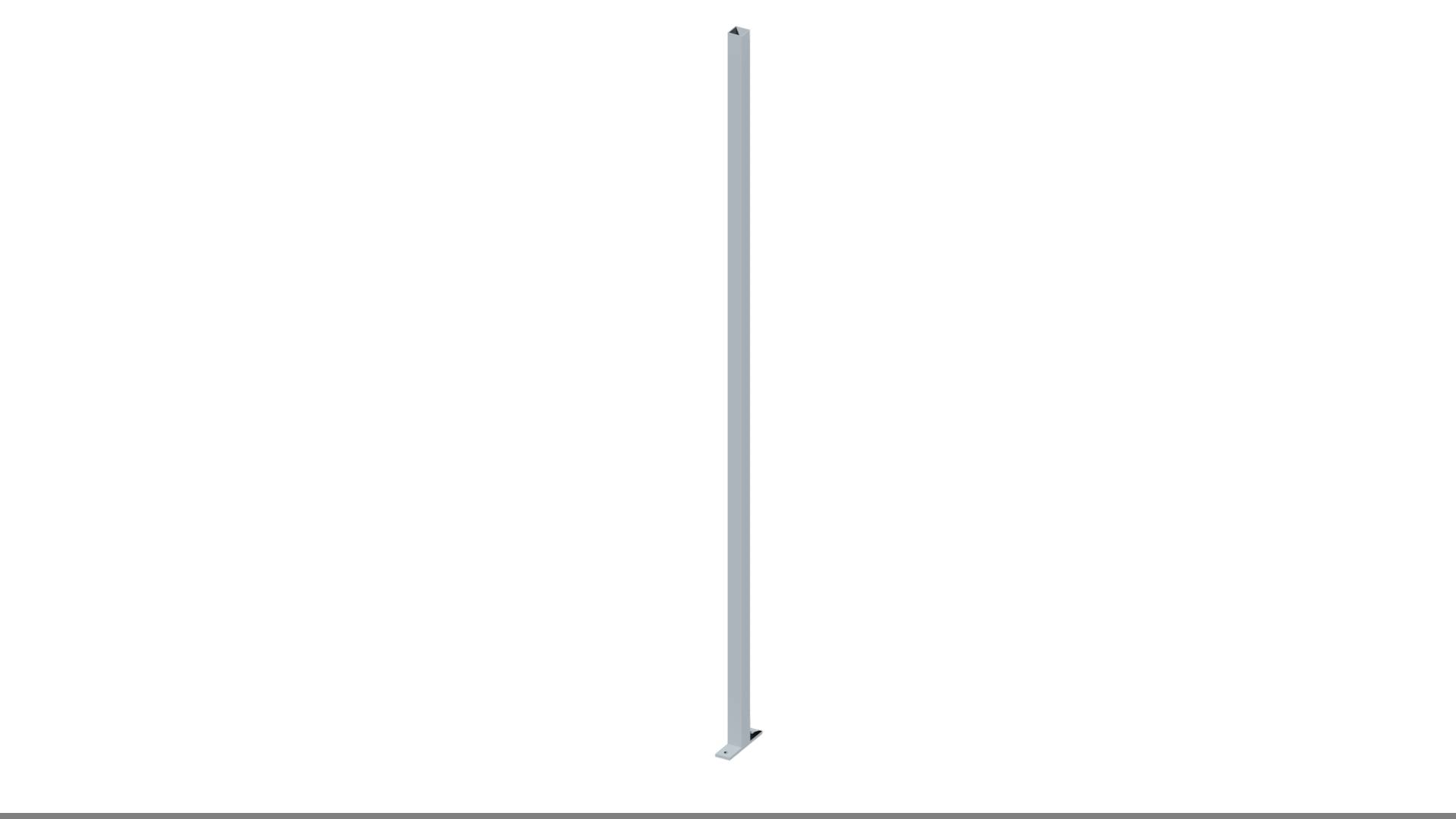

Sigma posts are a heavy duty box section designed to support the Sigma panel partitioning wall system.
Sigma is a fully demountable, relocatable single skin steel partitioning system designed and manufactured for factory, warehouse and storage applications where appearance is important. The system, of pressed channel frame construction is based on standard panels in full steel, steel and glass, steel and mesh and full mesh and comes complete with a range of door types and styles. All components are factory finished in epoxy powder coat. The system offers simple and quick installation.
Finish | Epoxy powder coated |
Color | Sandstone - BS.08.B.17, Grey - BS.0.A.05, Grey - RAL 7037, White - RAL 9010 & Blue - RAL 5010. Non- standard colours are available on request |
Material | Carbon steel |
WarrantyDescription | Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required |
Uniclass 2015 | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system K30/135 Relocatable partition/ Ceiling system K30/170 Mesh panel partitions |
Product Reference | Sigma partitioning |
Partition height | 2438 mm2743 mm3048 mm3657 mm |
Partition abutments | - |
Head | Insert requirements. |
Deflection allowance | Insert requirements. |
Floor | Insert requirements. |
Wall/ Vertical structure | Insert requirements. |
Framing | Pressed channel section frame |
Junctions/ Corners | Manufacturer's standard |
Trims | Top capping |
Panels | - |
Type | Full steelSteel/ Glass/ SteelSteel/ MeshFull meshSteel/ Glass |
Width | 300 mm400 mm500 mm600 mm700 mm800 mm900 mm1000 mmSpecial orderNon-standard widths are available up to a maximum 1200 mm wide; insert requirements. |
Finish | Epoxy powder coated |
Colour | Grey BS 00A05Grey RAL 7037Sandstone BS 08B17White RAL 9010Blue RAL 5010 |
Joint treatment | Exposed bolted panels and mullions |
Glazing | Half glazed from 1087–2373 mm above fflGlazed panel from 1087–2017 mm above ffl |
Glass | 6.4 mm single glazing6 mm single glazing |
Doorsets | - |

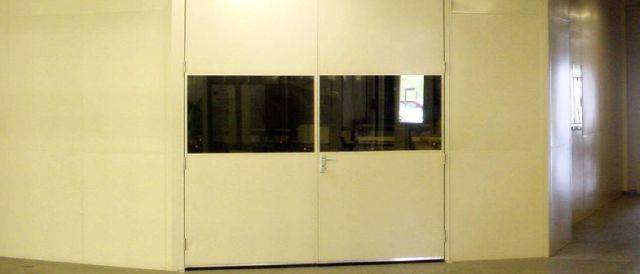

Type | Steel hinged single doorsSteel hinged double doorsSteel sliding doorsTimber hinged single doorsTimber hinged double doors |
Door frames | 50 x 25 x 2.5 mm steel angle sectionsSteel pressed box section |
Doors | 1000 x 2006 mmSingle leaf steel. 2000 x 2006 mmDouble leaf steel. 1000 x 2180 mmSliding steel. 2000 x 2180 mmSliding steel. 2400 x 2180mmSliding steel. 900 x 2023 mmSingle leaf timber. 1851 x 2023 mmDouble leaf timber. |
Vision panels | Half glazed |
Ironmongery | Manufacturer's standard |
Accessories | Drop-down hatch with hinged flapSliding glass hatchCeilings and lights |
Standard product features | Panel weight: Nominally 9 kg/m² excluding glass. Junctions/ Corners: 50 x 50 mm hollow section steel mullions to corners and junctions with 50 x 50 mm hollow section steel support mullions at 3000 mm centres, bolted to the floor with M10 countersunk expanding anchors. |
Product Options | Partition abutments: Consult manufacturer for recommendations and details. Partition height: Non-standard heights and multi-tiered options are available. Configurations:
Consult manufacturer for availability of alternative meshes and to obtain samples. Colour: Partitions are available in a range of five standard colours, but non-standard and corporate colours to the nearest BS or RAL colour are available on request. Glass: Steel 'clip-on' glazing beads accommodate any 6 to 6.4 mm thick glazing product. Doors:
Ironmongery: Ironmongery options include: 3 lever mortise lock with lever handles, pull handle and push plate, mortise lock with euro profile cylinder, digital lock, claw lock for sliding doors and all doors can be padlockable. Accessories:
|
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | IFC2X3 | 2 | 1.3 |
![]() | Revit 2016 | 3 | 2.0 |
