Shower Assembly with Timed Flow Control, Riser Rail, Hose and Three Function Handset (excl. ILTDU)
Verified by manufacturer 1 month ago
Top entry inlets, standard control, white riser rail - T307A
Top entry inlets, standard control, white riser rail - T307A
Type 3 (Healthcare) approved TMV
Certificate type
UK Water Regulation 4
Certificate type
Surface mounted, pre-plumbed shower panels.
Application
Thermostatic shower panel assembly:
- Suitable for sport and leisure, education and other institutional settings where water and energy conservation is of importance.
- For new build, refurbishment, retrofit and temporary installations.
Description
Horne thermostatic shower panel with push button timed flow control.
Includes a Type 3 Approved Horne 15 thermostatic mixing valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with push button timed flow control, three function handset, hose and riser rail.
Features and benefits:
- Durable, anodized and powder coated (RAL 9010) panel and robust fittings ensure long lifespan.
- Integral healthcare-approved Horne 15 thermostatic mixing valve (pre-set temp).
- Push button timed flow control for water and energy conservation (approximate duration 45 seconds).
- Robust riser / grab rail (max. load 150KgF) in white or deep orange, with inclusive design handset holder.
- Three function* handset with 1.25 m easy-clean and anti-kink hose (PVC liner).
- 8 L/min flow regulator for water and energy conservation.
- Low level integral isolating service valves for ease of maintenance and performance testing.
- Fast and easy installation.
- Pressure tested assembly.
* Three function handset is not suitable for healthcare installations (as per HTM 04-01). For compliant healthcare applications please select shower model with single function handset.
Required accessory:
- Flushing kit (for compliant commissioning, and periodic elevated velocity pipework flushing for biofilm control and improved water quality).
Optional Accessories
- Pipe cover in same profile as panel, to suit 'A' variants. Two lengths available.
- Wall-mounted grab rails to match riser rail (white/grey and orange/grey)
Alternatives
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium Brass Copper Zinc PVC |
Shape | Rectangle |
Width | 181 mm |
Height | 1076 mm Guidance for specification option: 'A' variants with top entry supply pipework 1013 mm Guidance for specification option: 'B' variants with rear entry supply pipework |
Warranty description | Two year Guidance for specification option: Warranty only applies to materials and workmanship.
Does not cover inappropriate handling, incorrect installation, commissioning, operation or maintenance (or lack of). www.horne.co.uk/contact-us/customer-services/the-horne-guarantee/ |
Uniclass | |
CAWS | N13/377 Wet room showers N13/45 Wet room showers N13/42 Shower mixer valves N13/40 Shower units N13/375 Shower units |
Specification data - Shower fittings package
Standards | |
Shower mixers | To HTM Performance specification D 08.Guidance for specification option: Type 3 TMV is to HTM 04:01 supplement: Performance Specification D08: thermostatic mixing valves (healthcare premises). Previously TMV3 Scheme. |
Approvals | Type 3 and UK Water Regulation 4 Approved.Guidance for specification option: Previously TMV3 Scheme and WRAS Approval. |
Form | Wall-mounted shower panel with thermostatic mixer valve, push button timed flow control, three function handset, hose and riser rail. |
Materials | |
Body | Shower panel: Aluminium extrusion; Shower valve: Brass. |
Finish and colour | Epoxy-polyester powder-coated white (RAL 9010) panel, chromium-plated shower head and hand controls, white riser rail. |
Flow rate (maximum) | 8 L/min. |
Water supply temperature (maximum) | 41°C.Guidance for specification option: Hot water supply temperature: 55–65°C. Pre-set maximum outlet temperature 41°C (with 1°C margin). |
Connections | Hot and cold, 15 mm compression fittings. |
Outlet | One head (single mode) - riser rail, hose and handset - three spray patterns. |
Mixer valve | Horne 15, with timed flow control. |
Water pressure | Maximum static pressure: 10 bar. |
Accessories | Flushing kit, P/N 5138. Guidance for specification option: Required accessory - for compliant commissioning and periodic elevated velocity flushing for biofilm control and improved water quality. 465 mm Pipe cover kit, P/N SA-465PC. 940 mm Pipe cover kit, P/N SA-940PC. 2 metre hose, P/N SA-108B. Wall-mounted grab rail, white/grey, P/N 70-6011. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Brass Copper Zinc PVC |
Recyclability | Can be recycled |
Third party certifications
Literature
Horne Pre-plumbed Shower Panels

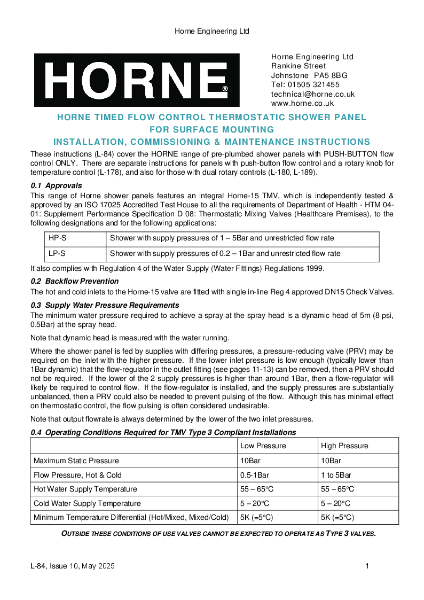

Instructions - Horne H15-TFC Thermostatic Shower Panels
