SuperFoil Insulation Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

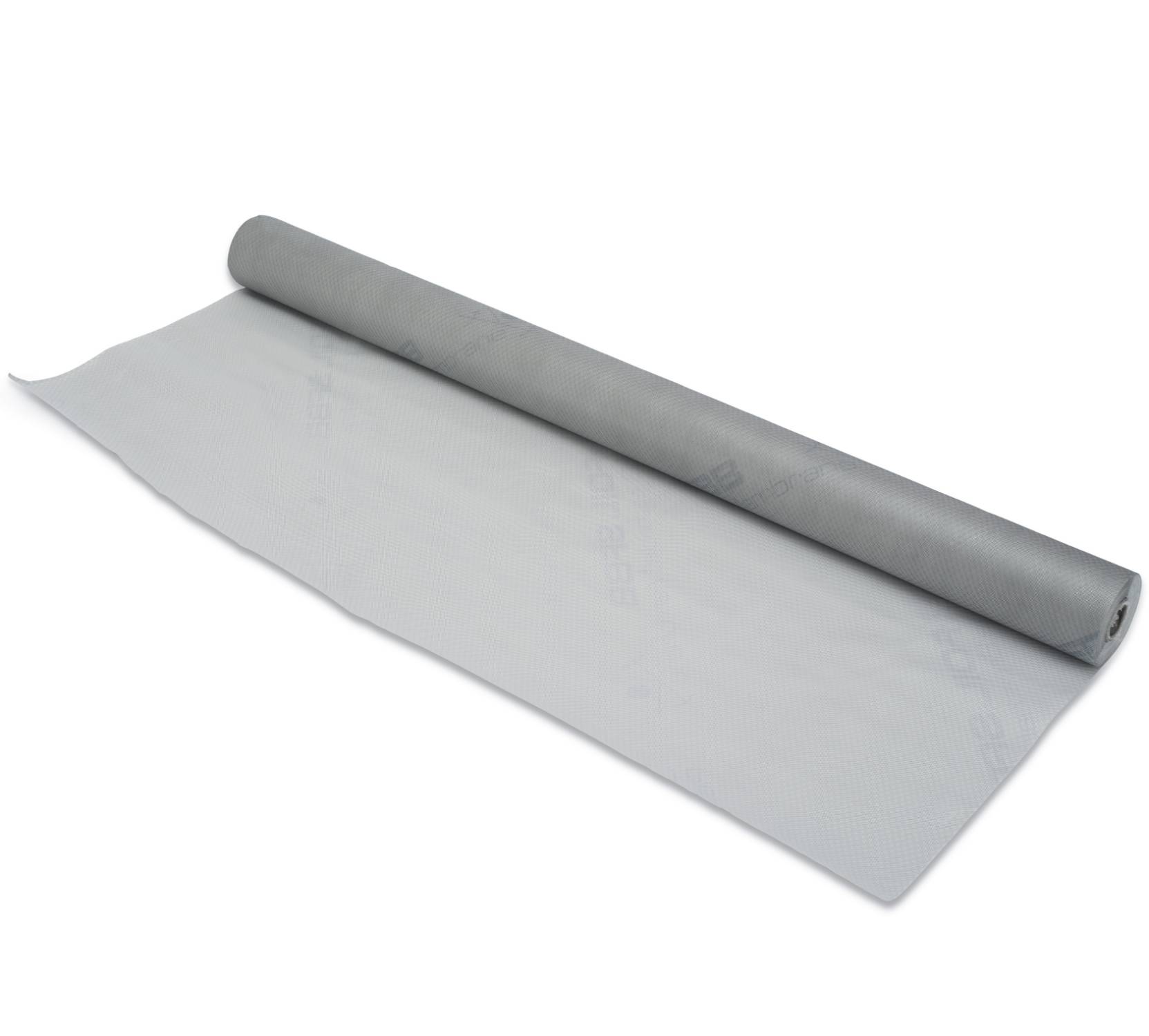

Reflective coated breather membrane for use on roofs and walls.

Jump to:
+44 (0)1636 639900 Website

Application

Ideal for use in new-build, renovation, refurbishment, extension or retrofit projects in pitched and flat roofs, and walls.

Description

A certified 2-in-1 product, providing a breather membrane and a high-performing radiant barrier —all within a single product.


Features and benefits:

  • Has a reflective thermal advantage over standard breather membranes, and can therefore be used to enhance thermal performance.


  • The breathable membrane helps to prevent the formation of mould & damp by reducing the risk of condensation.


  • The perforated design of the layers maintains breathability throughout the entire product.


  • Rated ‘W1’ for watertightness, providing a secondary rain barrier.


  • SuperFOIL SFBB offers thermal performance values of 0.29 R-value for roofs, and 0.366 R-value for walls.


  • Can contribute to reaching U-values of as low as 0.10 W/m²K.


  • When installed next to an airspace, such as a service cavity, SuperFOIL’s reflective properties provide excellent thermal insulation properties.


  • Multifunctional,  lightweight and easy to install design that requires no specialist tools and creates minimal wastage.


  • Reaction to Fire (Euroclass) Class E behind plasterboard.


  • SuperFOIL SFBB has undergone rigorous testing and third party certification to comply with the latest building regulations standards for use as part of construction and European regulations such as CE/UKCA.


  • SFBB can be installed in combination with other insulation products.


  • SuperFOIL SFBB is suitable for use in roofs, and walls in new build & retrofits.


  • SFBB has a lifespan of 50+ years.


Components:

Reflective coated breather membrane.

General information

Color

Silver

Finish

Foil

Material

Foil

Shape

Other

Length

25000 mm

Width

1500 mm

Warranty description

25 year

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

CAWS

H21/130 Breather membrane

H21/20 Breather membrane

H22/130 Breather membrane

H22/20 Breather membrane

H30/350 Breather membrane

H30/50 Breather membrane

H31/280 Breather membrane

H31/55 Breather membrane

H92/785 Breather membrane

P10/320 Breather membrane

P10/65 Breather membrane

Specification data - Vapour-permeable sheets

Product Reference

SFBB

Roll length

25 m

50 m

Standard product features

Roll width:

1.5 m.

Thickness:

>1 mm.

Weight:

5.4 kg per roll.

Total area coverage:

37.5 m² per roll.

Thermal performance (R-value):

  • Roof: 0.29 m²K/W.
  • Wall: 0.366 m²K/W.

Technical characteristics:

  • Water vapour resistance: 0.115 MNs/g.
  • Resistance to water penetration: W1.
  • Water vapour transmission: 0.023 sd.
  • Nail tear strength: 179 N.
  • Tensile strength: 194 N/50mm.
  • Emissivity: 0.3.
  • Reaction to fire (Euroclass): Class E (behind plasterboard).

Sustainability data

Contains Red List materials

No

Third party certifications

  • Declaration of Performance (DoP): 001-BD-CPR-16-03-16 : To EN 13984: 2014
