SF60

SF60

Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Boulder Developments

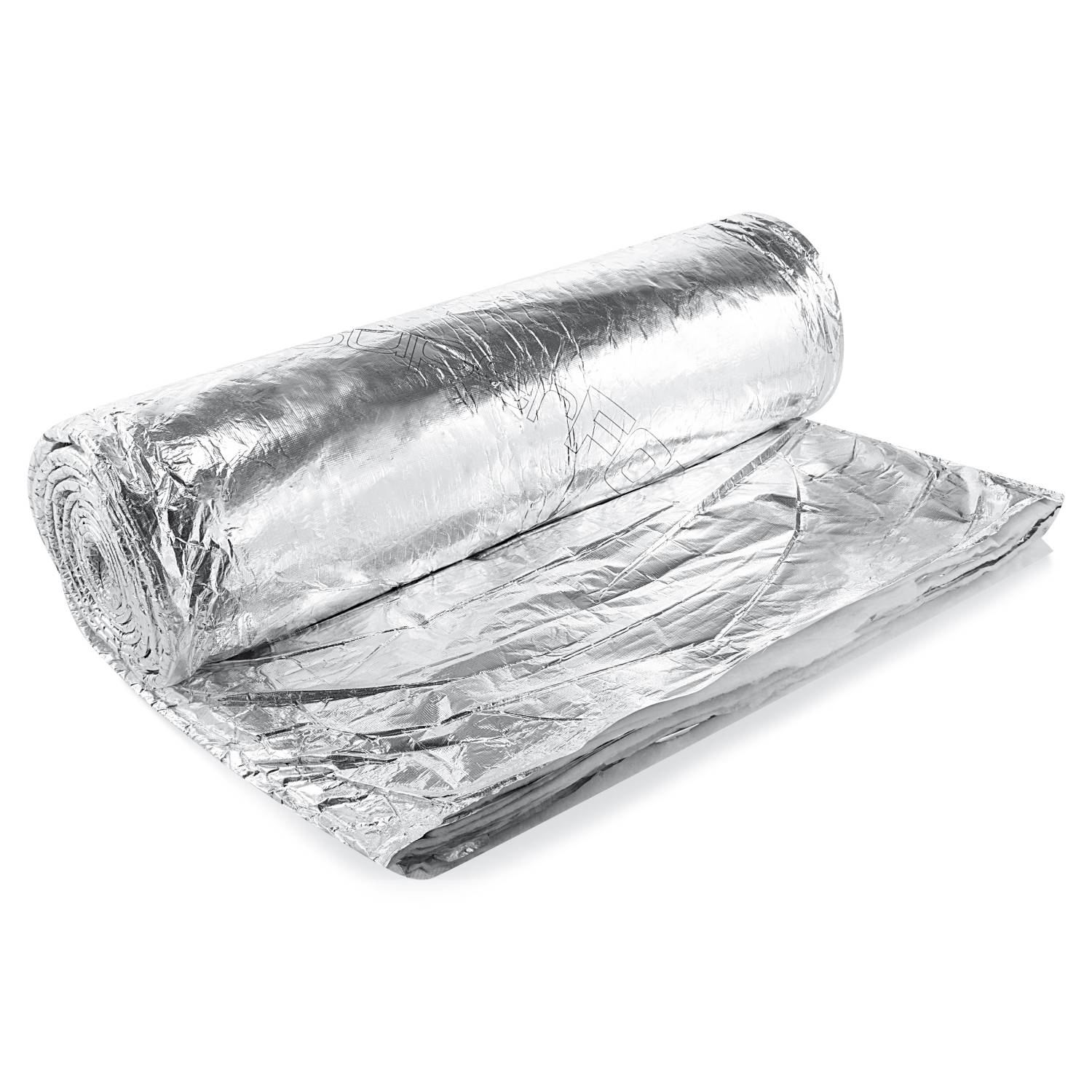

Multi-layer foil thermal insulation for roofs, walls and floors, consisting of 55 layers in total.

Jump to:
+44 (0)1636 639900 www.superfoil.co.uk
Application

Suitable for use in new-build, renovation, refurbishment, extension or retrofit projects in pitched and flat roofs, walls and floors. Can be retrofitted.

Description

Multi-layer foil thermal insulation for roofs, walls and floors, consisting of 55 layers in total.

Features and benefits:

  • Acts as both a foil insulation and vapour control layer.
  • Can reach U-values of as low as 0.10 W/m²K.
  • Uses DuPont nano-coating technology to improve performance.
  • Provides a radiant barrier - reflects excessive heat gain during the summer months, and insulates throughout cooler months.
  • BBA certified with an R-value of up to 4.48 m²K/W in pitched and flat roofs and 4.92 m²K/W in walls.
  • Provides a high amount of insulation within minimal space.
  • Can be used to create an airtight barrier.
  • Helps to reduce dependency on chemical foam products and their associated gas emissions.
  • Local Authority Building Control (LABC) registered system approved, which helps to streamline building regulation applications.
  • Easy to install, and produces minimal waste.
  • Manufactured with 40% recycled materials and is recyclable at the end of its useful life.
  • Compatible for use with all insulations. To ‘Super Insulate’ existing insulation, add one layer of SF60 to maximize energy savings and achieve any U-value.
  • CE marked, and manufactured in accordance with BS EN 13859.
  • Approved for Building Regulations by UK Certified Test laboratories - consult manufacturer for details.
  • Has a life expectancy of over 50 years.

Components:

  • Two reinforced, heavy duty double foil laminated outer layers.
  • Twenty aluminium coated, reflective foil polyethylene terephthalate (PET) layers.
  • Twenty-four thermo-foam separation layers.
  • Nine loft quilt layers, 80 g/m².

Applications:

Suitable for use in new-build, renovation, refurbishment, extension or retrofit projects in pitched and flat roofs, walls and floors. Can be retrofitted.

General information

Uniclass 2015

Pr_25_57_06_57 Multifoil blanket insulationPrimary

CAWS

P10/135 Insulation laid across ceiling ties/ joists

P10/148 Multilayer blanket insulation fixed under or above rafters

Specification data - Multifoil blanket insulation

Product Reference

SF60

Standard product features

Roll size (w x l):

1.5 x 8 m.

Thickness:

100 mm.

Weight:

17.75 kg per roll.

Total area coverage:

12 m² per roll.

Thermal performance (R-value):

  • Core: 3.58 m²K/W.
  • Roof: 4.48 m²K/W.
  • Wall: 4.92 m²K/W.
  • Floor: 6.23 m²K/W.

Technical characteristics:

  • Water vapour resistance: 1200 MNs/g.
  • Resistance to water penetration: W1.
  • Flexibility at low temperatures: -40°C.
  • Tensile properties (length, after ageing): 635 N/50mm.
  • Tensile properties (width, after ageing): 580 N/50mm.
  • Emissivity: 0.03.
  • Reaction to fire (Euroclass): Class E (behind plasterboard).
  • Global warming potential (GWP): 3.

Third party certifications
  • 18/5575 : Product sheet 1: For walls
  • LABC: Registered Detail Approval
  • 18/5575 : Product sheet 2: For roofs
  • Declaration of Performance (DoP): 001-BD-CPR-01-04-19 : To EN 13984: 2013
  • DIBt: Approved
  • LABSS: Approved
