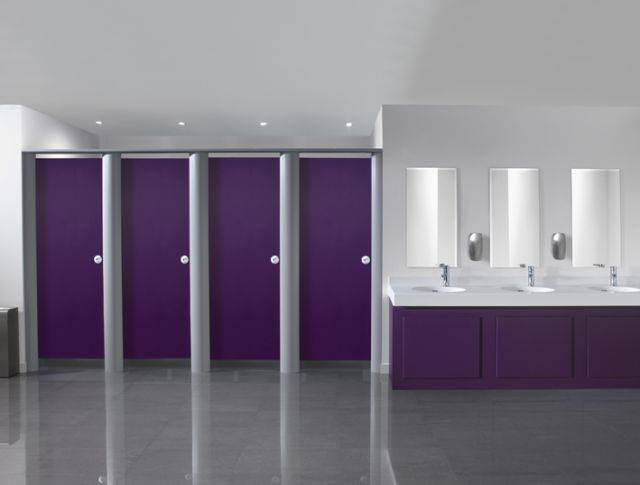

Sentinel SGL Panel Cubicle
Description

Sentinel SGL is a solid and strong washroom cubicle, blending style and strength to compete in the harshest environments. Featuring fluted pilasters and headrail, Sentinel is also available with optional privacy skirting and low floor clearance to doors.

Panels are manufactured to specific site dimensions and CAD drawings will be supplied with each delivery.

Components:

  • Solid grade laminate panels, supplied with polished black radiused edges.
  • Frame comprising: Pilasters, headrail, legs, hinges and channels.

General information
Uniclass 2015
Ss_25_12_60_30 Fully-framed panel cubicle systemsPrimary
CAWS

K32/10 Panel cubicles

K32/112 Fully framed panel cubicles

Specification data - Fully-framed panel cubicle systems
Product Reference

Sentinel SGL Panel Cubicles

Colour -
Doors & Partitions

Refer to manufacturer's standard colour range.

Frames -
Headrail, Pilasters

As schedule ___

Hinges & Channels

Charcoal grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Faceplate

Charcoal grey

Powder coated ABS.

Silver

Powder coated ABS.

Floor Clearance

Standard

105 mm to doors and partitions.

Low

50 mm to doors with privacy skirting to partitions.

Accessories

Refer to manufacturer's standard accessories range.

Other requirements

None

Stylex printed doors.

Standard product features

Panel Material:

  • Solid grade laminate, 1400 kg/m³.
  • Thickness (overall): 13 mm nominal.
  • Edge detail: Polished black radiused edges.

Height (overall):

2000 mm.

Product Options

Colour:

- Doors/ Partitions:

36 laminate colour options and 4 digital prints - select from manufacturer's literature.

Accessories:

Selection of soap dispensers, paper towel dispensers, toilet roll holders, hand dryers, coat hooks and door handles - select from manufacturer's literature.
