Secret Fix-2 - Facade Support
Verified by manufacturer 3 days ago

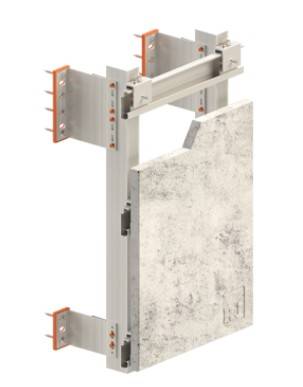

Facade cladding support system using undercut anchors, horizontal rails and hanger clasps.
Application
For use as cladding support for:
- Ceramic tiles.
- Glass.
- Fibre cement.
- Stone.
- Natural stone up to 50 mm in thickness.
- Technical stone.
- Glass fiber reinforced concrete (GFRC).
- Light transmitting concrete.
Description
Facade cladding support system, providing a solution for medium to heavy weight facades.
Designed for invisible mounting of thin and smooth facade materials.
The system comprises of:
- Undercut anchors.
- SF horizontal rail system.
- SF2 hanger clasps.
- Cladding (supplied by others).
Features and benefits:
- SF2 clasps are designed to help the connection to the SF horizontal profile.
- Uninterrupted vision of the facade with no visible holding elements.
- Compatible with a large variety of sizes and designs of facade material.
- Highest level of security when fixing the tiles, due to the undercut anchors.
- Possibility to use facade materials with thicknesses ranging from 25 to over 35 mm.
- Fast and easy installation compared to other secret fix systems.
- Secure and fully engineered work, which covers the entire project, and guarantees a complete system solution.
- Use of stand off fixings with natural stone panels to remove thickness tolerances.
General information
Color | Silver |
Finish | Mill |
Material | Aluminium |
Shape | Other |
Length | 3000 mm |
Width | 25 mm |
Height | 70 mm |
Uniclass | |
CAWS | H40/110 GRC cladding H20/10 Sheet cladding H51/110 Cladding H30/10 Fibre cement H51/110 Cladding H20/150 Sheet cladding (attached to metal support systems) H30/120 Fibre cement H92/120 Rainscreen cladding |
SKU Code | SF2 25x3 40/M6/FP, SF2 25x3 40/M6/SP, SF2 25x3 40/M8/FP, SF2 25x3 40/M8/SP, SF2 25x3 40/HEX/FP, SF2 25x3 40/HEX/SP, SF2 25x3 40/SQUARE/FP, SF2 25x3 40/SQUARE/SP, SF2 25x3 40/2xM6/FP, SF2 25x3 40/2xM6/SP |
Specification data - Aluminium cladding support system
Classification data | |
System manufacturer | RJ Facade Systems Ltd. |
System reference | Secret Fix-2. |
Standards | To BS EN 12020, BS EN 755, BS EN 573, and EN 15088. |
Certification | UKAS/ UL Winmark approval. |
Products | SF Horizontal Rail with SF2 Fixed Point Hanger Clasps (40 mm). Guidance for specification option: Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the facade vertical dead loads. SF Horizontal Rail with SF2 Sliding Point Hanger Clasps (40 mm). Guidance for specification option: The Sliding Point bracket is used typically on all other positions on the vertical rail to absorb the project wind loading. Manufacturer guidanceRail: Supplied in 3 m lengths. |
Aluminium profiles | T-profile. L-profile. Structural top hats. Structural C-profiles. Manufacturer guidanceConsult manufacturer for further details and insert requirements. |
Material grade | EN AW-6063 T6. |
Brackets | EVT II L-brackets - aluminium. EVT II L-brackets - stainless steel. EVT II U-brackets - aluminium. EVT II U-brackets - stainless steel. Manufacturer guidanceAvailable in a range of sizes. Consult manufacturer for further details and insert requirements. |
Primary | Undercut anchors. Guidance for specification option: Consult manufacturer and insert requirements. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 44 % |
