SDW Structural Wood Screw

Name: SDW Structural Wood Screw
Brand: Simpson Strong-Tie
SKU: sr5zghKede7G2TaWanNacH

Verified by manufacturer 7 months ago

Simpson Strong-Tie

Third party certifications:

DoP
Certificate type

A structural wood screw specifically designed for fastening multi-ply wood members such as plated trusses, engineered timber products and solid-sawn timber.

Jump to:

+44 (0)1827 255600 Website

Application

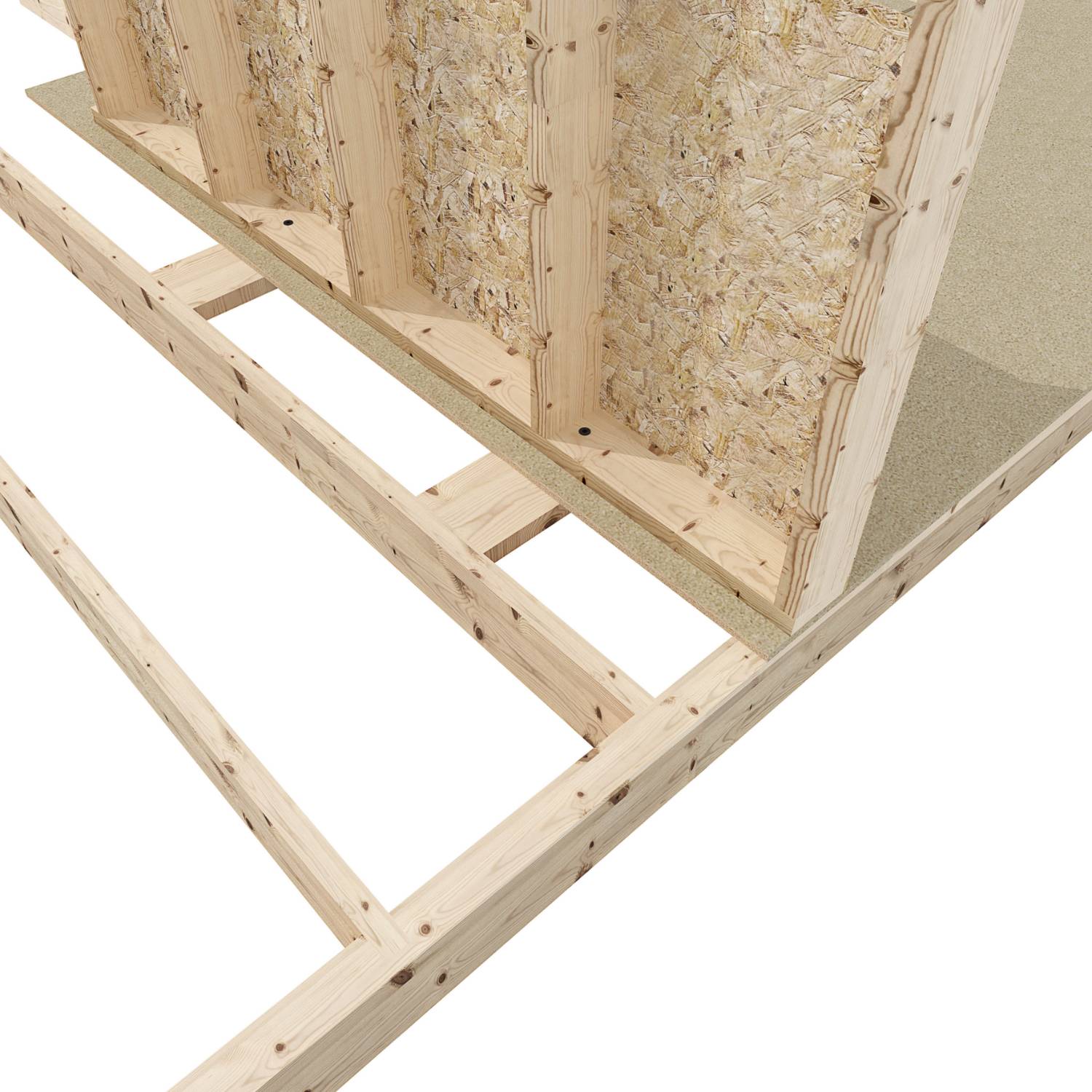

For fastening multiple wood elements including uprights and trusses, engineered timber products and solid timber.
SDW timber screws should only be used in dry, interior and non-corrosive environments e.g. Service class 1 and 2.

Description

The Strong-Drive® SDW screw is an 8.0 mm diameter, high-strength structural wood screw specifically designed for fastening multi-ply wood members such as plated trusses, engineered timber products and solid-sawn timber.

The SDW installs easily without pre-drilling and is available in optimized lengths for fastening 2, 3 and 4-ply trusses or 45 mm engineered timber such as Laminated Veneer Lumber (LVL). The SDW enables single-side fastening, while still allowing concurrent loading on both sides of the assembly to the full allowable head or point-side load of the fastener.

Features and benefits:

Heat treated carbon steel - black E-coat™.
CE marked to EN 14592.
Low-profile head for reduced interference during handling or installation of hardware on the assembly.
High shear values enable wider screw spacing.
Bold thread design firmly clinches plies together to close gaps in multi-ply assemblies.
Optimal screw lengths provide maximum point side penetration.
Driver bit included in each box.

General information

Color	Black
Finish	Coated
Material	Carbon steel
Shape	Other
Length	66 mm 76 mm 86 mm 111 mm 117 mm 127 mm 152 mm 162 mm 172 mm Show more
Width	8 mm

Uniclass	Pr_20_29_76_98 Wood screwsPrimary
CAWS	G20/41 Bolt/ screw assemblies G20/615 Bolt/ screw assemblies

Specification data - Wood screws

Standard	To BS EN 14592.
Material	Carbon steel.
Finish	Black E-coat™.
Screw details	-
Head option	Countersunk head.
Screw pattern	Partially threaded shank.
Size	-
Diameter	8 mm.
Length	66 mm. Guidance for specification option: SDW22258-R50E. 76 mm. Guidance for specification option: SDW22300-R50E. 86 mm. Guidance for specification option: SDW22338-R50E. 111 mm. Guidance for specification option: SDW22438-R50E. 117 mm. Guidance for specification option: SDW22458-R50E. 127 mm. Guidance for specification option: SDW22500-R50E. 152 mm. Guidance for specification option: SDW22600-R50E. 162 mm. Guidance for specification option: SDW22638-R50E. 172 mm. Guidance for specification option: SDW22634-R50E.
