Schlüter®-BEKOTEC-EN 12 FK

Application

For crack free and functionally safe floating screeds and heated screeds suitable with most floor finishes. Suitable for use with conventional cement screeds of strength class CT-C25-F4 (ZE 20) or calcium sulfate screed CA-C25-F4 (AE 20) as well as flowing screed.

Description

A reliable covering assembly system. Installation is preferred by Schlüter-Systems trained installers


Features and benefits:

  • The floating system is installed directly on load-bearing, weight-distributing substrates such as concrete or existing wooden floor structures, using the thin-bed method.

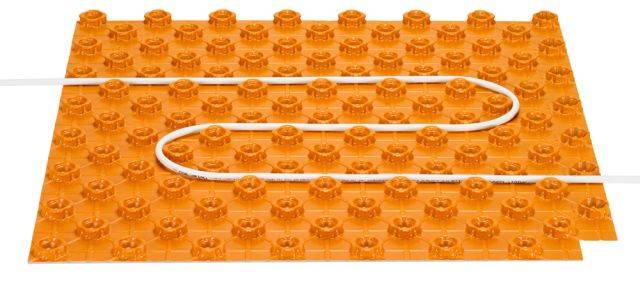

  • The system is based on the studded polystyrene screed panel Schlüter-BEKOTEC-EN 12 FK with an anchoring fleece on the underside. The studded screed panel is directly installed onto suitable weight-distributing substrates as a bonded assembly, using the thin-bed method.
  • The studs have a cutback design to securely keep heating pipes in place without the need for clamps.
  • The studded panels are connected by overlapping a row of studs and clicking the panels together.
  • The curing stresses that occur in the screed due to shrinkage are absorbed by the studded pattern, thus controlling deformations such as curling. It is therefore unnecessary to install movement joints in the screed.
  • Schlüter-BEKOTEC-EN 12 FK is made of a high-impact polystyrene deep-drawn foil and is suitable for use with conventional cement screeds of strength class CT-C25-F4 (ZE 20) or calcium sulfate screed CA-C25-F4 (AE 20) as well as flowing screed.
  • Schlüter-BEKOTEC-EN 12 FK, -ENFGK, and -BRS are non-rotting and require no special maintenance or care.
  • The Schlüter-BEKOTEC system is designed to reduce shearing tensions in the screed within the grid of the studded panel. No construction reinforcement is required.
  • The cover assembly of the Schlüter-BEKOTEC system is free of inherent stresses. Consequently, curling is virtually impossible to occur in the area. This is especially applicable in the presence of temperature fluctuations, for example with heated screeds.
  • The regular patterns of the Schlüter-BEKOTEC system evenly reduce tensions in the screed, which allows for constructing the screed without movement joints.
  • The design of movement joints can match the joint pattern of the tiles or stone covering, since it is not necessary to continue construction joints from the screed into the surface covering.
  • The floor heating system is easily adjustable and ideally suited for use with low temperatures.
  • Compared to conventional heated screeds, cover assemblies installed with a Schlüter-BEKOTEC system react much faster to temperature changes, since the volume to be heated or cooled is much smaller. Consequently, the heated floor system is particularly suitable for operation at low temperatures.
  • Schlüter-Systems offer a five year warranty.

General information

Finish

Studded

Color

Orange

Material

Polystyrene

High-impact polystyrene deep-drawn foil.

Shape

Rectangular

Size

12 x 1100 x 700 mm

WarrantyDescription

Five years

Uniclass 2015

Ss_30_42_15_10 Bonded or partially bonded cementitious levelling screed systemsPrimary

CAWS

M10/110 Bonded cement:sand levelling screeds

Product range

Modular Screed Systems

Specification data - Bonded or partially bonded cementitious levelling screed systems Enhanced data

Product Reference

Schlüter®-BEKOTEC-EN 12 FK

Grid spacing

50 mm.

100 mm.

150 mm.

200 mm.

250 mm.

Mandatory System Accessories

Schlüter-BEKOTEC-ENFGTS.

Levelling panel.

Schlüter-BEKOTEC-ZRKL.

Pipe clamping strip.

Schlüter-BEKOTEC-ZDK.

Double sided adhesive tape.

Schlüter-BEKOTEC-BRS.

Edge strip.

Schlüter-DILEX-DFP.

Expansion joint profile.

Show more

Diameter

44 mm.

Pipe diameter

10 mm.

Environmental information

Country of product manufacture

Germany
