Description

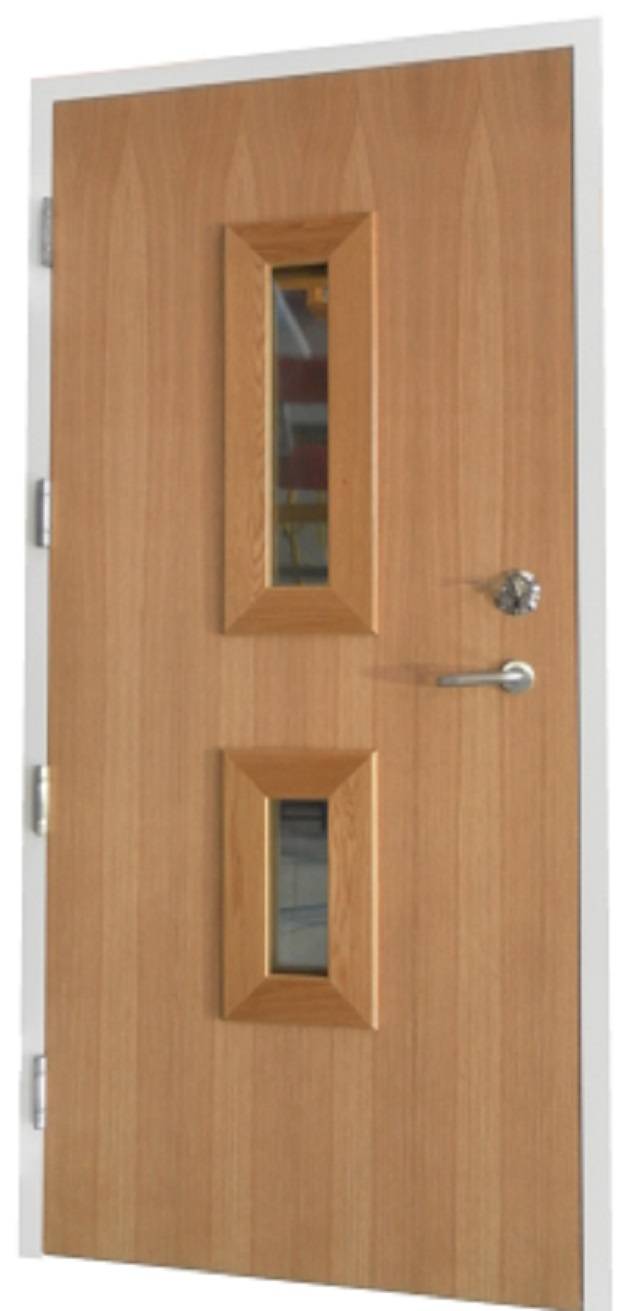

Safeguard timber doorsets are a range of standard or non-standard bomb-blast doors, manufactured by ASSA ABLOY Security Doors, providing protection from fragmentation in addition to providing blast resistance.

Provides an optimum level of security and supported by comprehensive evidence of physical, ballistic, blast and fire testing. The doors can accommodate most high-security locking systems and ironmongery, including single point locking, multipoint locking and access control systems.

Safeguard timber doorsets are approved by many governmental and military organisations.

Safeguard Trenchard doors are tested and certified to LPS 1175 SR3.

Safeguard Trenchard doors are designed for a range of applications where a high standard of security is required, whilst still providing discreet attractive appearance.

Approvals:

  • Upgradable to BS EN 1634-1:2008.
  • BS EN ISO 140 Part 3.
  • LPS 1175 SR3.

Additional information for this product is available from:

https://www.assaabloy.co.uk/en/local/uk/product/all-products/security-doors1/safeguard-timber-doorsets/security/certified-security/trenchard---lps-1175-sr3/

General information

Finish

-

Manufacturer guidance

[Finish, All Safeguard doors and frames are manufactured from high quality hardwoods and are sealed and protected in the factory. A wide variety of decorative finishes that can provide a discrete appearance to blend in with other non security rated doors are available. These include paint finishes, applied laminates, various wood veneers and decorative panels]

Uniclass

Pr_30_59_24_37 High-security doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/55 Doorsets

Product range

Doors, Windows, Screens And Curtain Walling / Safeguard

Specification data - High-security doorsets

Product Reference

Safeguard SR3

Facing

Ash veneer

Mahogany veneer

Oak veneer

Steel

FireRating

Non fire rated

FD30

Guidance for specification option:

30 minute integrity and insulation tested to BS EN 1634-1.

FD60

Guidance for specification option:

60 minute integrity and insulation tested to BS EN 1634-1.

Colour/ Finish

-

Door leaf

Lacquered

Painted

Stained

Two-part resin

Guidance for specification option:

Special finish, consult manufacturer for more details.

Door frame

Lacquered

Painted

Guidance for specification option:

Insert requirements.

Stained

Guidance for specification option:

Insert requirements.

Two-part resin

Guidance for specification option:

Special finish, consult manufacturer for more details.

Vision panel

Guidance for specification option:

Insert requirements.

Ironmongery

-

Hinges

Solid stainless steel continuous hinge

Guidance for specification option:

Optional. Non-fire rated.

Manufacturer's standard

Locking

Two point locking

Guidance for specification option:

Optional.

Three point locking

Guidance for specification option:

Optional.

Manufacturer's standard

Standard product features

Door:

- Leaf:

  • 44/ 45 mm solid hardwood/ lamelled core and exterior facings.
  • ½ hour fire resistance can be achieved using appropriate intumescent seals.
  • Hardwood lippings are fitted to all four edges.

- Frame:

  • 95 x 70 mm (minimum) solid hardwood. Designed to accommodate intumescent strip or smoke seals, if required.
  • Five Hilti frame fixings (reference number: 132/10) fitted to each side of door frame.

Ironmongery:

- Hinges:

Three heavy duty, fire rated stainless steel hinges. Additionally two hinge bolts providing greater strength and protection to hinge side of the door frame.

- Locking:

  • Surface mounted high security three point locking system with high security cylinder guard protecting a Assa Abloy Twin Combi 5800 cylinder.
  • Concealed lock keep reinforcement providing further protection to the locking point.

Product Options

Vision panel:

Vision panels can be fitted into the door core. The design will depend on the application, level of security required and limitations with regard to the fire certification.

Finish:

All Safeguard doors and frames are manufactured from high quality hardwoods and are sealed and protected in the factory. A wide variety of decorative finishes that can provide a discrete appearance to blend in with other non security rated doors are available. These include paint finishes, applied laminates, various wood veneers and decorative panels.
