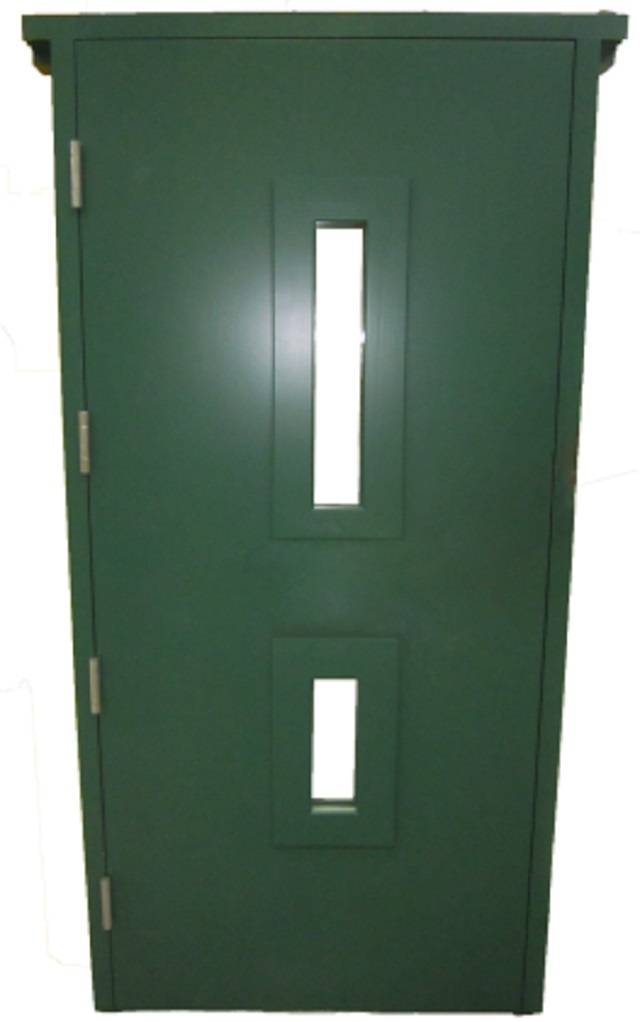

Safeguard - FB4
Verified by manufacturer over a year ago
Safeguard FB4 doors provide ballistic attack resistance, dependent on perceived risk, while retaining the aesthetics and practical benefits of the timber door and frame.
Description
Safeguard Ballistic Doors have been independently tested and certification reflects the breadth of our product range, which also includes blast and fire protection. Our systematic approach to product development continues to keep us at the forefront of ballistic protection and our doors are available in both steel and timber finishes.
Additional information for this product is available from:
https://www.assaabloy.co.uk/en/local/uk/product/all-products/security-doors1/safeguard-timber-doorsets/ballistic/
General information
Uniclass | |
CAWS | L20/410 Wood doorsets L20/420 Wood doorsets L20/55 Doorsets |
SKU Code | unknown |
Product range |
Specification data - High-security doorsets
Classification data | |
Product Reference | Safeguard Concept Two |
FireRating | Non fire rated FD30 Guidance for specification option: 30 minute integrity and insulation tested to BS EN 1522/23. FD60 Guidance for specification option: 60 minute integrity and insulation tested to BS EN 1522/23. |
Door frame | |
Material | 95 x 70 mm solid hardwood 120 x 70 mm solid hardwood |
Colour/ Finish | Lacquered Painted Stained Two-part resin Guidance for specification option: Special finish, consult manufacturer for more details. |
Door leaf | |
Facing | Ash veneer Mahogany veneer Oak veneer Steel |
Colour/ Finish | Lacquered Painted Guidance for specification option: Insert requirements. Stained Guidance for specification option: Insert requirements. Two-part resin Guidance for specification option: Special finish, consult manufacturer for more details. |
Vision panel | Guidance for specification option: Insert requirements. |
Ironmongery | |
Hinges | Three heavy duty, fire rated stainless steel hinges Guidance for specification option: Optional. Manufacturer's standard |
Locking | Two point locking Guidance for specification option: Optional. Three point locking Guidance for specification option: Optional. Manufacturer's standard |
Door closer | Guidance for specification option: Insert requirements. |
Accessories | None Cill board Continuous steel 'T' bar section Guidance for specification option: Fitted to the locking edge of the door leaf to provide protection of the door gap in outward opening door applications. Threshold |
Standard product features | Door: - Leaf: Single and double leaf configuration - Frame: Designed to accommodate intumescent strip or smoke seals, if required. Ironmongery: - Hinges: Solid stainless steel continuous hinge. Additionally two hinge bolts providing greater strength and protection to hinge side of the door frame. - Locking: Surface mounted high security three point locking system with high security cylinder guard protecting a Assa Abloy Twin Combi 5800 cylinder. |
Product Options | Vision panel: Vision panels can be fitted into the door core. The design will depend on the application, level of security required and limitations with regard to the fire certification. |
