A means of terminating roofing and waterproofing membranes at upstands.
RynoTrim™ Termination Bar offer a neat and efficient means of terminating roofing and waterproofing membranes at wall abutments, they require no chases to be cut for installation which can be particularly important in reinforced concrete upstands, where there is a risk of exposing the steel reinforcement. Manufactured from either glass fibre reinforced polyester or mill finished aluminium.
They have a very low coefficient of thermal expansion. Stocked in black, with other colours available to special order. Aluminium option is manufactured from extruded aluminium alloy to BS 1474, quality 6063/T6, available mill finished as standard or polyester powder coated to special order.
Features:
Performance:
RynoTrim™ Termination Bars will not rust and are not affected by atmospheric pollution. Anodized and polyester powder coated are colourfast and once installed are maintenance free.
Features | Fast and simple to install 5 standard profiles Suitable for all waterproofing types Fix through or cover flashing type available Full range of fixings and mastic sealants available |
Uniclass 2015 | |
CAWS | H71/410 Apron flashings J21/345 Perimeter trims J31/355 Perimeter trims J41/345 Perimeter trims J42/345 Perimeter trims |
Product Reference | RynoTrim™ Aluminium and GRP Termination Bars |

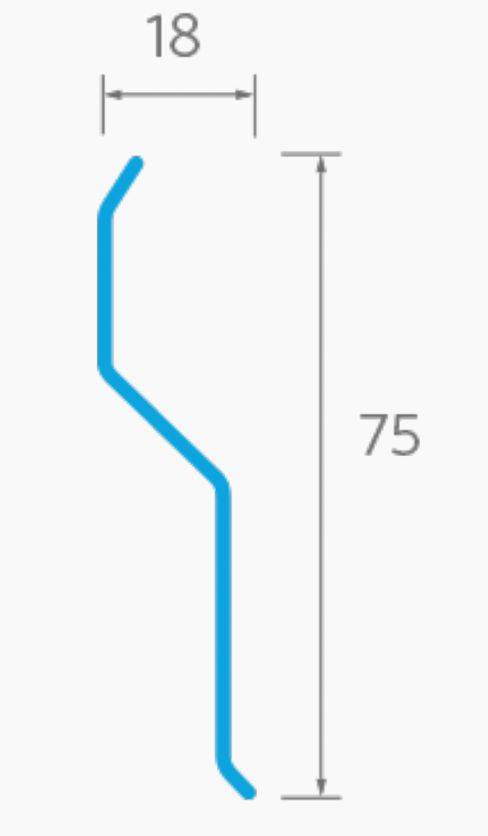

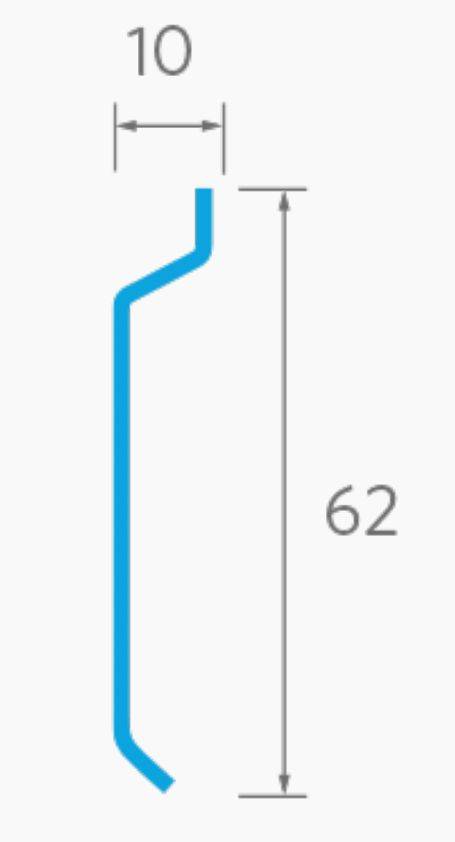

Type | AA 110Aluminium Termination Bar. Fix-through flashing for all membranes. AF 55Aluminium Termination Bar. Fix-through flashing for all membranes. AF 62Aluminium Termination Bar. Fix-through flashing for all membranes. GA 75GRP Termination Bar. Fix-through flashing for all membranes. GF 62GRP Termination Bar. Fix-through flashing for all membranes. |
Colour/ Finish | Aluminium, mill finishAluminium Termination Bar only. AnodizedAluminium Termination Bar only. Polyester powder coated, colourGRP and Aluminium Termination Bar. Insert RAL colour requirements. Polyester resin, colourGRP Termination Bar only. Insert black, white or grey. |
