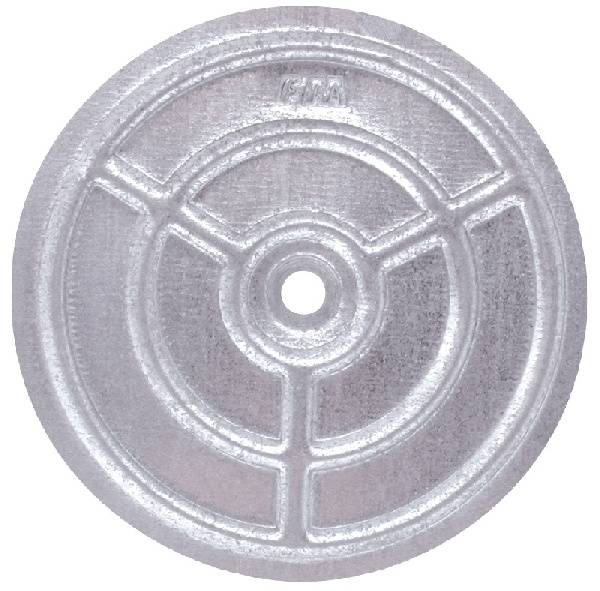

RPI Insulation Washer - For Insulation Panels
Verified by manufacturer 7 months ago
Steel washer for use with insulation panels.
Application
For use with insulation panels.
Description
Steel washer for use with insulation panels.
General information
Color | Silver |
Finish | Zinc plated |
Material | Steel |
Shape | Circle |
Width | 8 mm Guidance for specification option: Internal diameter. 70 mm Guidance for specification option: External diameter. |
Uniclass | |
CAWS | P10/42 Mineral wool insulation slabs fixed to backing wall P10/40 Insulation fitted betweenor to the face ofstuds P10/217 Insulation slabs fixed to backing wall P10/212 Insulation fixed across inner face of stud walling K11/795 Wall lining on metal framing K11/695 Rigid board insulation fixed as roof sarking K11/495 Rigid board insulation fixed through wall sheathing K10/35 Wall lining system (metal framing) K10/30 Metal stud K10/220 Proprietary suspended ceiling system K10/165 Wall lining system (metal framing) K10/155 Wall lining system (metal studs) K10/125 Metal stud partition system |
Specification data - Washers
Washers | |
Type | For use with insulation panels. |
Material | Steel. |
Finish | Zinc plated. |
Size | |
Inner diameter (minimum) | 8 mm. |
Outer diameter (minimum) | 70 mm. |
Thickness (minimum) | 6 mm (profile depth: 10 mm). |
