Roof Angel - Horizontal Safety Lifeline - Safety Line System

Verified by manufacturer 2 months ago

For general single ply membrane roofing

Bettersafe International Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

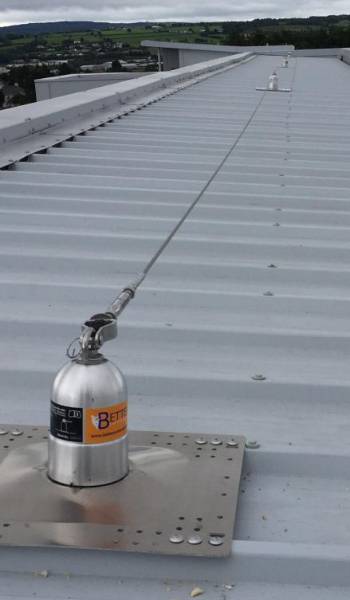

8 mm cable-based fall arrest and restraint anchorage system incorporating force absorption technology to minimize the loading passed to the structure in the event of a fall.

Jump to:
BIM object icon
+ 44 (0)1260 217437 Website

Application

Can be installed on every type of roofing system, from trapezoidal systems to single ply membranes, from concrete to traditional tiled roofing areas.

Standard and non-standard installation requirements available.

Description

8 mm cable-based fall arrest and restraint anchorage system incorporating force absorption technology to minimize the loading passed to the structure in the event of a fall.


Features and benefits:

  • Enables the end user to connect to the line to move freely without needing to disconnect from it to accomplish any movement; exclusive design of the anchors combined with its superior shock-absorbing materials means that the system can be top-fixed to most modern roof constructions.
  • Operates horizontally and along inclines and can easily accommodate three simultaneous users. Can also be used as a single point system and a single point Type A anchor.
  • No compromise to the integrity of the roof and, in the event of a fall, there is minimal damage to the roof sheets as all loads generated on the system are greatly reduced.
  • Stock reducing flexibility: Designed with fewer components than comparable systems.
  • Reduced installation time: Designed to be quick to install and is supplied fully assembled, including end anchors and intermediates.
  • Design flexibility: Easy to design for multiple situations including bespoke installations.
  • Highly corrosion resistant: All components are manufactured from grade 304 or 316 stainless steel, polyurethane and aluminium.
  • Reduced waste: Delivered to site with minimal packaging to reduce the environmental impact created by excessive waste.


Extensive testing procedures are designed to be in excess of the requirements of the standards. Tested to:

  • EN 795:2012 Type A;
  • EN 795:2012 Type C;
  • CEN/TS 16415:2013 for three users;
  • BS 8610;
  • AS/NZS.

General information

Color

Silver

Finish

Metallic

Material

Stainless steel

Polyurethane (PUR)

Aluminium

Shape

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

230 mm

Warranty description

20 year

Uniclass

Ss_80_30_25_35 Guided type fall arrest systemsPrimary
Ss_80_30_25_80 Single point anchorage fall arrest systems

CAWS

N25/220 Single point anchorage devices

N25/210 Personal fall protection equipment

N25/20 Single point anchorage devices

N25/10 Personal fall protection equipment

Specification data - Guided type fall arrest systems

System performance

Three users.

Pre-installation survey

Suitability of structure and fabric

Structural anchors

Include drawing/ schedule as required.

For wall fix arrangements, wall brackets are also required (see Ancillary equipment below).

End anchors on uncoated base.

  • End 1: RA-2002 swaged end clevis/ RA-2006 end anchor ring.
  • End(s) 2: RA-2001 swaged end tensioner/ RA-2006 end anchor ring.

Corner unit on uncoated base.

RA-2008.

Vary corner unit on uncoated base.

RA-2004.

Intermediate unit on uncoated base.

Thro plate assembly on uncoated base.

Anchor line

Insert requirements.

Ancillary equipment

None.

Rigid post with rain cap.

For use with concrete deck, including green roof installations, or through fix installation to steel.

RA-2015 wall brackets.

135°.

Anchor fixing

Toggle bolts with cupped washers and weathering detail.

  • For single ply membrane roofing with ply deck: cored holes as required.
  • For single ply membrane roofing with metal deck: cored holes and compression tubes as required.
  • For aerated or hollow core concrete (with or without insulation): cored holes and compression tubes as required.

To suit wall brackets.

Other.

Insert requirements.

Compatibility

Single ply membrane roofing (not PVC).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8.24 kg CO₂ eq/kg

Recyclability

100%

Recycled content

0 %
