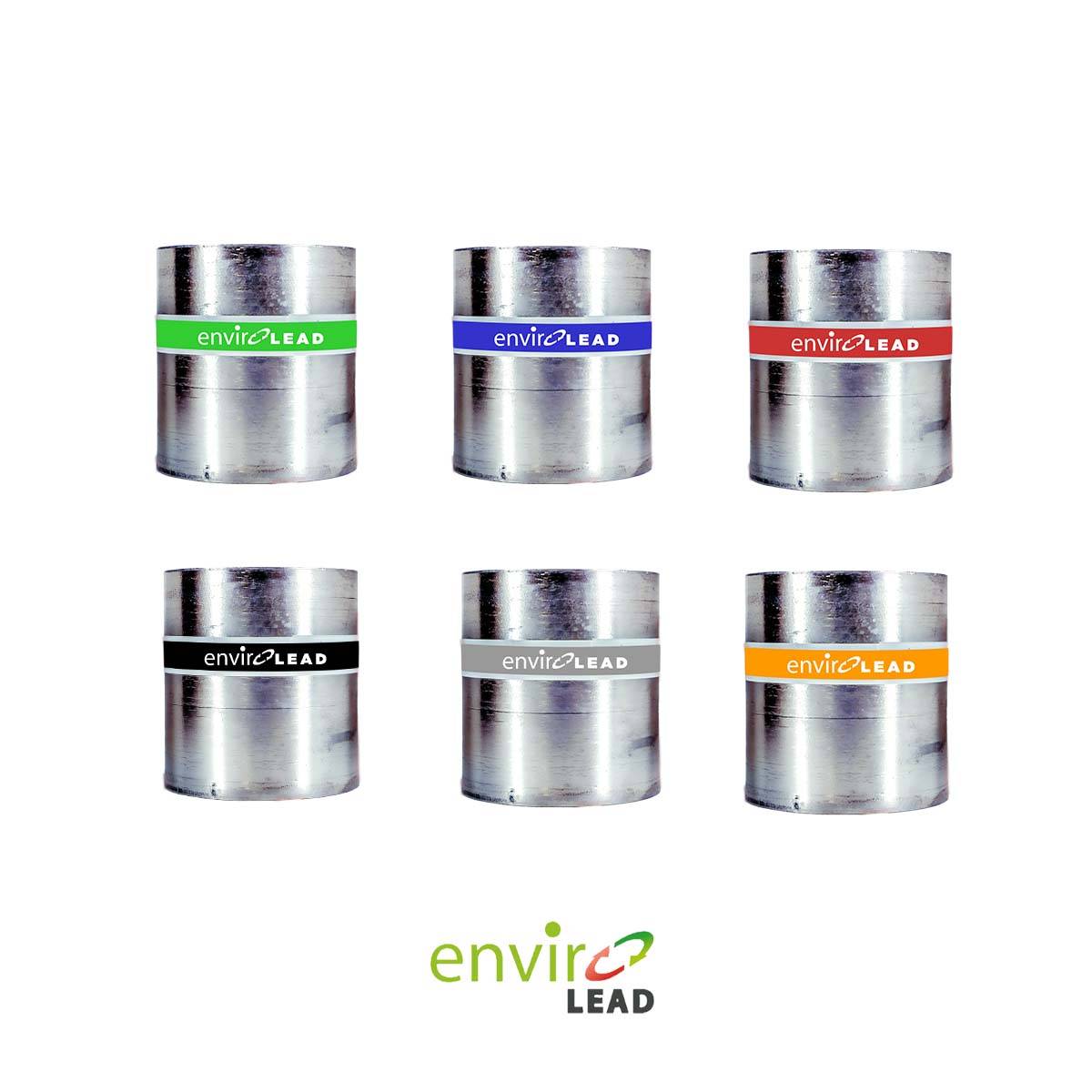

Enviro Lead - Rolled Lead Sheet

Description

Rolled Lead Sheet is manufactured to BS EN 12588 and made from 100% recycled raw material, is reliably sourced and processed by the latest rolling mill technology to ensure uniform thickness and maximum lifespan.


Can be supplied in any width from 150–2400 mm in codes 3, 4, 5, 6, 7 and 8 in standard lengths of 3 and 6 m.


Features and benefits:

  • Made from 100% recycled material.
  • Available in a range of widths and thicknesses.

General information

Color

Grey

Length

3000 mm

6000 mm

Width

Can be supplied in any width from 150–2400 mm.

Bespoke

Height

Bespoke

Uniclass

Pr_25_71_51_47 Lead rolled sheetsPrimary

CAWS

H71/110 Lead sheet fully supported roof covering

H71/130 Lead sheet fully supported wall covering

H71/150 Lead sheet fully supported covering to dormers

H71/160 Lead-covered roofing panels

H71/170 Lead-covered cladding panels

H71/180 Lead-wrapped panels

H71/250 Weathering to

H71/27 Soakers for mitred hips to slate/ plain tile roofs

H71/30 Apron flashings

H71/310 Ridge/ hip rolls to lead roofs

H71/315 Ridge/ hip rolls to slate roofs

H71/35 Cover flashings

H71/41 Soakers and step flashings

H71/410 Apron flashings

H71/420 Cover flashings

H71/430 Cover flashings

H71/440 Soakers and step flashings

H71/45 Step and cover flashings

H71/450 Step and cover flashings

H71/452 Single-step and cover flashings

H71/454 Single-step flashings

H71/456 Step flashings with secret gutter

H71/458 Step and cover flashing with secret gutter

H71/460 Change of roof pitch flashings

H71/470 Flashings

H71/472 Chimney flashings to slate/ plain tile roofs

H71/474 Chimney flashings to single lap tile roofs

H71/476 Chimney damp-proof course

H71/478 Chimney damp-proof course

H71/490 Vertical tiling/ Slating bottom edge flashings

H71/492 Vertical tiling/ Slating top edge flashings

H71/494 Vertical tiling/ Slating side abutment step flashings

H71/496 Vertical tiling/ Slating angle soakers

H71/497 Lead damp-proof course/ Cavity tray at raking abutments

H71/498 Combined lead damp-proof course/ Cavity tray and cover flashing at horizontal abutments

H71/5 Lead sheet fully supported covering to dormers

H71/50 Flashings

H71/52 Chimney flashings

H71/54 Vertical tiling/ Slating bottom edge flashings

H71/55 Vertical tiling/ Slating top edge flashings

H71/56 Vertical tiling/ Slating side abutment step flashings

H71/57 Vertical slating angle soakers

Specification data - Lead rolled sheets

Standard

-

Material

To BS EN 12588.

Thickness

1.25 or 1.32 mm (code 3).

1.75 or 1.8 mm (code 4).

2 or 2.24 mm (code 5).

2.5 or 2.65 mm (code 6).

3 or 3.15 mm (code 7).

3.55 mm (code 8).

Width

Can be supplied in any width from 150–2400 mm. Insert requirements.

-

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

100 %

Literature

ALM Nominal Weight Chart

ALM Nominal Weight Chart

The Craftsman's Guide to Rolled Lead Sheet (Edition 8)

The Craftsman's Guide to Rolled Lead Sheet (Edition 8)
