Description

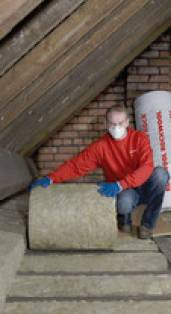

ROCKWOOL Roll, Twin Roll and Roll Batt products provide effective, medium density thermal insulation with acoustic properties and fire resistance. The products are suitable for roof spaces in all types of buildings or to overlay ceiling tiles in suspended ceilings. ROCKWOOL Roll consists of a single 1200 mm width roll, TwinRoll consists of two 100 mm thick layers in a pack, pre-split to deliver two thickness application options, and Rollbatt is pre-cut insulation rolls, in either 400 or 600 mm widths.

Features:

  • Lightweight, water repellent and rot proof stone wool insulation, suitable for installation between roof and floor ties/ joists in domestic, commercial and industrial buildings.
  • Offers excellent thermal, acoustic and fire protection insulation.

Advantages:

  • Multi-application products.
  • Provides superb fit.
  • Outstanding thermal and acoustic properties.
  • Exceptional fire resistance.
  • Roll is easy to cut for use between joist spacings.
  • Roll batt is pre-cut in 400 and 600 mm widths.
  • Twin Roll can be used as a single 200 mm layer over joists or separated for use as a 100 mm roll between joists.

Rockwool insulation products do not contain blowing agents with an ozone depletion potential (ODP) or global warming potential (GWP), are CFC-HCFC-HFC free and 97% recyclable. They will not react with metal components or cause loss of plasticizer from PVC cables and pipes.

General information
Shape

Rectangle

Uniclass 2015
Mineral wool slab insulation (Pr_25_57_06_56)Primary
Specification data - Mineral wool slab insulation
Product Reference

ROCKWOOL Roll

ROCKWOOL Roll Batt

ROCKWOOL Twin Roll

Slab size

400 x 3650 x 150 mm

RollBatt.

400 x 4800 x 100 mm

RollBatt.

600 x 3200 x 170 mm

RollBatt.

600 x 3650 x 150 mm

RollBatt.

600 x 4800 x 100 mm

RollBatt.

1200 x 2500 x 220 mm

Roll.

1200 x 2750 x 100 mm

Twin Roll.

1200 x 3200 x 170 mm

Roll.

1200 x 3650 x 150 mm

Roll.

Standard product features

Thermal conductivity:

0.044 W/mK.

Reaction to fire class:

A1 to BS EN 13501-1.

Standards:

  • Rockwool Rolls are CE, Key and Kite marked in accordance with BS EN 13162.
  • Non-combustible, achieving a classification of A1 in accordance with BS EN 13501-1.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
ARCHICAD
- 1.0
Vectorworks
- 1.0
AECOsim
- 1.0
Revit
Revit 2016 4 2.0
Download now from NBS National BIM Library
