Description

A continuous corrosion monitor with alarm function for heating systems.

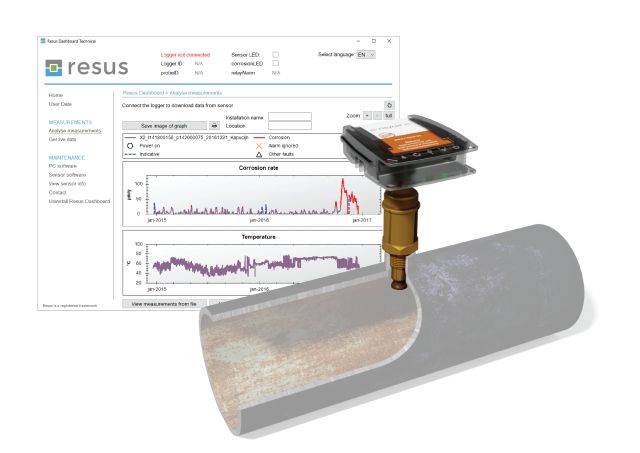

Mounted perpendicular to the pipe with the threaded connector 'X-fix', which places the metal coupon at the tip of the probe in the water flow. The oxidation of this coupon is representative of the uniform corrosion with the system. The logger records the corrosion rate against time and warns of inadmissible values or a defect. The memory can be read out on a computer.

General information
Features

Visual signals: Various LEDs for display of operating and alarm status

Output: Volt-free contact for building management system, remote surveillance, other transmitter (SMS module, audible alarm, flashing light), and shutting down of the boiler

Alarm: Indicates corrosion rate too high (adjustable), fault in the corrosion monitor and end of service life

Uniclass 2015 Corrosion monitors (Pr_80_51_51_15)
Specification data
Product Reference

Risycor X2 + X-fix threaded connector

Standard product features

Features:

  • Visual signals: Various LEDs for display of operating and alarm status.
  • Output: Volt-free contact for building management system, remote surveillance, other transmitter (SMS module, audible alarm, flashing light), and shutting down of the boiler.
  • Alarm: Indicates corrosion rate too high (adjustable), fault in the corrosion monitor and end of service life.

Technical characteristics:

- Physical:

  • Pressure range: 0–6 bar.
  • Temperature range: 5–85°C, integrated temperature compensation.
  • Environment: 0–45°, no condensation.
  • Storage: 0–35°C.

- Electrical:

  • Mains adaptor: CEE 7/16, 230 V a.c., 50 Hz. Output voltage 5 V d.c.
  • Power consumption: 6 W.
  • Volt-free contact: Nominal; 24 V a.c., d.c. 100 mA. Maximum: 48 V a.c., d.c., 2 A, 60 W.
  • Ingress protection: IP52.

- Other:

  • Continuous, systematic data storage: Minimum of 10 years.
  • Data storage: Every 7 hours.

- Dimensions:

  • Risycor X2 logger: 90 x 100 x 35 mm.
  • Risycor X2 probe: 20 mm diameter x 135 mm.
  • X-fix threaded connector: 34 mm diameter x 70 mm with R1/2" thread (maximum 25 mm deep).
  • Mains adaptor: 75 x 59 x 6 mm.
  • Power cord length: 1500 mm.

Regulatory compliance:

Risycor X2 conforms to the following product specifications and regulations:

  • EMC: EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 and EN 61000-4-11.
  • LVD: EN 62386-1, EN 60950-21, EN 60950-22 and EN 60950-23.
  • RoHS: EN 50581.

This product complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU and carries the marking accordingly.
