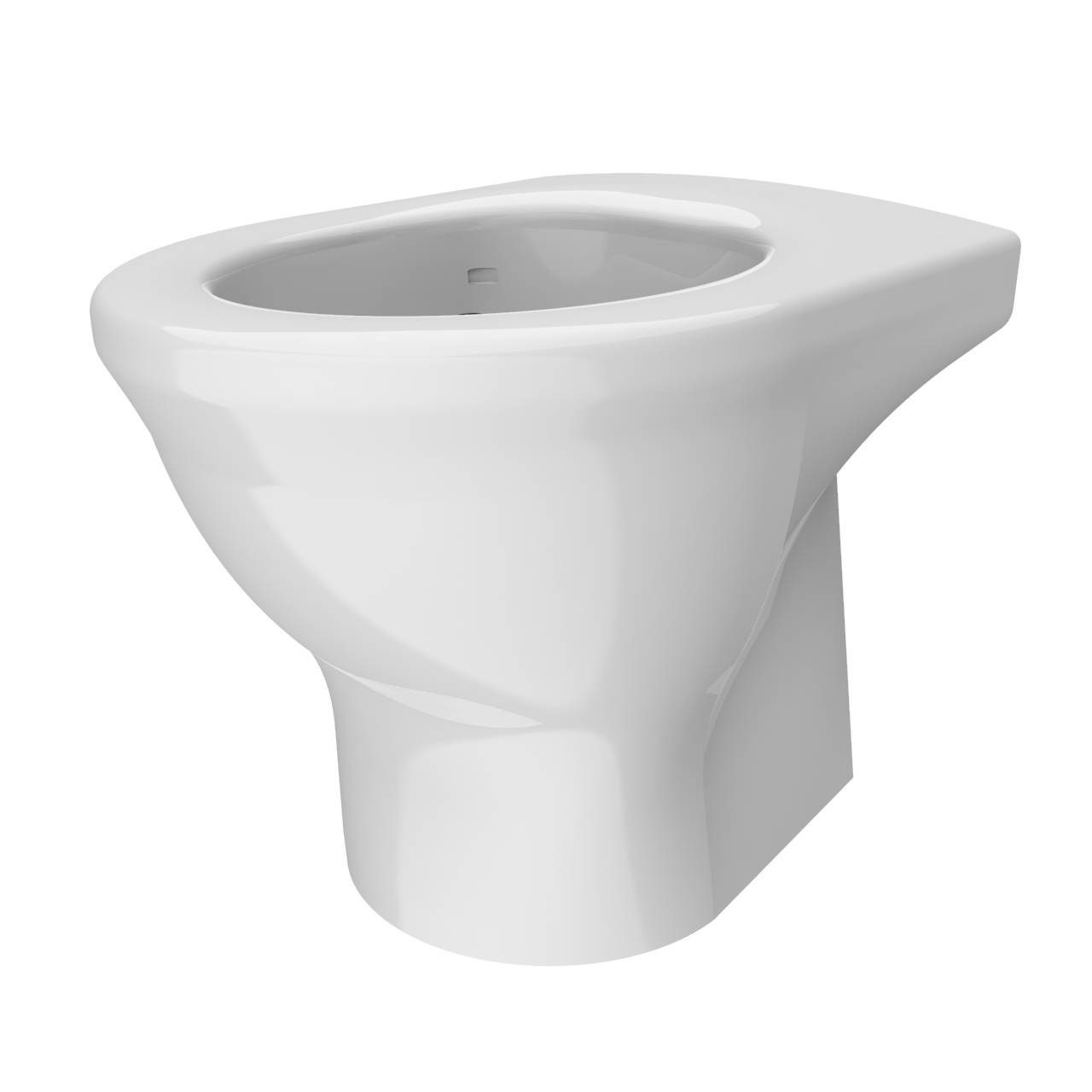

Resan® WC Pan - Standard Height - Wall Fixed [V2]
Verified by manufacturer 4 months ago
White Seat – 333986
White Seat – 333986
Bolt to wall WC pan.
Application
Suitable for public washrooms, care homes and disabled washroom facilities.
Description
Damage resistant standard height toilet pan with polished resin for a gloss effect.
A WC pan with rimless flush design and no ledges or steps with the internal bowl shape, reducing the chances of staining sanitaryware as water is prevented from staying on surfaces where limescale can build up.
The contrasting colour seat (when specified) is integral to the WC pan. It is permanently bonded, non-moveable or removable and is available in both blue and grey colours, with other bespoke colours available during project consultation.
All coloured seats are cast of the same material as our WC pans and the colour is throughout the product, therefore if it is scratched, it can simply be refinished on site.
Features and benefits:
- BREEAM rated.
- BS EN 997 6/4 litre and 5/3 flush approval.
- CE marked.
- Contrasting colour integral seats are available with a range of Resan WC Pans.
- Standard white WC pans are cast in a single piece, reducing join joints which are difficult to clean and enhancing strength.
- The waste spigot height is 229 mm.
General information
Color | White Grey Blue |
Finish | Gloss Coated Matt |
Material | Resin |
Shape | Other |
Length | 499 mm |
Width | 395 mm |
Height | 427 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Form | Back-to-wall. |
Pan height | 427 mm. |
Materials | |
Body | Resin. |
Finish and colour | White, gloss effect.White, matt.White, polished. |
Water supply, outlet and seat holes | |
Outlet | Horizontal back outlet.Guidance for specification option: The waste spigot height is 229 mm. |
Integral accessories | Integral seat, white. |
Fire resistance | To BS 476-6 and BS 476-7, Class 0 and Class 1. Guidance for specification option: Non-flammable. |
Physical properties | To ISO EN 19712-3-2007, Rated 5 for durability, stain resistance and cigarette burns. |
Flush volume | To BS EN 997, 6/4 L and 5/3 L flush approval. |
Depth | 499 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Thomas Dudley Products and Parts Catalogue
Resan Sanitaryware Brochure
Resan Pan Standard Height_All Options
Resan Pan Standard Height Pan_Wall Fixed
Thomas Dudley Specification Brochure
