REGUPOL® Vegetation Control 767 - Polymeric membrane

Verified by manufacturer 1 day ago

Rubbertech Ltd Product certifications:
  • ISO 14025

    Certificate type

  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • Product Environment Footprint (PEF)

    Certificate type

  • Reaction to Fire Classification

    Certificate type

  • Reaction to Fire Classification

    Certificate type

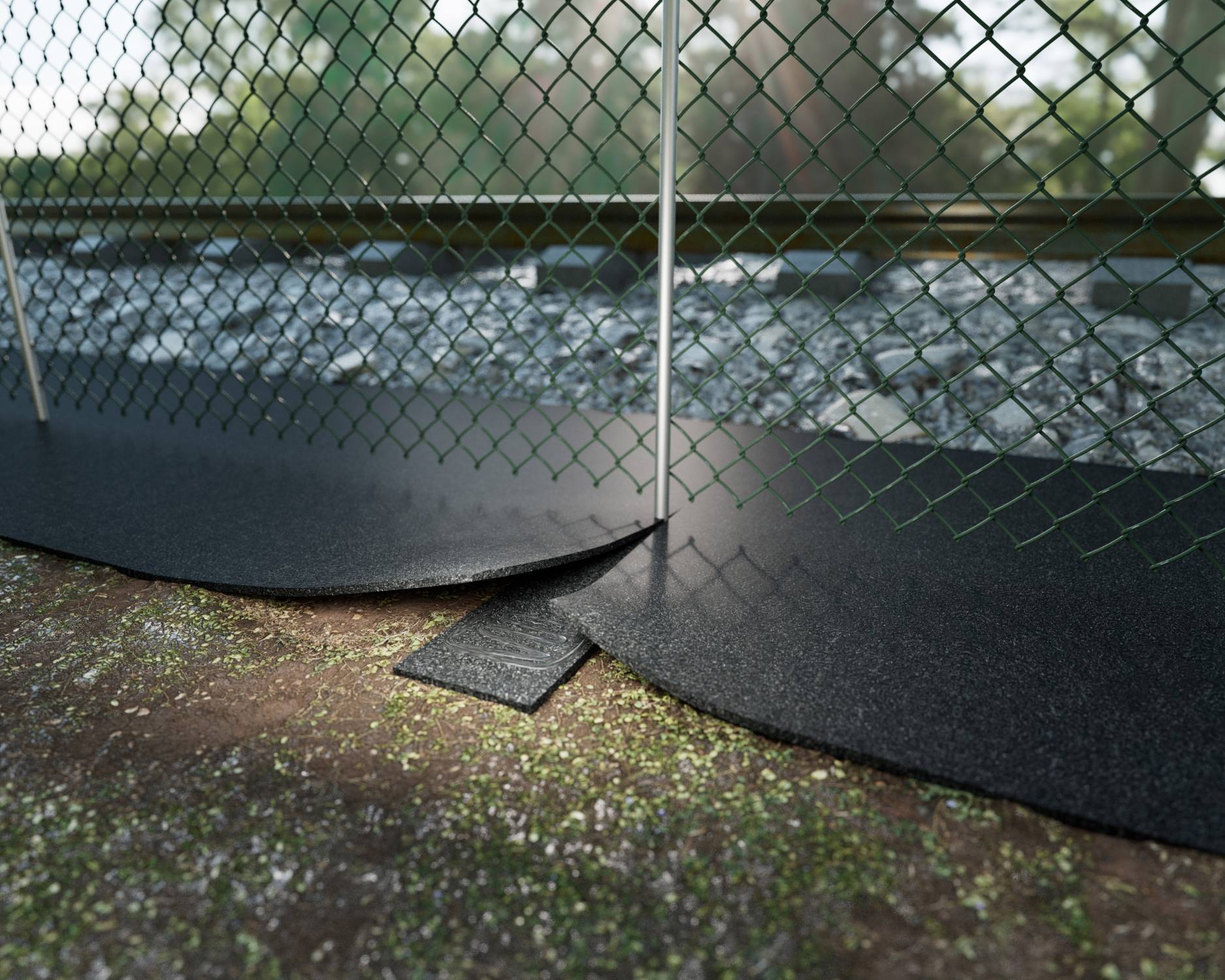

Regupol vegetation control 767 prevents unwanted vegetation by inhibiting the growth and depriving plants of UV light subsequently. Can be applied to various areas of application.

Jump to:
Request BIM
+44 (0)1824 702666 Website

Application

Vegetation control suitable for the following applications:

  • Inaccessible/sensitive areas
  • Railway construction
  • Airports
  • Civil projects
  • Plant nurseries and forestry
  • Pipeline transportation of liquids and gases (pipelines)
  • Telecommunications facilities
  • Transformer substations
  • Edging on roads and transport routes
  • Wind parks
  • Work paths
  • Barrier fences and other fencing systems
  • Wherever unwanted plant growth needs to be prevented

Description

Growth-Inhibiting mats

Less herbicide, less mowing, more environmental protection and sustainability

Our REGUPOL vegetation control 767 growth-inhibiting mats are the ecological way to prevent unwanted vegetation.

The deprivation of UV light prevents the plants under the mats from growing. At the same time, the mats are permeable to water, which preserves microbial life in the soil and prevents erosion.

Vegetation Control 767 is used, among other things, on high-speed railway lines as well as track and signalling installations, on airport signage installations and under fencing systems - their high weight per unit area and their flexibility allow the mats to lie securely and positively on the substrate, while their material composition make them rot-proof. Their use eliminates the need for unpopular herbicides, as well as frequent and time-consuming mowing.

Vegetation Control 767 fire is considered a "hard roofing" product in accordance with abP P-MPA-E-21-505, while at the same time consisting of up to 95 percent recycled and reclaimed polymeric raw materials. This is why REGUPOL was awarded the Environmental Economy Prize.NRW in 2020 and the Efficiency Prize NRW in 2021.

It is a successful example of an efficiently functioning circular economy.

The products are developed and intended for the application described here. Use of the product for other purposes may lead to safety issues.

----------------------------------------------------------------------------------------------

PRODUCT VARIATIONS

Vegetation Control 767:

Environmentally friendly and reliable prevention of unwanted plant growth

The REGUPOL vegetation control 767, the growth-inhibiting mat from REGUPOL, prevents unwanted vegetation and eliminate the need for environmentally damaging herbicides. Time-consuming mowing is reduced to a minimum.

Vegetation Control 767 is a well-proven product for inhibiting the growth of unwanted vegetation. By depriving them of UV light, any plants underneath the mats are prevented from growing. However, the mats are also water permeable and so they protect microbial life in the soil and prevent erosion.

Their use eliminates the need for unpopular measures, such as using herbicides, sustainably prevents the growth of unwanted vegetation and renders frequent mowing unnecessary.



The proportion of recycled material in our Vegetation Control 767 is over 95%, making it one of our “top recycling products”.

Vegetation Control 767 is used wherever plant growth needs to be prevented. It has been used successfully for over 20 years, e.g. on tracks and signalling systems or as a walkway surfaces. In these locations, it’s not only the mats’ effective prevention of unwanted vegetation that’s been convincing, but also their high level of slip-resistance. Security areas, such as perimeter fences and other barrier fencing systems can be effectively kept free from unwanted vegetation by our vegetation control mats.

Vegetation Control 767 Fire:

Preventing unwanted vegetation effectively and sustainably

REGUPOL Vegetation Control 767 Fire, the growth-inhibiting mat with fire protection, prevents unwanted vegetation and eliminate the need for environmentally damaging herbicides.

Vegetation Control 767 Fire is a tried and tested product for preventing the growth of unwanted vegetation. The elimination of UV light inhibits the growth of plants underneath the mats. At the same time, the mats remain permeable to water, so that microbial soil life is preserved and erosion is prevented. This method eliminates the need to use herbicides, prevents unwanted vegetation and makes regular and costly mowing unnecessary.

With a recycling rate of over 95%, REGUPOL Vegetation Control 767 Fire is one of our "Top Recycling Products".

Solar plants on flat green roofs are reliably and sustainably kept protected from unwanted vegetation by Vegetation Control 767 Fire.

Using the mats makes maintenance and care underneath the photovoltaic systems much easier, especially as these areas are often difficult to access. Solar panel output losses due to shading by long grass can therefore be ruled out.

The material of Vegetation Control 767 Fire has a flame-retardant finish and meets the fire class Broof(T1) in accordance with DIN EN 13501-5, as well as the requirements for resistance to flying sparks and radiant heat in accordance with DIN CEN/TS 1187. It is classified as "hard roofing" in accordance with to abP P-MPA-E-21-505.

Features and benefits:

  • For inaccessible/sensitive areas
  • Delivery in sheets and cut to size
  • Saves frequent and time consuming mowing, makes herbicides unnecessary
  • Highly compacted, highly resilient, resistant to microbes, pressure and temperature, permanently elastic, resistant to ageing, vapour-permeable, water-permeable, rot-proof
  • Largely resistant to acids and alkalis
  • Soil micro-organisms are preserved
  • Simple and efficient laying or installation
  • 'Fire' Version - General Building Authority Test Certificate P-MPA-E-21-505:
  • 'Fire' Version - Broof(T1) according to DIN EN 13501-5, test according to DIN CEN/TS 1187, classified as "hard roofing"

Technical information:

Product

Elastic rolls of Elastomer grain compound for preventing vegetation growth

Material

PUR-bound rubber granulate mats/flame retardant

Dimensions

10,000 mm x 1,250 mm x 8 mm

General information

Color

Black

Finish

Anti-slip

Material

Polyurethane (PUR)

Rubber

Manufacturer guidance

PUR-bound rubber granulate mats/flame retardant.

Shape

Other

Length

10000 mm

Width

1000 mm

1250 mm

1500 mm

Height

8 mm

10 mm

Warranty description

Two year

Uniclass

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

Q20/170 Geotextile filter/ separator membrane

Q25/64 Geotextile sheet

Q25/365 Geotextile sheet

D20/58 Geotextile sheet

D20/550 Geotextile sheet

J44/230 Geotextile substrate lining

J44/280 Geotextile protective lining

SKU Code

REGvegctrl

Specification data - Polymeric membranes

Classification data

Material

Polyurethane (PUR) bound rubber granulate mats.

Standard

To BS EN 13501-1 and BS EN 15804.

Third-party certification

EPD certificate.

Performance characteristics

-

External fire performance

Not required.
Broof(t1).

Reaction to fire

To DIN EN 13501, Class E (normal flammability).

Watertightness

To DIN 18035-6, approx. 10.71 L/m²/s (10 mm thickness).

Tensile properties

To DIN EN ISO 1798, approx. 0.75 N/mm² (8 mm), approx. 0.80 N/mm² (10 mm).

Environmental performance requirements

-

Environmental rating

To ISO 9001.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

To ISO 14021, 95%.

Integral backing fleece

Not required.

Width (minimum)

1000 mm.
1250 mm.
1500 mm.

Thickness (minimum)

8 mm.
10 mm.

Colour

Black.

Accessories

Ground nails and washers.

Temperature resistance

-40°C to 115°C.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Manufacturing plant location

Material

Polyurethane (PUR)
Rubber

Manufacturer guidance

PUR-bound rubber granulate mats/flame retardant.

Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Self-declared

Stage
Normalised unit (kg CO₂ eq/kg)
Declared unit (kg CO₂ eq/m²)
Stage:A1–A3 ('Production stage')
Normalised unit : 1136.364 (kg CO₂ eq/kg)
Declared unit : 1

Lower emissions

Recyclability

99

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Expected Life

Ten year

Product certifications

Product certifications

ISO 14025

ISO 14025

Environmental product declaration - REGUPOL Rolls

Cradle to Cradle Certified

Cradle to Cradle Certified

REGUFOAM solutions for acoustical, vibration and noise abatement - REGUPOL Products

Product Environment Footprint (PEF)

Product Environment Footprint (PEF)

New Life - REGUPOL Products

Reaction to Fire Classification

Reaction to Fire Classification

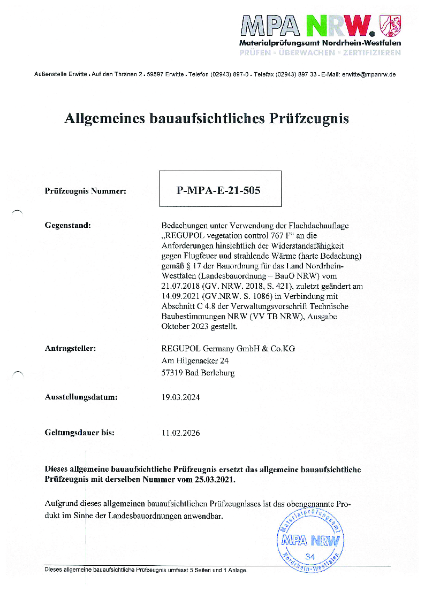

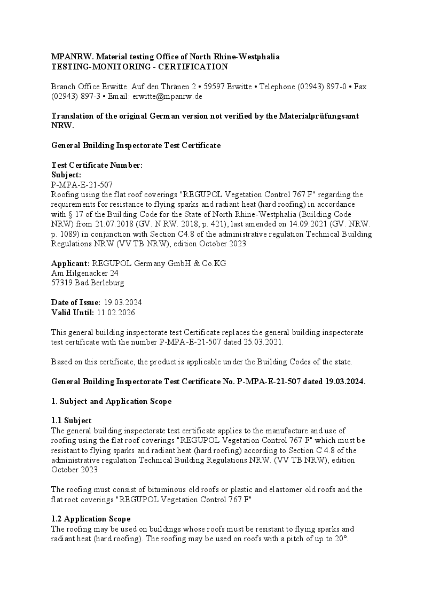

Fire Classification Test - English Translation - REGUPOL Vegetation Control 767 Fire

Reaction to Fire Classification

Reaction to Fire Classification

Fire Classification Test in German - REGUPOL Vegetation Control 767 Fire

Literature

REGUPOL Vegetation Control 767 - Laying Instructions

REGUPOL Vegetation Control 767 - Laying Instructions

REGUPOL Vegetation Control 767 - Data Sheet

REGUPOL Vegetation Control 767 - Data Sheet

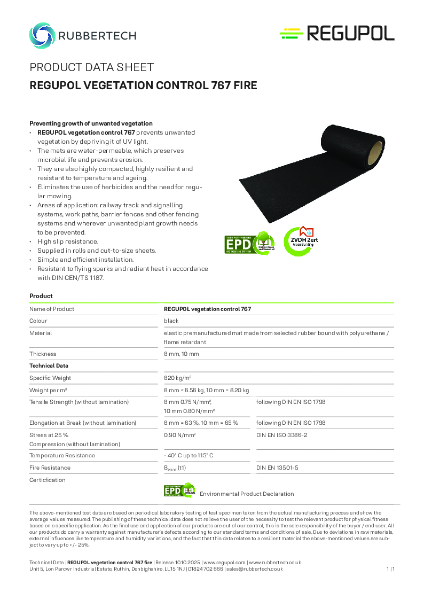

REGUPOL Vegetation Control 767 Fire - Data Sheet

REGUPOL Vegetation Control 767 Fire - Data Sheet

Deforestation Free products - Self Declaration - REGUPOL

Deforestation Free products - Self Declaration - REGUPOL
