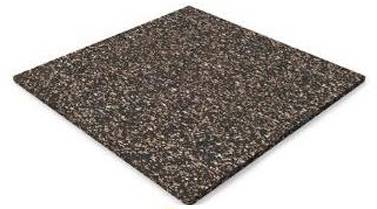

REGUPOL Sonus Multi 3 (REGUPOL 4515 Multi 3 mm) - Acoustic Underlay

Name: REGUPOL Sonus Multi 3 (REGUPOL 4515 Multi 3 mm) - Acoustic Underlay
Brand: CMS Danskin Acoustics
SKU: gSuyVdhxBUtHmT83fH61hs

Verified by manufacturer 3 days ago

CMS Danskin Acoustics

A 3 mm acoustic underlay designed to reduce impact sound beneath a range of floor finishes.

Jump to:

Request BIM

+44 (0)1925 577711 Website

Application

Suitable for use in developments where effective sound control is essential and interior design flexibility is a priority, including:

Apartments.
Educational buildings.
Hotels.
Commercial spaces.
Leisure facilities.
Bespoke architectural projects.
Care homes.

Description

REGUPOL Sonus Multi 3 is a tough and resilient 3 mm thick acoustic underlay, designed to reduce impact sound beneath a range of floor finishes while delivering acoustic performance without ageing or collapsing.

Features and benefits:

Suitable for a variety of floor finishes.
Offers long-term performance without collapse or bottoming out under high point loads.
Resistant to ageing and deformation.
Compatible with underfloor heating.
Supplied in rolls without cardboard cores.
Quick and easy to install.
Manufactured using recycled materials.

Certification:

REGUPOL sonus multi 3 meets the requirements of Approved Document E (England and Wales), Technical Booklet G (Northern Ireland) and Example Construction floors under Section 5 (Scotland).
Manufacturer EPD available upon request.
Certified by GreenCircle and ISO 9001, ISO 45001, ISO 14001, and ISO 50001.

General information

Color	Black
Finish	Smooth
Material	Polyurethane (PUR) Foam Cork
Shape	Rectangle
Length	20000 mm
Width	1150 mm
Height	3 mm

Uniclass	Pr_25_57_06_71 Resilient layer insulationPrimary
CAWS	M40/5 Tiling M40/110 Tiling M50/15 Carpet tiling M50/25 Carpeting M50/150 Sheeting K21/20 Composite laminated flooring K21/10 Wood laminate flooring M50/170 Carpeting M50/130 Carpet tiling M50/20 Sheeting K21/146 Laminate flooring K21/145 Composite laminate flooring K21/115 Wood laminate flooring

Specification data - Resilient layer insulation

Classification data
Third-party certification	Green Circle and EPD.
Material	PUR foam and cork.
Density	Approx. 470 kg/m³.
Thickness	3 mm.
Fire performance	To BS EN 13501-1, Class E. Manufacturer guidance Available with Bfl-s1 classification upon request. Consult manufacturer for details and insert requirements.
Sound insulation rating	- Manufacturer guidance Refer to manufacturer's literature for floor assemblies and acoustic performance.
Roll size	1150 x 20 000 mm. Manufacturer guidance Width x length.
Weight	Per roll: 32.5 kg. Per m²: 1.4 kg/m².
Compressive strength (minimum)	To BS EN 3386-2, >1200 kPa. Guidance for specification option: 25% compression.
Elongation at break	To BS EN 1798, ≥20%.
Tensile strength	≥0.8 N/mm².
Thermal conductivity	To BS 4745:2005, 0.086 W/mK. Guidance for specification option: Tog rating of 0.39.
Temperature resistance	-20 to +60°C.

Sustainability data

Country of product manufacture	Germany
Material	Polyurethane (PUR) Foam Cork
Recyclability	Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Manufactured using recycled materials.
