REGUPOL Rubber Interlocking Tile | Walkway Aluminium 30mm
Verified by manufacturer 2 months ago
Roofing and pavement tiles.
Application
Key Applications Include:
- Single ply / EPDM / liquid roofing systems
- Access paths
- Terrace / balconies
- Adjacent to CAT ladders / access
- Routeways for solar installations
- Routeways for M&E access

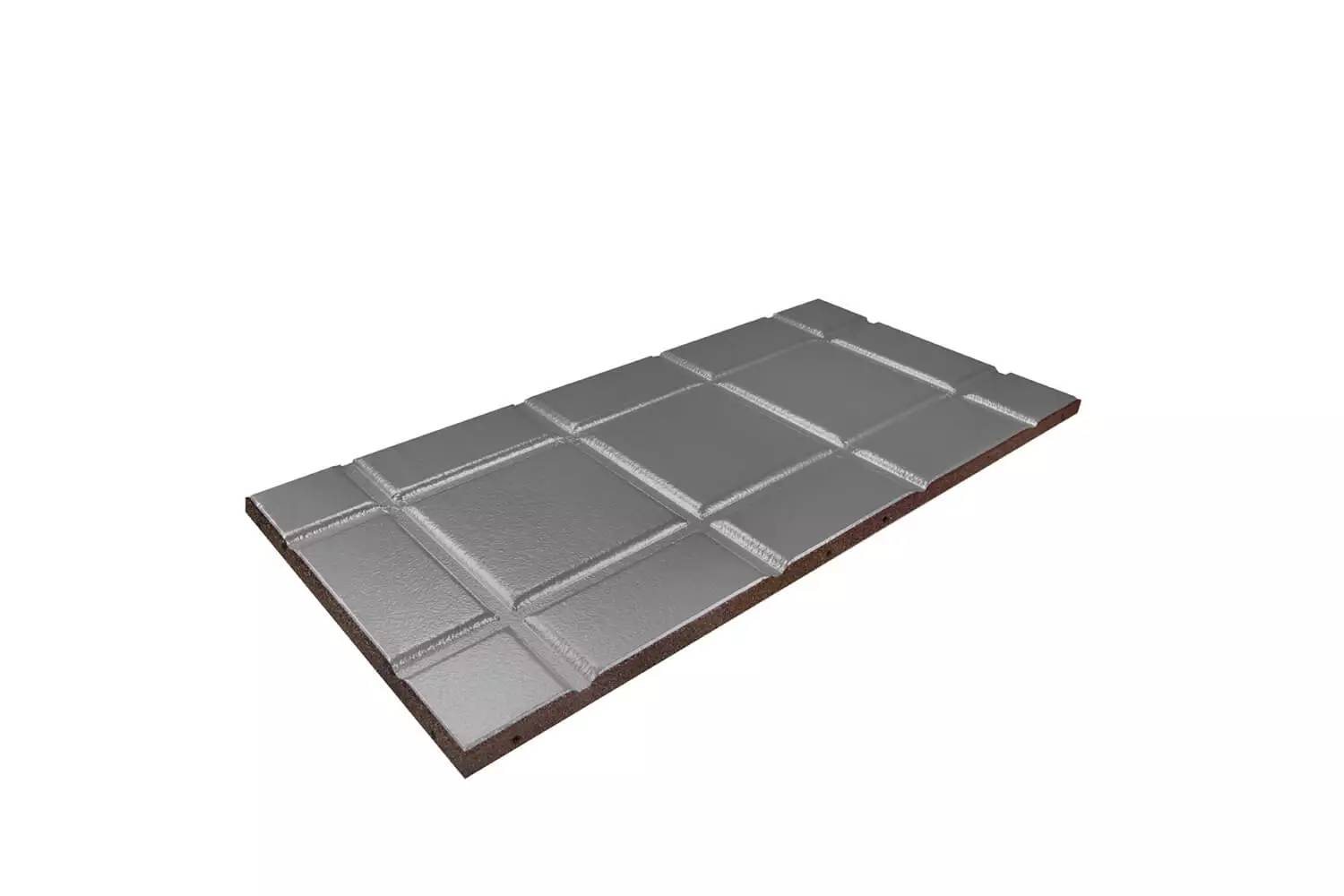

Description
Regupol walkway alu elastic roof and paving tiles has an aluminium lamination on the underside which prevents plasticiser migration in waterproofing systems that are not rubber compatible.
They are used on solar, RLT, lightning protection or any other technical installations that require regular maintenance. Thanks to a simple dowel plug-in system, the walkway tiles are easy to install and ready for use immediately.
Regupol walkway alu is flame-retardant is resistant to flying sparks and radiant heat, in accordance with DIN CEN/TS 1187:2012-03. This visual contrast to the roof sealing means they can also mark the maintenance paths very clearly, even when visibility is poor. In wet conditions, Regupol walkway allows good drainage and is non-slip.
It is classified as a "hard roofing" in accordance with
abP P-MPA-E-21-507.
Key Benefits:
- Aluminium backing prevents plasticiser migration
- Integrated drainage channels
- Doul interlocking system
- Can be cut to suit
- UV stable
- Available in a variety of colours
- Impact absorbing and porous
- Provides fire and smoke resistance
General information
Color | Red Brown Black Green |
Finish | Anti-slip |
Material | Polyurethane (PUR) Rubber Foil |
Shape | Rectangle |
Length | 1000 mm |
Width | 500 mm |
Height | 30 mm |
Warranty description | Five year |
Uniclass | |
CAWS | J42/485 Membrane walkway J42/10 Warm deck roof covering |
Product range |
Specification data - Membrane walkways
Material | Polyurethane (PUR) bonded rubber granules, lined with a triplex aluminium foil. |
Width (minimum) | 500 mm. |
Thickness (minimum) | 30 mm. |
Colour | Red.Black.Green. |
Water permeability | To DIN 18035-6, 0.5 cm/sec. |
TensileStrength | To DIN EN ISO 1798, 0.6 N/mm². Manufacturer guidanceWithout lamination. |
Elongation at break | To DIN EN ISO 1798, 50%. Manufacturer guidanceWithout lamination. |
Fire resistance | To DIN EN 13501-5, Broof(t1). |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | 99% Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Literature
Regupol Walkway Aluminium 30 mm Data Sheet
Regupol® Walkway - Installation Guidance
