Reduc Micro 21 - Medium density fibreboard
Application

Can be used throughout the building, including kitchens and bathrooms. Applications include:

  • Flats and apartments.
  • Hotels and hostels.
  • Sheltered housing.
  • Social housing.
  • Nursing and care homes.
  • Student accommodation.

Description

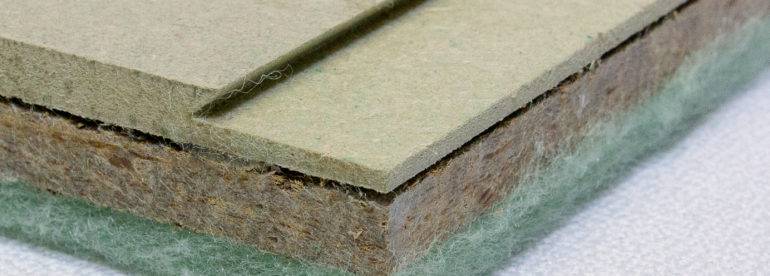

Acoustic overlay flooring board designed to damp vibration and attenuate both airborne sound and impact noise passing through floors with minimum loss in room height. The substrate layers of moisture-resistant MDF and fibreboard or particleboard are separated by visco-elastic sound damping strips. The underside incorporates a resilient layer of acoustic felt, which provides mechanical isolation from the existing floor structure.

Features and benefits:

  • Moisture-resistant upper surface.
  • Acoustic felt on the underside will contour over minor irregularities on the floor surface.
  • Suitable for use on new and existing timber and concrete floors.
  • Suitable for use where floor to ceiling height is limited.

Components:

  • 6 mm-thick medium density fibreboard (MDF) with overlap joint.
  • Visco-elastic strips.
  • Fibreboard: REDUC® Micro 17: 18 mm-thick; REDUC® Micro 21: 22 mm-thick.
  • Polyester felt.

Applications:

Can be used throughout the building, including kitchens and bathrooms. Applications include:

  • Flats and apartments.
  • Hotels and hostels.
  • Sheltered housing.
  • Social housing.
  • Nursing and care homes.
  • Student accommodation.

Acoustic performance:

Consult manufacturer's literature for details. Subject to REDUC® products being used within recommended flooring constructions.

General information

Uniclass 2015

Pr_25_71_97_53 Medium-density fibreboardsPrimary

CAWS

K11/125 Battened particleboard floating floor

K11/20 Battened particleboard floating floor

K11/225 Particleboard floating floor

K11/245 Cement bonded particleboard floating floor

K11/25 Particleboard floating floor

Show more
Specification data - Medium-density fibreboards

Product Reference

REDUC® Micro 17

REDUC® Micro 21

Standard product features

Board size (l x w):

1175 x 575 mm.

Laid area per board:

0.675 m².

Product Options

Product reference:

- REDUC Micro 17:

  • Thickness: 17 mm.
  • Weight: 9.1 kg/m² (6.5 kg per board).

- REDUC Micro 21:

  • Thickness: 21 mm.
  • Weight: 18 kg/m² (12 kg per board).

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 1.3
Revit
Revit 2016 2 2.0
