Automatic hand dryer.

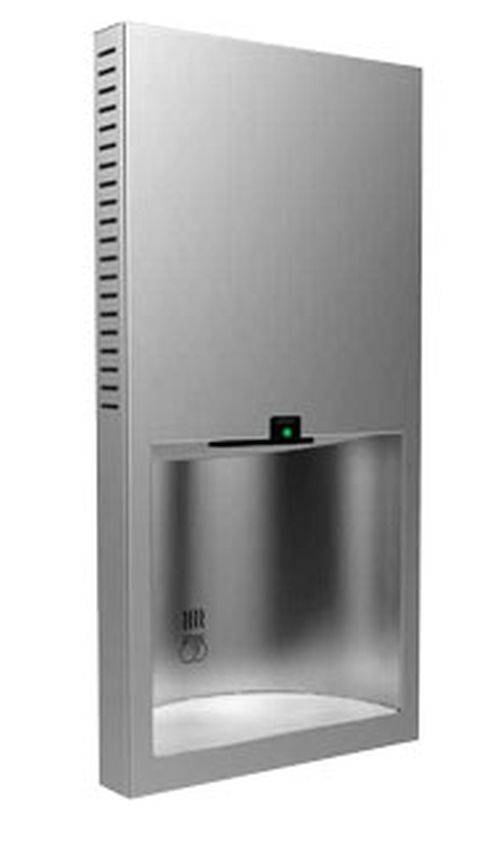

Recessed automatic hand dryer with a 152 mm deep drying alcove to capture dripping water. Manufactured from 1.4301 (304) grade stainless steel with all-welded construction; exposed surfaces have a satin finish. The cover is 18-gauge (1.2 mm) thick with a 51 mm projection from the wall.
All welded corners secured to cabinet with vandal-resistant screws. Directed air nozzle prevents the dryer from splashing water on the floor and/ or user.
The hand drying alcove is equipped with a ceramic water-absorbent surface to capture and evaporate water. Fan housings are fire-retardant moulded black plastic.
Five-year warranty on all parts except motor brushes and absorbent material. CE marked and cUListed.
Cabinet: 1.4303 (304) grade heavy gauge stainless steel. All welded construction. Exposed surfaces have a satin finish
Cover: 1.4303 (304) grade stainless steel
Corners are welded for maximum rigidity. Equipped with air inlets on sides. Secured to cabinet with two vandal-resistant screws
Hand drying alcove: 250 x 255 x 150 mm, curved back with a ceramic water-absorbent surface to capture and evaporate excess water
Motor/ fan: Thermally protected 1/7 hp (8000 rpm) motor, on a resilient mounting
Heating element: Coiled nichrome heating element mounted on a mica frame, protected by integral automatic thermal overload device. Heats the air without hot spots and remains inaccessible to vandals
N13/472 Hand dryers
Recessed Automatic Hand Dryer B-3725
Standard product features
Overall size (h x w x d):
610 x 300 x 100 mm.
Activation sensor mounted on cover. The infrared sensor is equipped with a single LED that flashes green when the dryer is ready, solid green when the dryer is being used and red when the dryer is not ready for operation. Air outlet: Black plastic air nozzle assembly attached to the dryer.
No-touch operation: An infrared sensor monitors the activation zone; the unit uses a bi-colour LED for visual indication. The dryer will turn on when hands are held under air-outlet and in the designated drying alcove. When hands are removed from the path of the sensor, the dryer will stop. Electronic control has automatic shut-off approximately 1 minute after dryer turns on if an inanimate object is placed in the activation zone. The dryer motor will never be allowed to get hotter than 70°C.
208–240 VAC, 4–4.4 A, 1000 W, 50/60 Hz, single phase.
