Application

Provides protection against external threats to:

  • Temporary sporting events.
  • Emergency services and health.
  • Civic and public sectors.
  • Major event overlay.
  • Construction sites.
  • Infrastructure.
  • Areas where space is an issue, or where fencing is difficult to deploy.

A PAS68 version is available - consult manufacturer for information.

Description

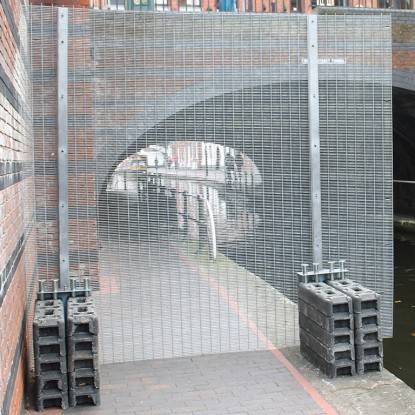

Lightweight, rapid deploy temporary fencing system.

Features and benefits:

  • Can be deployed rapidly to help protect an area, and does not need Moffett or Hiab transportation equipment to manoeuvre the blocks into place.
  • Recycled plastic blocks anchor the fence posts, and can be hand carried and placed in location.
  • Simple and easy to erect.
  • Highly secure when compared to other temporary fencing solutions.
  • Aesthetically pleasing, and does not impact the local environment.
  • High visibility, making the system suitable for use with CCTV camera systems.
  • Can be supplied with variable mesh panel infills.
  • Conforms to BS 1722, Part 14.

Applications:

Provides protection against external threats to:

  • Temporary sporting events.
  • Emergency services and health.
  • Civic and public sectors.
  • Major event overlay.
  • Construction sites.
  • Infrastructure.
  • Areas where space is an issue, or where fencing is difficult to deploy.

A PAS68 version is available - consult manufacturer for information.

General information
Finish

Galvanized and polyester powder-coated (PPC)

Specification data
Product Reference

RDS Lite

Panel/ mesh type

HiSec 358

76.2 mm x 12.7 mm pattern.

Height

1.8–2.4 m. Consult manufacturer and insert requirements.

Colour

Insert RAL colour requirement.

Gates -
Pedestrian

Required

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Not required

Vehicular

Required

Single or double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Not required

Accessories/ Other requirements

Not required

Topping enhancements

Standard product features

Finish:

Galvanized and polyester powder-coated (PPC).

Posts:

  • Type: 70 x 70 mm square hollow section (SHS).
  • Centres: 2750 mm.
  • Wires: 4 mm horizontal, 4 mm vertical.

Post to panel fixing:

Panels fixed to posts with full height 40 x 5 mm clamp bar, with through bolt fixings at 400 mm centres.

Block detail:

Ten recycled plastic blocks of 750 g are provided, mounted into special cages and pinned together.

Product Options

Panel/ mesh type:

With 4 mm vertical and horizontal wires. Others are available, including ArmaWeave, HiSec Super 6, Duo 6 or Duo 8 - consult manufacturer for information.

Gates:

Framed in a 100 x 50 mm rectangular hollow section (RHS) with Zaun HiSec mesh (or other mesh to match) bolted onto the frame, with a slide latch. Each gate features a rubber bump stop and two suitable gate posts. Vehicular gates also include drop bolts.
