Application

Compatible with Arborsystem products:

  • RootRain irrigation.
  • Cast iron/ fabricated tree grilles and guards.
  • Arborguy Root Ball Guying underground guying system.
  • RootSpace/ StrataCell system.

Description

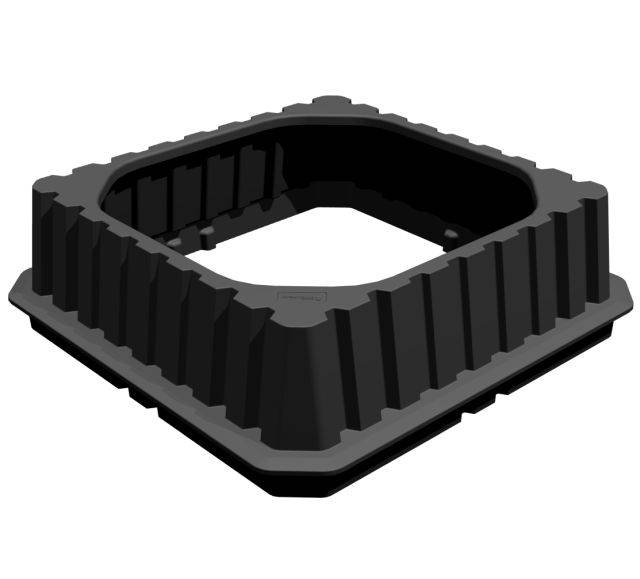

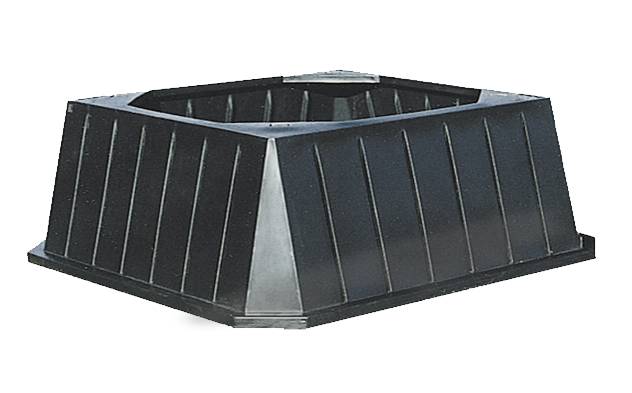

A range of rigid, one-piece tree root protection barriers, available in four sizes. Designed for the protection of pavements and hard landscaped areas, the ribbed RootDirector system prevents root swirl and diverts root growth downward and outward thus avoiding the unsightly and hazardous root damage so commonly seen in urban areas.

Features and benefits:

  • Designed for the protection of pavements and hard landscaped areas.
  • Manufactured from recycled 100% plastic.
  • The barrier is constructed as a one piece component resulting in a simple installation.
  • Prevents root swirl and diverts root growth downward and outward.
  • Encourages deep root growth.
  • Provides improved drought tolerance and enhanced tree stability through encouraging deeper rooting.

Applications:

Compatible with Arborsystem products:

  • RootRain irrigation.
  • Cast iron/ fabricated tree grilles and guards.
  • Arborguy Root Ball Guying underground guying system.
  • RootSpace/ StrataCell system.

General information
Color

Black

Features

One-piece ribbed construction

Finish

Natural

Material

Medium density polyethylene (MDPE)

Size

1050/1370 x 1050/1370 x 545 mm

Uniclass 2015 Rootball securing frames (Pr_45_63_64_72)
Specification data
Product Reference

RootDirector

Type

RD510A

425 x 595 x 310 mm.

RD640A

575 x 885 x 455 mm.

RD1050A

860 x 1370 x 860 mm.

RD1400A

1200 x 1805 x 1200 mm.

RD1000 - RSA

800 x 980 x 250 mm.

RD1500 - RSA

1300 x 1480 x 250 mm.

RF4-10A

1000 x 1000 x 400 mm.

RF4-12A

1200 x 1200 x 400 mm.

RF4-15A

1500 x 1500 x 400 mm.

RF4-20A

2000 x 2000 x 400 mm.

Irrigation facility

Not required

Required

Product Options

Irrigation facility:

Comprising air or water vents fitted in one or more corners of the barrier. The holes divert surface water to the base of the tree pit and provide additional ventilation to the root zone.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 4 2.0
Download now from NBS National BIM Library
