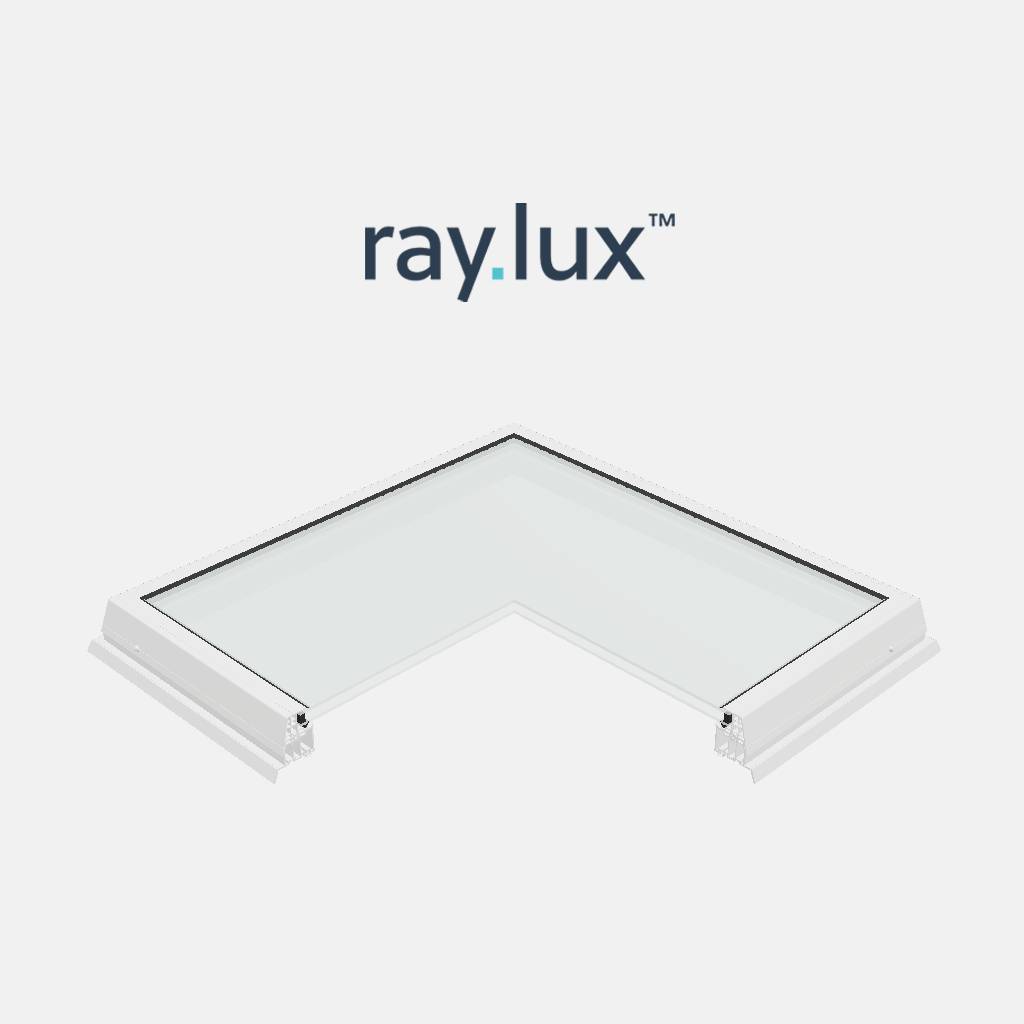

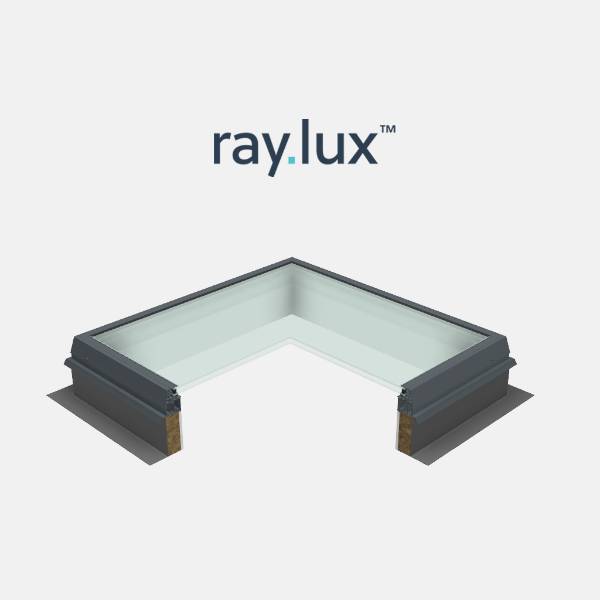

Ray.lux - Rooflight

Name: Ray.lux - Rooflight
Brand: Whitesales Rooflights
SKU: sYofqv2oHMMVEZ7PPMcvqU

Verified by manufacturer 5 months ago

Ray.lux - Electric

The ray.lux modular rooflight is a quality specification modular glass PVC-U framed rooflight, available in a wide range of sizes. Supplied as fixed, manual/ electrical opening.

Jump to:

+44 (0)1483 917580 Website

Application

Rooflight applications.

Description

The ray.lux modular rooflight is a quality specification modular glass PVC-U framed rooflight, available in a wide range of sizes. Supplied as fixed, manual/ electrical opening.

Features and benefits:

Good thermal and sound insulation properties.
Factory pre-glazed for easy installation.
Ventilation options available.
Compatible with builders and uPVC upstands.
14 stocked sizes for next day delivery.
Available in RAL 7016 (Anthracite Grey) and RAL 9010 (White).

ray.lux Glass units are manufactured from double glazed glass with a 6 mm toughened outer, warm edge spacer bar and 8.8 mm laminated inner pane. ray.lux Glass units are supplied in Clear glazing only.

Performance:

Thermal: Combined unit U-Value 1.26 W/m²K.
Non-fragility: Impact tested to CWCT Class 1.
Fire rating (tested according to EN 1873) : Class B–s2, d0.
Light transmittance: 76%.

General information

Color	Clear
Finish	Smooth
Material	PVC-U Glass
Shape	Square Rectangle
Length	500 mm 600 mm 700 mm 800 mm 900 mm 1000 mm 1100 mm 1200 mm 1300 mm 1500 mm 2000 mm 2100 mm 2200 mm 2300 mm 1600 mm Show more
Width	500 mm 600 mm 700 mm 800 mm 900 mm 1000 mm 1100 mm 1200 mm 1300 mm 1500 mm 1600 mm Show more
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

Product range	Glass Rooflights

Specification data - Framed rooflights

Form	Flat.
Size	- Manufacturer guidance Various sizes available, consult manufacturer for details and insert requirements.
Product performance	-
Fire performance	-
Reaction to fire	To EN 1873: Class B – s2, d0.
Whole window U-value	As low as 1.26 W/m²K.
Frame	-
Material	PVC-U.
Finish	-
Coating	Powder coated.
Colour	Anthracite Grey (RAL 7016). Standard White (RAL 9010).
Glazing or infill	-
Type	6 mm clear toughened outer, 16 mm argon filled warm edge spacer silicone bonded and 8.8 mm laminated inner pane with PVB interlayer.
Construction	Double-glazed only.
Colour	Clear.
Coating	UV-protected.
Integral kerb	PVC-U.
Operation	-
Type	Powered, electric. Guidance for specification option: Electrically opening units operated by 230 V slimline chain actuator, white powder coated fitted within rooflight aperture Power requirements (amps): 230 V.a.c / 25 W Stroke length: 200 mm Motor cable 6 core 2.5 m length as standard Cable requirements: four core minimum (six core if communication wires to be used for two tandem motors on same unit).
Control	CCU3 Control Unit - Standard Comfort Controls. Guidance for specification option: Control unit for one actuator or one group of actuators. Complete with radio receiver for remote operation. Inputs for Rain Sensor, Rocker Switch, Key Switch or Remote Transmitter. Maximum output of 6.3 amp to operate 230V AC actuators. Supplied complete with surface mount enclosure. See manufacturer's literature for further details. Premium Comfort Controls. Guidance for specification option: The Premium Comfort Control Unit and Weather Station is used to automatically ventilate your indoor environment. This ensures a controlled air exchange even if no one is at home. See manufacturer's literature for further details.

Air permeability	Class 2 to EN 1873.
Watertightness	Pass (without penetration of water) to EN 1873.
Impact resistance	CWCT Class 1 (or 2 dependent on size up to R19).
Glass units and whole product U-values/ G-values	As low as 0.60.
Light transmission	76% (maximum).
