This product is no longer available


Designed for inverted flat, green and blue roofs.


Thermal insulation board designed for inverted flat roofs, offering architects and specifiers thin extruded polystyrene (XPS) insulation with a design lambda of 0.028, and declared lambda 0.027 W/mK for the whole thickness range from 70–205 mm.

It is a high-performance, multipurpose polystyrene for the thermal insulation and frost protection of inverted flat, green and blue roofs. It is manufactured by an extrusion process, which results in a homogeneous, closed cell material structure and smooth surface skin (extrusion skin) which has many favourable material characteristics.

Features and benefits:

  • Excellent thermal insulation capability.
  • Waterproof; negligible moisture uptake.
  • Energy-saving.
  • Cost-efficient solution.
  • Environmentally friendly.
  • Resistant to high loads.
  • Simple installation.
  • High compressive strength.


Designed for inverted flat, green and blue roofs.

General information



Extruded polystyrene (XPS) and fibre cement


600 x 1250 mm (w x l)

Uniclass 2015
Extruded polystyrene (XPS) boards (Pr_25_71_63_29)Primary
Specification data - Extruded polystyrene (XPS) boards
Product Reference

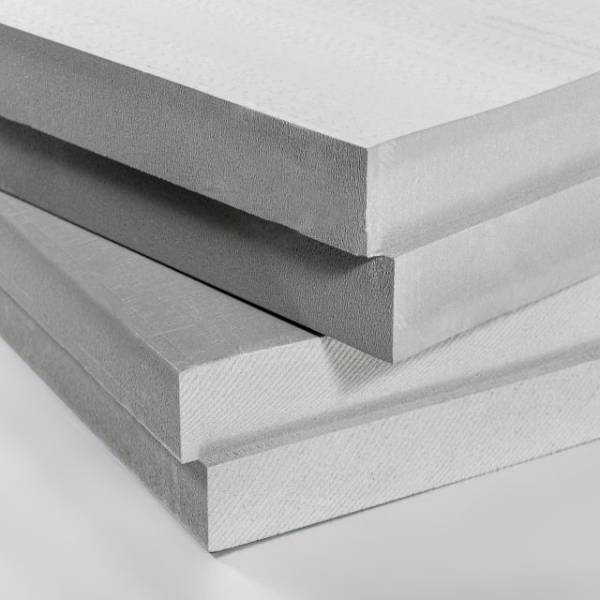

Ravatherm XPS X Ultra 300 SL

Fire performance

Euroclass E (to BS EN 13501-1)

Compressive strength (minimum) at 10% compression

300 kPa (to BS EN 826)

Thermal conductivity (maximum)

0.027 W/mK (to BS EN 13164)


70 mm

2.59 m²K/W thermal resistance.

80 mm

2.96 m²K/W thermal resistance.

105 mm

3.89 m²K/W thermal resistance.

130 mm

4.81 m²K/W thermal resistance.

145 mm

5.37 m²K/W thermal resistance.

175 mm

6.48 m²K/W thermal resistance.

205 mm

7.59 m²K/W thermal resistance.



Standard product features




Excellent thermal insulation capability.




Extruded polystyrene (XPS) and fibre cement.


600 x 1250 mm (w x l).

Technical characteristics:

  • Maximum compressive creep after 50 years (<2% deformation under stress σC, to BS EN 1606): 110 kPa.
  • E-modulus (typical, to BS EN 826): 12–20 MPa.
  • Long-term water absorption by total immersion (to BS EN 12087): <0.7% (after 28 days).
  • Long-term water absorption by diffusion (to BS EN 12088): 50–80 mm: ≤2%; ≥80 mm: ≤1%.
  • Water vapour diffusion resistance factor, μ (to EN ISO 10456): 150.
  • Freeze-thaw, after 300 cycles (to BS EN 12091): ≤1%.
  • Dimensional stability under specified temperature (70°C) and humidity conditions (90% rh) (to BS EN 1604): ≤5%.
  • Deformation under specified compressive load and temperature conditions (to BS EN 1605): ≤5%.
  • Linear thermal expansion coefficient: 0.07 mm/mK.
  • Maximum service temperature: -50/ +75°C.
  • Capillarity: 0.
  • Typical density (to BS EN 1602): 32 kg/m³.
  • Tensile strength (to EN 1607): 300 kPa.
