RASCOtec Crack Inducer
Verified by manufacturer 2 months ago
A plastics section with central injection channel used for the controlled formation and waterproofing of cracks in concrete.
Application
RASCOtec Crack Inducers may be incorporated in any building element to allow the uninterrupted casting of concrete bays of unlimited size.
Description

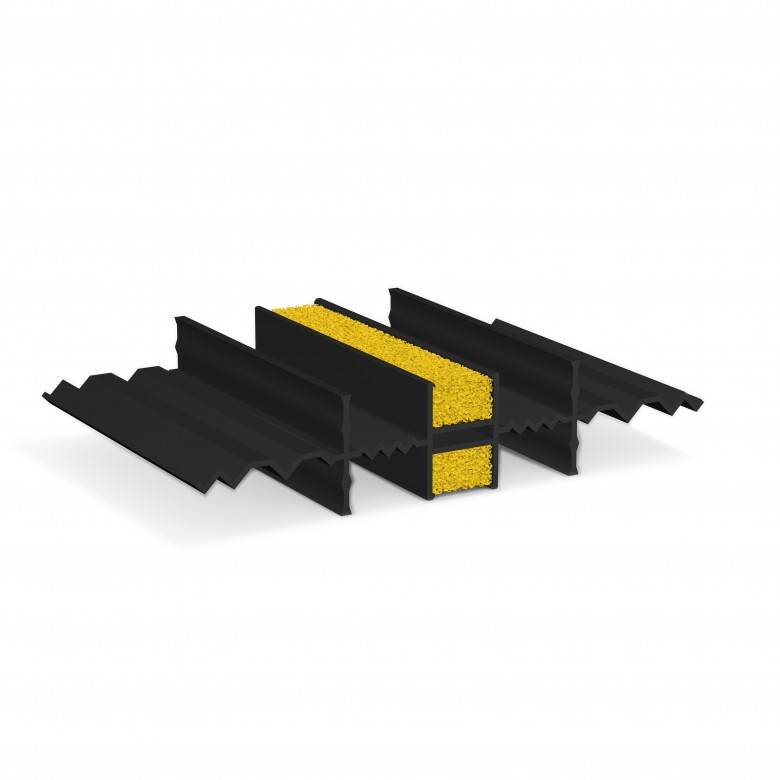

The RASCOtec Crack Inducer is a plastic section with a central injection channel used for the controlled formation and waterproofing of cracks. The waterproof barrier is created through injection of the RASCOtec Crack Inducer.
Features and benefits:
- Controlled shrinkage cracks.
- May be widened to suit requirements with RASCOtec Extension board (composite panel).
- May be worked as wood.
- Weldable.
- Weather-independent installation.
General information
Color | Black Yellow |
Material | High density polyethylene (HDPE) Polyester Polypropylene |
Shape | Rectangle |
Length | 2500 mm |
Width | 200 mm |
Height | 40 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | E40/250 Inserted strip crack inducers E40/250 Inserted strip crack inducers |
Specification data - Plastics strip crack inducers
Configuration | Plastics section with central injection channel. |
Dimensions | |
Thickness | 40 mm. |
Depth of section | Element thicknesses up to 400 mm: From reinforcement to reinforcement.Element thicknesses exceeding 400 mm: Widen base unit to cover at least ⅔ of element thickness. |
Accessories | Not required. RASCOtec Extension board. Guidance for specification option: For widening the RASCOtec Crack inducers to suit requirements. Dimensions: 2500 x 1000 x 3 mm (L x W x H). RASCOtec Crack inducer B13, onesided enlargement. RASCOtec Crack inducer B15, onesided enlargement. RASCOtec Crack inducer B18, onesided enlargement. |
Integral accessories | RASCOtec Feeder cap, RASCOtec Connector cap, RASCOtec Target, RASCOtec Stopper cap, RASCOfix Cable ties, Feeder hose 18 mm. |
Sustainability data
Country of product manufacture | Switzerland |
Material | High density polyethylene (HDPE) Polyester Polypropylene |
