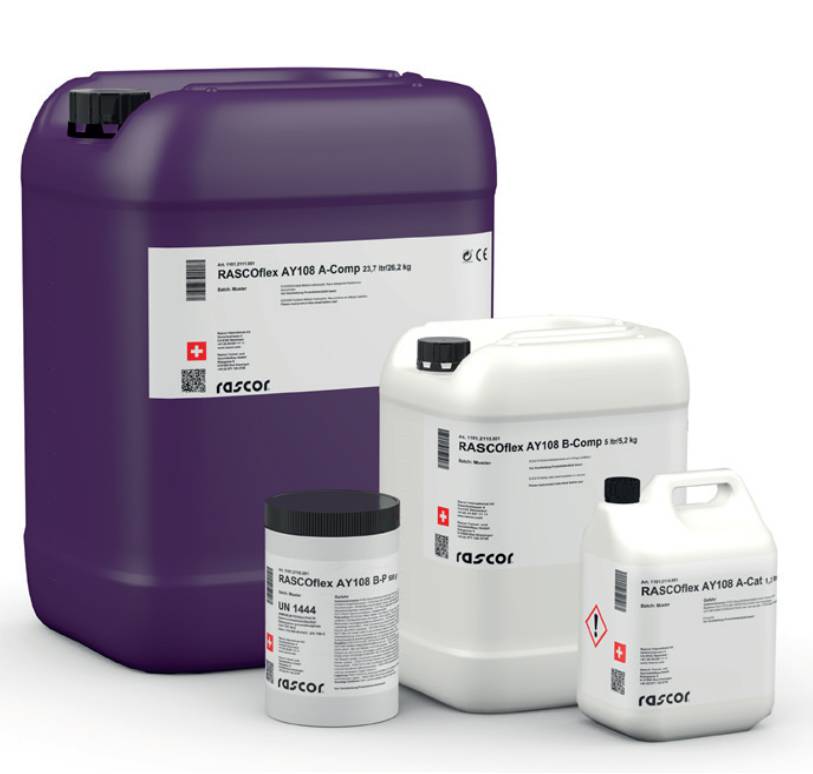

RASCOflex AY108 Injection Resin
Verified by manufacturer 2 months ago
EPD
Certificate type
An acrylic resin grout for preventive and remedial waterproofing.
Application
RASCOflex AY108 is primarily used for the remedial waterproofing of hairline cracks, wide cracks and joints, even under hydrostatic pressure. Pre-grouting is not necessary.
It is also used in conjunction with the RASCOtec injection systems for preventive waterproofing.
Description
RASCOflex AY108 is a versatile, environmentally compatible, polyacrylate-based, modified two-component injection grout.
Features and benefits:
- Stabilized, highly concentrated gel.
- Can be used for dry to heavily water-bearing cracks and construction joints.
- Very high reactive and reversible swelling action.
- Sealing achieved by swelling pressure on contact with water.
- No adhesion required to joint/ crack faces (injection possible even in case of partial soiling).
- High frost resistance (in its end condition).
- Approved for drinking water.
- Passive corrosion protection.
- High chemical resistance.
- Also suitable for underwater injections (saltwater or freshwater).
General information
Color | Purple |
Material | Acrylic |
Shape | Formless |
Warranty description | 25 year |
Uniclass | |
CAWS | C42/340 Crack/ void sealing grouts |
Specification data - Injection grouts
Grout mix | Polyacrylate based, modified two-component injection grout. |
Standards | To EN 1504-5. |
Fire resistance | To DIN 4102-1, Class B2. Guidance for specification option: Normal-flammability. |
Viscosity | Dynamic viscosity at 23°C to DIN EN ISO 3219, 3–8 mPas (EMPA); Apparent viscosity at 23°C to DIN EN ISO 2555, 9–17 mPas. |
Swelling capability | 30% after 72 hours. |
Application temperature | 0–60°C. Guidance for specification option: Down to -5°C in ice-free cracks and joints. |
Sustainability data
Material | Acrylic |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.82 kg CO₂ eq/m³ |
Third party certifications
Third party certifications
EPD
Declaration of compliance with EPD (Environmental Product Declaration)
