Radon Sump

Radon Sump

Cordek Ltd

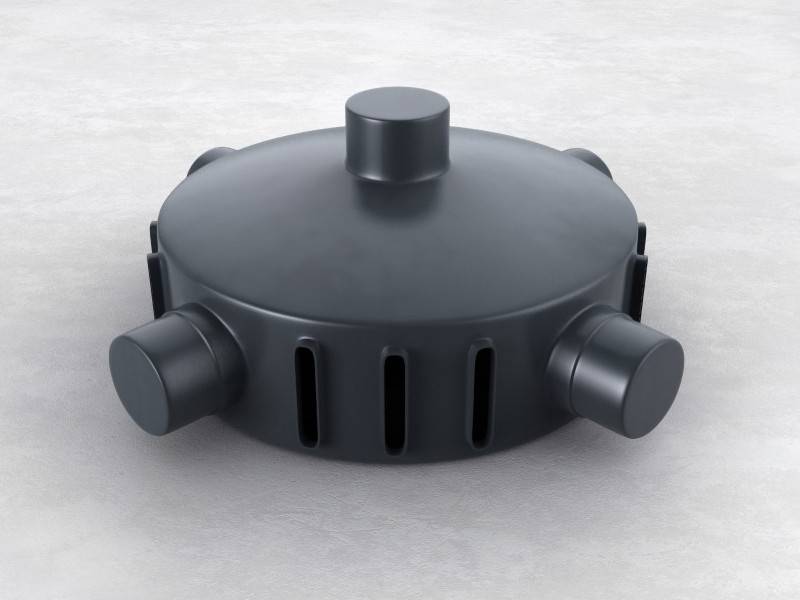

Radon sump forming the collection and extraction point for radon gases that accumulate beneath a building in a radon effected area.

Jump to:
+44 (0)1403 799600 www.cordek.com
Application

For radon gases beneath buildings within radon affected areas.

Description

An extraction point for radon gases beneath buildings within radon affected areas. If a radon sumpis positioned within a permeable granular layer beneath a ground floor slab and subsequently connected to an extract fan, then the penetration of hazardous radon gas into the building is minimized. Cordek also provide a range of additional components including membranes, DPC's and vent outlets to provide a solution to the issues posed by radon gas to new constructions.

Features and benefits:

  • Can reduce the risk posed by radon gas by minimizing the pressure beneath the building.
  • Robust polypropylene construction for positioning beneath ground slab constructions.
  • Can be used in conjunction with Cordek Radon Membrane and associated accessories to provide ‘full’ radon protection.
  • Installed during construction for ‘activation’ post construction if required.

Application:

For radon gases beneath buildings within radon affected areas.

General information

Color

Black

Features

Can reduce the risk posed by radon gas by minimizing the pressure beneath the building

Material

Polypropylene

Shape

Circular

Size

510 x 510 x 240 mm

Uniclass 2015

Pr_65_52_25_23 Depressurization sumpsPrimary

CAWS

D21/370 Plastics depressurization sumps

D21/40 Plastics depressurization sumps

Specification data - Depressurization sumps

Product Reference

Radon Sump

Sump height (nominal)

240 mm

Number of inlets/outlets:

5

Inlets/outlets diameter

110 mm

Serviceable area (maximum)

>250 m²

Standard product features

Colour:

Black.

Features:

Can reduce the risk posed by radon gas by minimizing the pressure beneath the building, robust polypropylene construction for positioning beneath ground slab constructions and can be used in conjunction with Cordek Radon Membrane and associated accessories to provide ‘full’ radon protection. Installed during construction for ‘activation’ post construction if required.

Material:

Polypropylene.

Shape:

Circular.

Size:

510 mm wide x 240 mm deep.

Country of origin:

United Kingdom.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 6 2.0
IFC
IFC2X3 2 1.3
Download now from NBS National BIM Library
