Quoins
Application

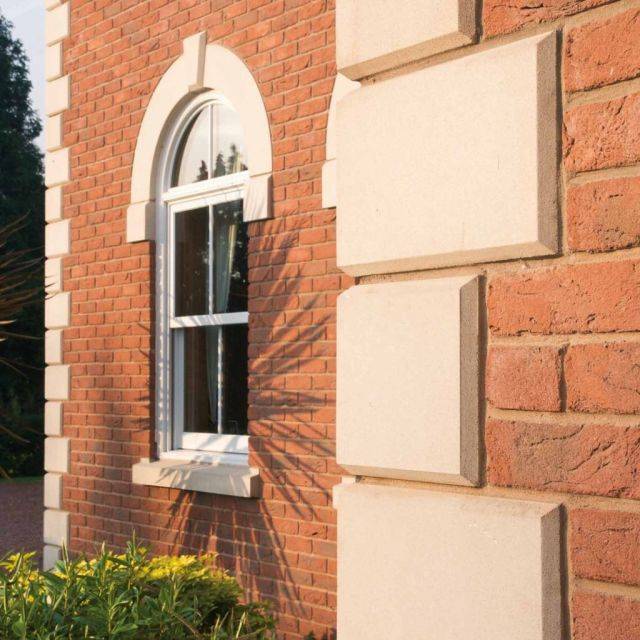

Used for both structural and visual purposes, quoins are a way to frame a building, adding another layer of detail that contrasts the brickwork. Manufactured to the highest quality, they are suitable for new build projects, extensions and renovations.

Description

Cast stone quoins available in standard designs to suit most applications. Custom-made designs available on request.

Material:

- Haddonstone (Semi-dry cast limestone):

High quality semi-dry cast stone, consisting of over 50% limestone aggregate. With a surface texture similar to Portland Stone, Haddonstone is regularly used alongside or as an alternative to natural stone.

- TecLite (fibre-reinforced):

TecLite is a high quality GFRC (Glass Fibre Reinforced Concrete). Although it closely resembles cast stone in appearance, the use of thin wall construction means the component weight is significantly reduced when compared with similar Haddonstone and TecStone pieces. Its high strength to weight ratio makes TecLite suitable for retro-fit, renovation and timber frame build projects.

- TecStone (wet cast limestone):

High quality wet cast stone, comprising over 60% natural limestone aggregate. Denser than the Haddonstone material, TecStone is acid etched as standard to provide an attractive appearance similar to a finished natural stone. Designed to meet demanding performance criteria and can incorporate structural reinforcement and cast-in fixings. TecStone is the preferred material for architectural projects where structural performance is required.

Applications:

Used for both structural and visual purposes, quoins are a way to frame a building, adding another layer of detail that contrasts the brickwork. Manufactured to the highest quality, they are suitable for new build projects, extensions and renovations.

General information

Material

Haddonstone (semi-dry cast limestone)

TecLite (fibre-reinforced)

TecStone (wet cast limestone)

Uniclass 2015

Pr_20_93_52_13 Cast stone masonry unitsPrimary

CAWS

F22/110 Cast stone

H40/130 Proprietary GRC components

Specification data - Cast stone masonry units

Product Reference

Cast Stone Quoins

Type

Q110

Q170

Q180

TLQ120 Surface-Fixed Quoin

Bespoke

Consult manufacturer for details and insert requirements.

Material

Haddonstone (semi-dry cast limestone)

TecLite (fibre-reinforced)

TecStone (wet cast limestone)

Colour

Bath 02

Ivory Limestone IL

Portland 01

Bespoke

Insert requirement for colour.

Accessories

None

Cast-in fixings

Insert requirements for cast fixings.

Cast-in lifting sockets

Insert requirements for lifting sockets.

Standard product features

Compressive cube strength after 28 days (minimum):

  • Haddonstone: >35 MPa.
  • TecLite: >45 MPa.
  • TecStone: >45 MPa.

Both materials exceed the requirements of the United Kingdom Cast Stone Association (UKCSA) specification and comply with the requirements of BS 1217, BS 5642-2+ A1 and BS EN 13198.

Haddonstone:

  • Material density: 2150 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >35 N/mm² (MPa).
  • Aggregate size: 0–3 mm continuously graded.
  • Finish: Ex-Mould (no finishing required).
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

TecLite:

  • Material density: 2000 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >45 N/mm² (MPa).
  • Aggregate: Grade 60 dry silica sand.
  • Finish: Light acid etched.
  • Fire rating: Non-flammable, non-combustible, does not give off toxic gases; reaction to fire: Euroclass A1.
  • Handling reinforcement: Glassfibre reinforcement.
  • Cast-in lifting sockets available: Not applicable.
  • Cast-in fixings available: Yes (on request) - stainless steel to BS EN 1090 and CE marked.
  • Tensile (pull-out) test (Results with M12 x 40 mm cast in bent end socket): Proof load 2 kN: Ultimate failure load: 17 kN.
  • Structural reinforcement available: No (not applicable to GRC).

TecStone:

  • Material density: 2350 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >45 N/mm² (MPa).
  • Aggregate size: 0–10 mm continuously graded.
  • Finish: Light acid etched.
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

Product Options

Type:

- Size:

  • Q110: 464 x 219 x 352 mm.
  • Q170: 340 x 215 x 228 mm.
  • Q180: 327 x 215 x 215 mm.
  • TLQ120 Surface-Fixed Quoin: 433 x 352 x 219 mm.
