Quartzglide 3 - Pocket Sliding Glass Door - Pocket Door, Sliding, Glass, Acoustic
Verified by manufacturer 18 hours ago
Single-glazed frameless glass door offering up to 31 dB acoustic isolation.
Application
Open-plan commercial offices and workplace environments.
Description
Where acoustic privacy in conjunction with frameless glass is required, Quartzglide 3 is the solution.
Features and benefits:
- Combined with the Apton Quartz double-glazed system, Quartzglide 3 provides the highest level of acoustic performance.
General information
Color | Clear Silver Other |
Finish | Powder-coated Satin Anodized |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/460 Frameless glass doors L20/520 Sliding doors L20/525 Sliding pocket doors L20/65 Sliding pocket doors |
Specification data - Sliding door and partition sets
Classification data | |
Performance | Sound-resistant. |
Arrangement | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Track system | Aluminium, top-hung. |
Door leaves | |
Construction | 100 x 43 mm aluminium profiles. |
Finish and colour | Polyester powder coat. Guidance for specification option: Insert requirements; contact manufacturer for more details. Satin anodized. Special anodized finish. Guidance for specification option: Inquire with manufacturer for special anodized finish options. |
Operation | Manual. |
Hardware | Manufacturer guidanceA wide range of ironmongery can be supplied with QuartzGlide 3. Insert requirements; consult with manufacturer for details. |
Accessories | Soft closing mechanism. |
Standards | To BS 5234, BS 6180 and BS 6399. Manufacturer guidanceStructural stability. |
Height | Guidance for specification option: Available height up to 3000 mm; insert requirements or drawing reference number. |
Glass thickness | 10–12.8 mm. |
AcousticRating | To BS EN ISO 717, up to 31 dB (Rw). Guidance for specification option: Sound measurements to BS EN ISO 140. |
Glass type | Toughened. Laminated. Manufacturer guidanceAvailable 'Switch Glass' option; contact manufacturer. |
Manifestation | Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for details on optional manifestations and graphics. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

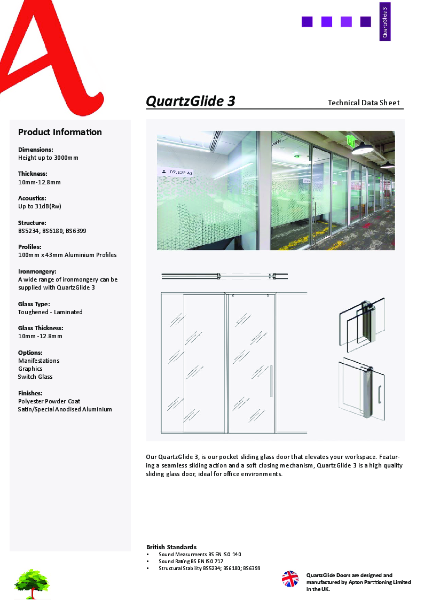

QuartzGlide 3 Data Sheet
