Quadra+ Lift Shaft / Escape Door

Quadra+ Lift Shaft / Escape Door

Verified by manufacturer 3 months ago

SELO

Pre-hung lift shaft access concealed riser doorset with steel frame and door leaf.

Jump to:
+44 (0)203 8800339 www.selo-uk.com

Application

  • Predominantly for use with shaft-wall and drywall construction.
  • Can be fitted to either a steel or timber stud wall construction.
  • Lift shaft Quadra must be fitted with an EN 81-20 compliant electrical safety switch, to be supplied and installed by the customer.

Description

Fully pre-hung, concealed riser doorset with steel frame and door leaf.


Features and benefits:

  • Integral concealed quick-release pivot door hinge.
  • Ready to install, with all ironmongery already fitted.
  • Fire resistance available of up to two hours.
  • Compliant with European product standards EN 81-20 and EN 81-50.

General information

Color

RAL, colour.

-

Finish

Anti-microbial, infection control powder-coat, whiteboard powder-coat and wallpaper also available as a special finishes, on request.

Smooth

Pre-finished.

Textured

For use when overpainting or wallpapering on site. Anti-microbial, infection control powder-coat, whiteboard powder-coat and wallpaper also available as a special finishes, on request.

Material

Steel

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Carbon steel doorsets

Third-party certification

FD120S; BMT/CNA/F15213 Revision C.

Fire certification to BS EN 1634-1 (E120Sa).

Configuration

Single leaf, single action.

Doorset size

Insert requirements.

  • Access door to well of lift shaft: 600 x 2000 mm minimum, 950 x 2700 mm maximum.
  •  Lift shaft emergency door: 500 x 1800 mm minimum, 950 x 2700 mm maximum.
  •  Access door to pulley room: 600 x 1400 mm, 950 x 2700 mm maximum.
  • Where a leaf size is specified, tolerances will be added by the manufacturer. Consult manufacturer for information.

-

Performance

-

Fire resistance

-

Integrity

To BS EN 1634-1:2014, 120 minutes.

Pre-intumesced fire stopping.

Acoustic performance

30 dB.

35 dB.

36 dB.

39 dB.

Frame

-

Material

Steel.

Perimeter seals or inserts

Acoustic seal to frame.

Smoke seal to frame.

Finish

-

Coating

Polyester powder-coated.

Colour

Insert RAL colour.

-

Door leaf

-

Thickness

44 mm.

Material

Steel.

Finish

-

Coating

Anti-microbial, infection control powder-coat.

Special finish, on request.

Wallpaper.

Special finish, on request

Whiteboard powder-coat.

Special finish, on request.

Texture

Smooth.

Pre-finished.

Textured.

For use when overpainting or wallpapering on site. Textured finish can be emulsion painted over to match in with the wall.

External colour

RAL colours available. Consult manufacturer and insert requirements.

-

Internal colour

RAL colours available. Consult manufacturer and insert requirements.

-

Hardware

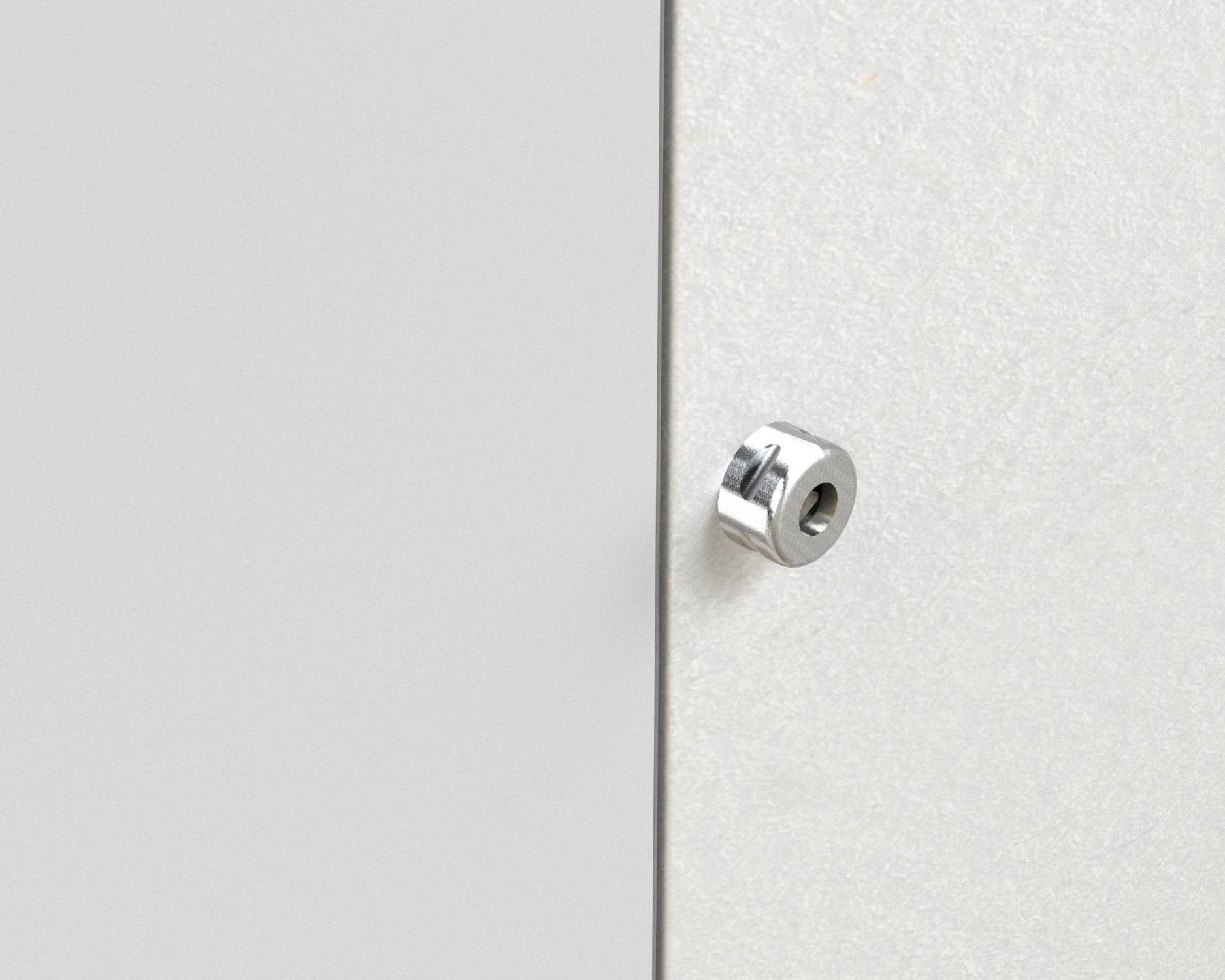

Quick-release pivot door hinge, triangle key lock with lock-only external handle / internal emergency unlock handle

Accessories

Not required.

Leading edge FDKL self-adhesive sign.

Electrical

Must be fitted with an EN 81-20 compliant electrical safety switch.

To be supplied and installed by the customer.

Weight

25 kg/m².

Environmental information

Contains Red List materials

No

Country of product manufacture

United Kingdom

Embodied carbon

2.43 kg·CO₂e/kg

Recyclability

Metal 90 %; any other 75%.

-

Recycled content

90 %

Literature

Emergency Escape / Access & Inspection Doors - Quadra Lift Shaft
