Pyroplast® Wood T (Transparent) - Water-Based Fire Protection Coating
Verified by manufacturer 14 days ago
Transparent water-based fire protection coating system for wood.
Application
- Used as reduction of ignitability of softwood and hardwood ≥10 mm thickness and other timber derivatives, e.g. plywood, chipboard, fibre insulation board, hardboard and also on veneering ≥13 mm thickness.
- Insulates against heat, checks fire, prevents propagation of fire and spread of flame and diminishes flue gas temperatures.
- It should not be used in areas of high humidity, heat sources or on surfaces where significant physical impact is likely such as floors, stairs, etc.
Description
A one-pack, ecological and efficient water-based, transparent fire protection coating which forms a carbon char under the effect of heat.
It is thoroughly tested to provide spread-of-flame protection and delays the inflammation of interior natural wood and wood derivates.
General information
Color | Clear |
Material | Water-based |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M60/16 Decorative wood stain/ varnish/ preservative M60/18 Special coating M60/195 Special coating M60/175 Protective coating M60/160 Decorative woodstain/ varnish/ preservative |
Specification data - Flame-retardant coatings
Classification data | |
Reaction to fire rating (indicative) | Tested to BS EN 13501-1. |
Solvent | Water-based (one-pack). |
VOC content (maximum) | 40 g/L determined practically in accordance with Protective Coatings Directive of German Paint Industry Association (VdL-RL 04). 41 g/L calculated from formulation to satisfy EC Solvent Emissions Directive. 31 g/kg calculated from formulation to satisfy EC Solvent Emissions Directive (UK). |
Opacity | Transparent. |
Colour | None (clear). |
Finish | Manufacturer's standard. |
Primer | Pyroplast® Wood T Primer. Not required. |
Intumescent coat | Pyroplast® Wood T. |
Top coat | Pyroplast® Wood Top T. |
Application method | Airless spray, brush or roller. |
Application temperature | 10–40°C. |
Drying time | Pyroplast® Wood T Primer, to touch: 30 minutes; to handle: 2 hours. Pyroplast® Wood T plus Pyroplast® Wood Top T, to touch: 2 hours; to handle: 24 hours; to recoat: 48 hours (with top coat). Manufacturer guidanceAt +20°C and 60% relative humidity. |
Flash point | Pyroplast® Wood T and Primer: >101°C. Pyroplast® Wood Top T: ~30°C. |
Density | Pyroplast® Wood T Primer: 1.0 kg/L. Pyroplast® Wood T: 1.3 kg/L. Pyroplast® Wood Top T: 0.95 kg/L. |
Testing | Independently fire tested and approved to major European and national standards including: EN 13501-1 (ref: K-3067/776/14-1); BS 476-6 (ref: 264398), part 7 (ref: 264397); DIN 4102-1 (ref: Z-56.313-91). • ASTM E84-08a (ref: 01.15209.01.077b) |
Sustainability data
Material | Water-based |
Literature

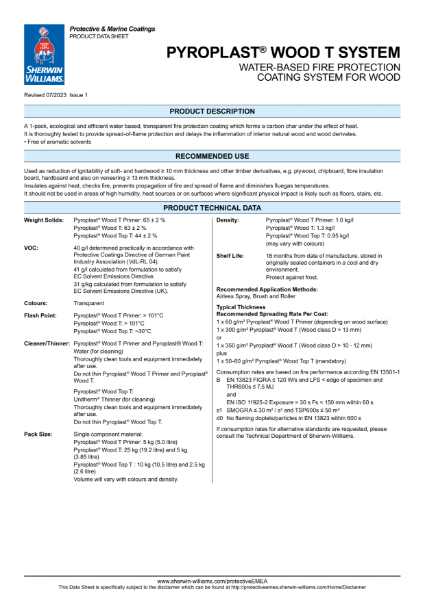

Pyroplast® Wood T Product Data Sheet
